1-way Tracking Sensor Module Infrared Probe Intelligent Car Obstacle Avoidance TCRT5000 Black and White Line Detection

color:red,size:xxl

Subtotal: US$ 0

View My Cart

Checkout

Detail

- Product Name: 1-way Tracking Sensor Module Infrared Probe Intelligent Car Obstacle Avoidance TCRT5000 Black and White Line Detection
- Item NO.: TCRT5000Black
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Other Electronic Accessories > Intelligent Car Accessories
- Tag: 1-way , Tracking Sensor Module , Infrared Probe , Intelligent Car Obstacle Avoidance , TCRT5000 , Black and White Line Detection
- Creation Time: 2024-03-28

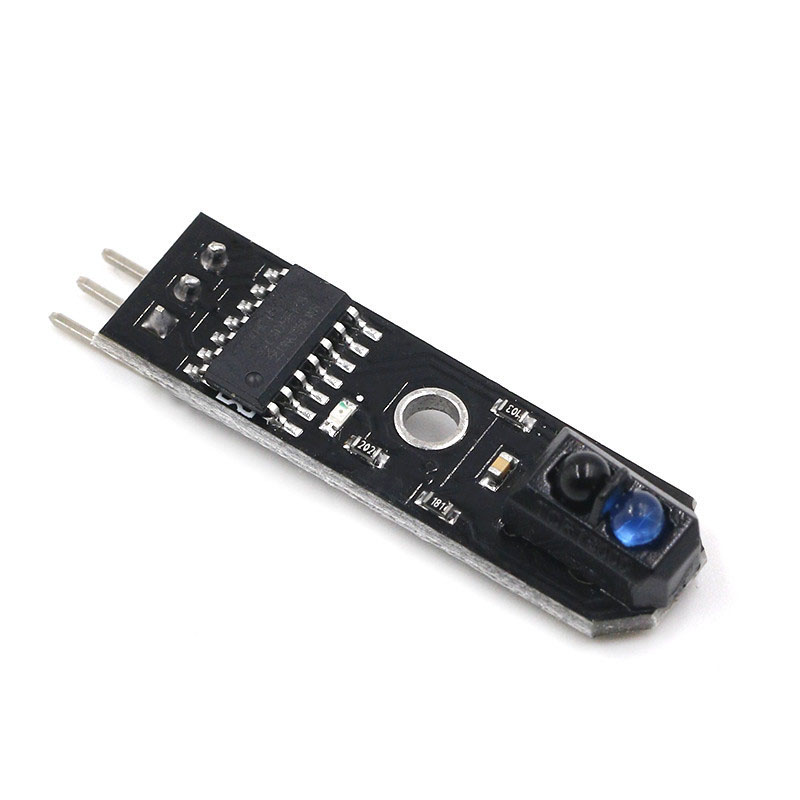

TCRT5000 Tracking Sensor Module

Product Usage:

1. Watt-hour meter pulse data sampling

2. Fax machine shredder paper detection

3. Obstacle detection

4. Black and white line detection

Product Introduction:

1. Adopt TCRT5000 infrared reflection sensor

2. Detection reflection distance: 1mm~25mm applicable

3. Working voltage: 5V

4. Output form: digital signal (0 and 1)

5. Equipped with fixed bolt holes for easy installation

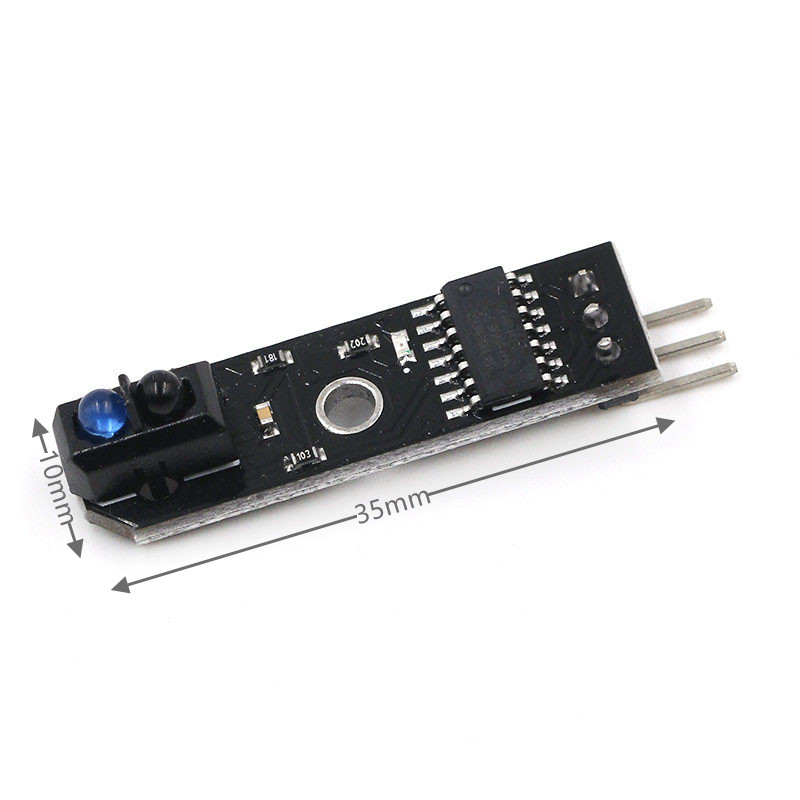

6. Small board PCB size: 3.5cm x 1cm

7. Unit weight: 4.5g

Function Introduction:

The infrared emitting diode of the TCRT5000 sensor continuously emits infrared rays. When the emitted infrared rays are not reflected back or are not reflected back, but the intensity is not strong enough, the infrared receiving tube is always turned off. At this time, the output terminal of the module is at a low level, and the indicator diode is always turned off; When the detected object appears within the detection range, the infrared ray is reflected back with sufficient intensity, and the infrared receiver tube is saturated. At this time, the output of the module is at a high level, indicating that the diode is lit.

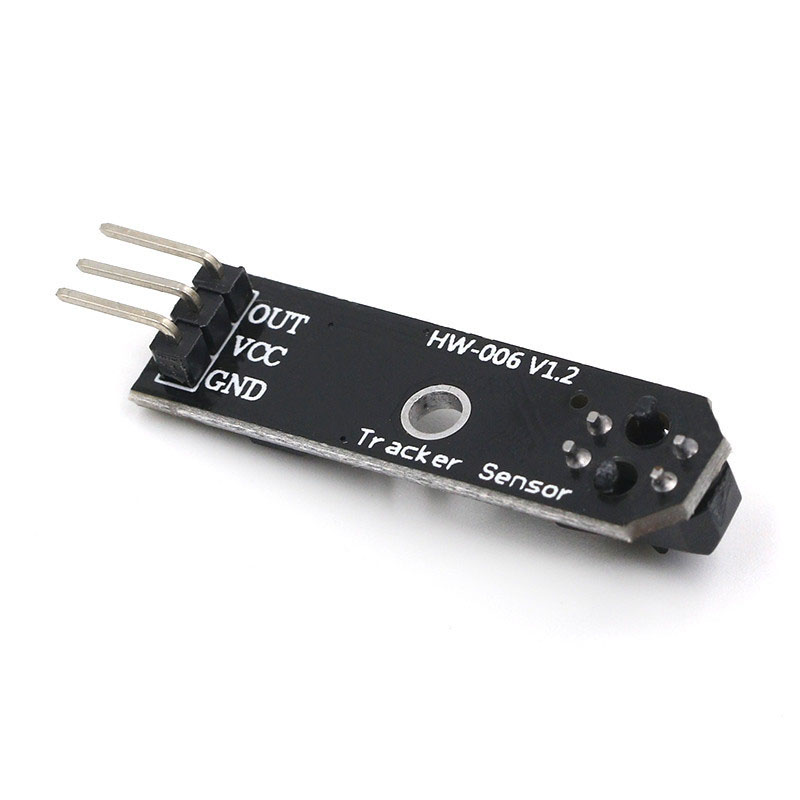

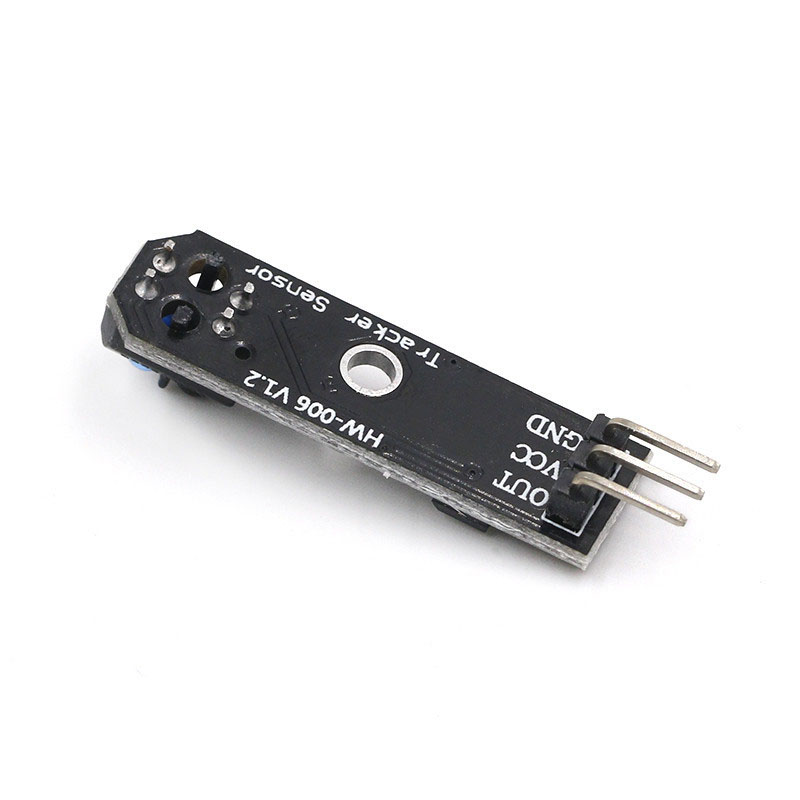

Wiring Method:

1. VCC: Connected to the positive pole of the power supply (5V)

2. GND: connected to the negative electrode of the power supply

3. OUT: High/low level switching signal (digital signals 0 and 1)

Shipping List:

One TCRT5000 tracking module (tested, packaged in electrostatic bags)
