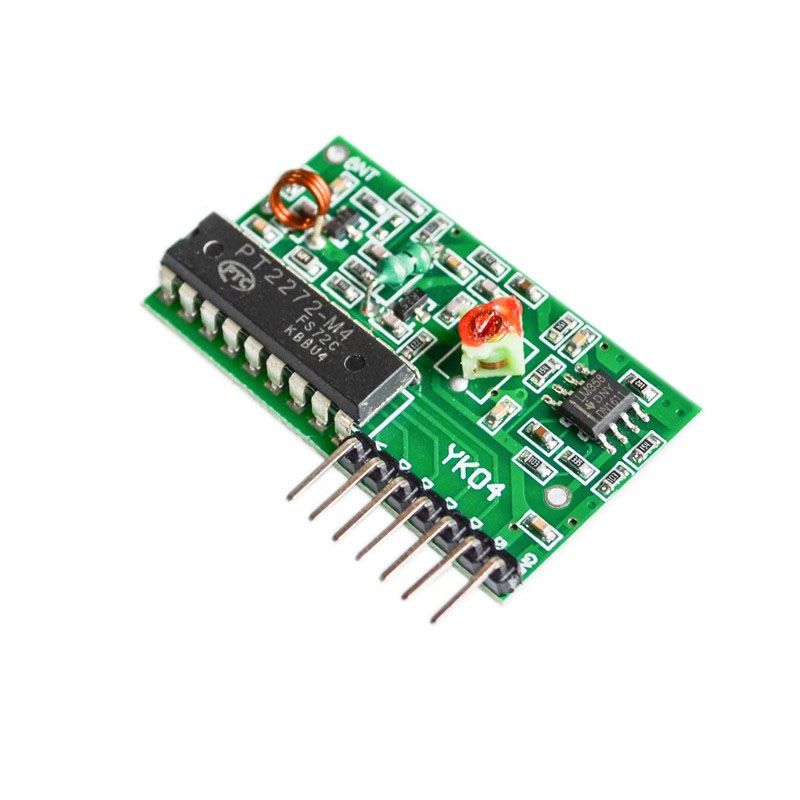

2262/2272 Four Way M4 Non Locking Receiving Board 315M Wireless Remote Control Board Without Battery

color:red,size:xxl

Subtotal: US$ 0

View My Cart

Checkout

Detail

- Product Name: 2262/2272 Four Way M4 Non Locking Receiving Board 315M Wireless Remote Control Board Without Battery
- Item NO.: 2262 2272
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Wireless Module
- Tag: 2262/2272 Four Way M4 Non Locking Receiving Board
- Creation Time: 2024-04-17
Product Information:

Working voltage (V): DC5V

Static current (mA): 4.5MA

Modulation method: amplitude modulation (OOK)

Working temperature: -10 ℃~+70 ℃

Receiving sensitivity (dBm): -105DB

Working frequency (MHz): 315M frequency

Encoding method: pad coding (fixed code)

Working mode: M4 (jog: press and hold to output, release to stop output)

Size (LWH): 41 * 23 * 7mm

Product features:

The super regenerative receiving module adopts an LC oscillation circuit, which includes amplification and shaping. The output data signal is a decoded high-level signal, which is extremely convenient to use and cheap, so it is widely used. With four decoding outputs (which can also be changed to six jog or interlock outputs), easy to use; Easy frequency debugging and short supply cycle; Good consistency in product quality and high cost-effectiveness.

The receiving module has a wide receiving bandwidth, usually ± 10MHz, and is usually set at 315MHz or 433.92MHz when leaving the factory (if there are special requirements, the frequency can be adjusted, and the frequency adjustment range is 266MHz~433MHz.). The receiving module generally uses DC5V power supply, and the voltage range can be adjusted if there are special requirements.
