Home>Electronic Modules>Wireless Module>5V Super Regenerative Receiving Module/Wireless Receiving/Wireless Transmitting Module 433/315MHZ
5V Super Regenerative Receiving Module/Wireless Receiving/Wireless Transmitting Module 433/315MHZ

5V Super Regenerative Receiving Module/Wireless Receiving/Wireless Transmitting Module 433/315MHZItem NO.: 433MHz Super Regenerative Module

US$ 2.65
Model
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
5V Super Regenerative Receiving Module/Wireless Receiving/Wireless Transmitting Module 433/315MHZ
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy

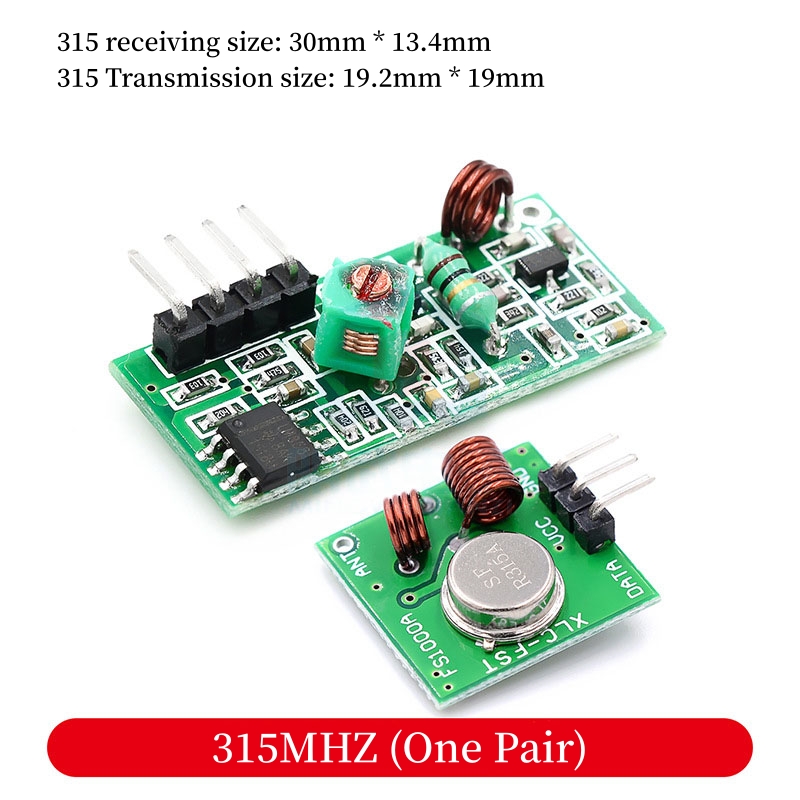

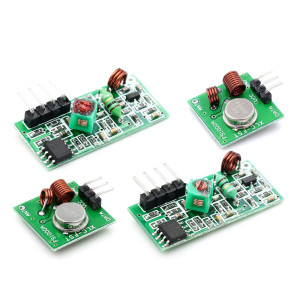

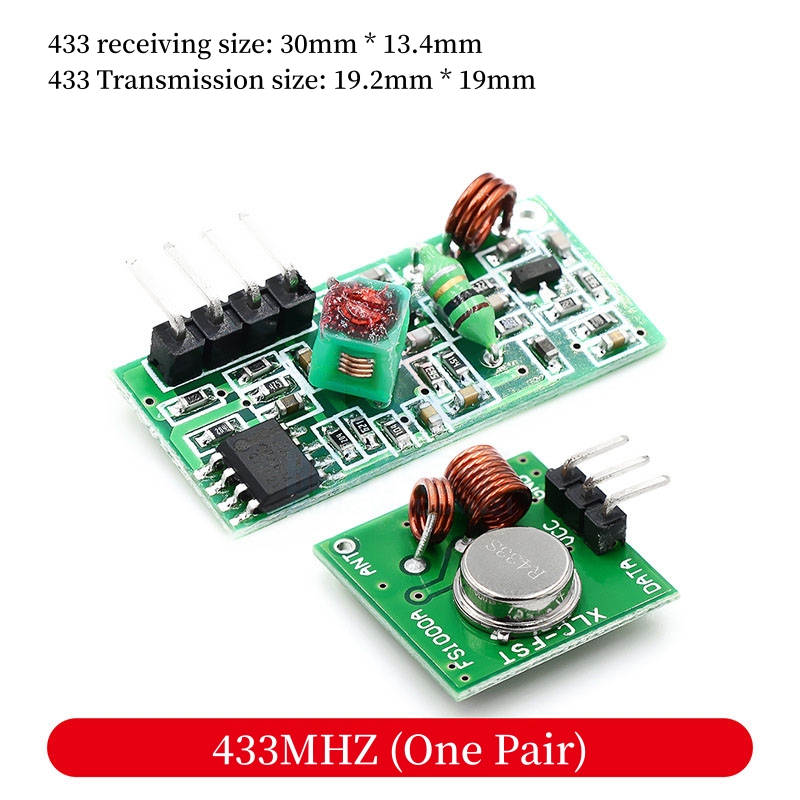

  • 433/315MHZ Super Regenerative Receiving Module

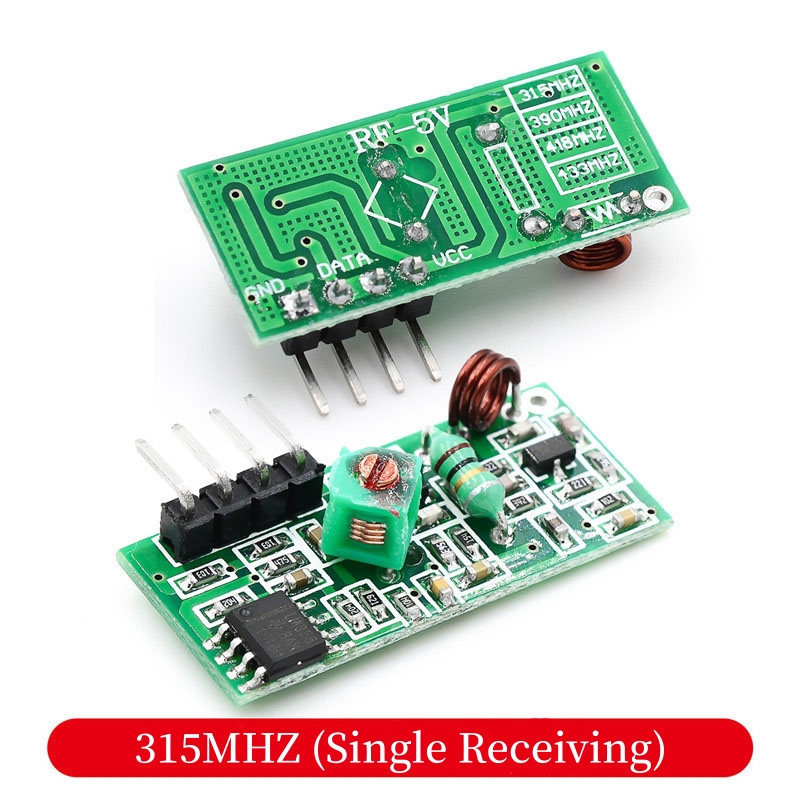

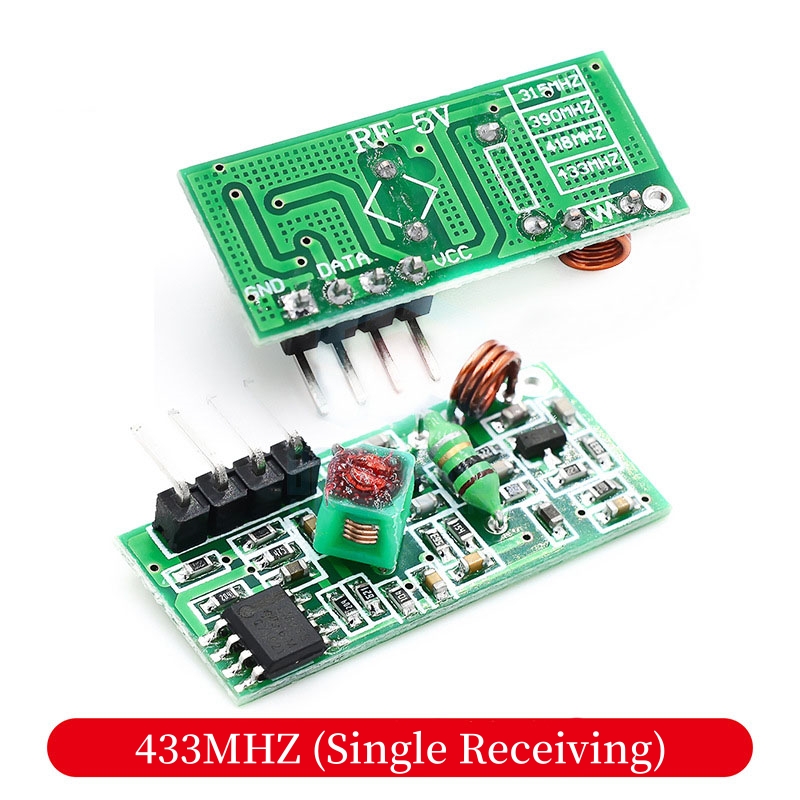

    Technical Parameters of the Receiving Module:



    ● Product model MX-05V

    ● Working voltage: DC5V

    ● Static current: 4MA

    ● Receiving frequency: 433.92MHz

    ● Receiving sensitivity: -105DB

    ● Size: 30 * 14 * 7mm

    ● External antenna: 32CM single core wire, wound in a spiral shape

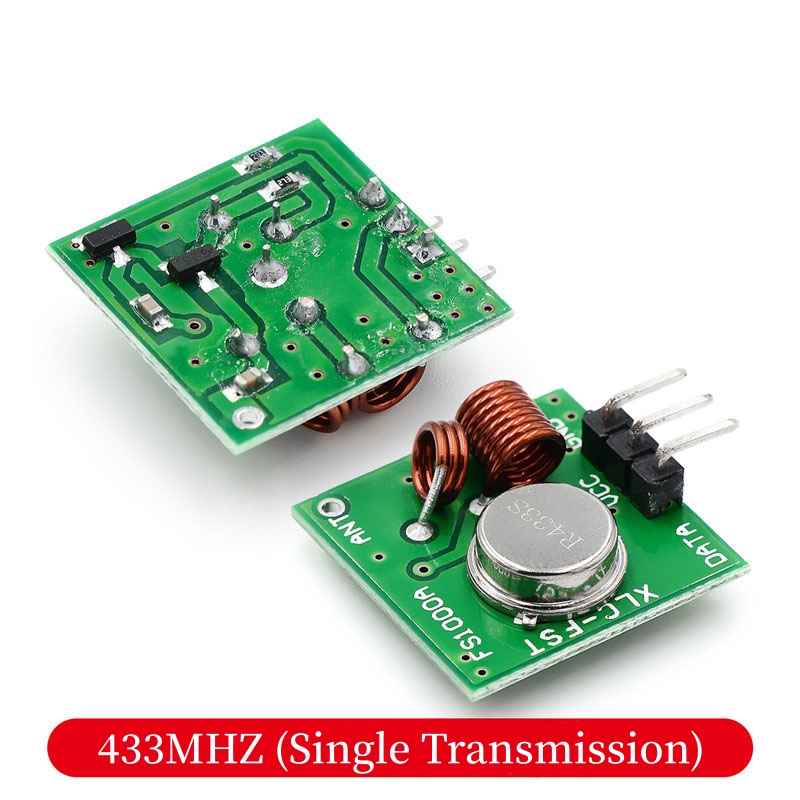

    Technical Parameters of The Launch Head:



    ● Product model: MX-FS-03V

    ● Emission distance: 20-200 meters (different voltages result in different effects)

    ● Working voltage: 3.5-12V External size: 19 * 19mm

    ● Working mode: AM

    ● Transmission rate: 4KB/S

    ● Transmission power: 10mW

    ● Transmission frequency: 433M

    ● External antenna: 25cm ordinary multi-core or single core wire

    ● Pin arrangement from left to right: (DATA; VCC; GND)



    Application Environment:



    Remote control systems such as remote switches, receiver modules, motorcycles, car anti-theft products, home anti-theft products, electric doors, rolling shutter doors, windows, remote sockets, remote LED, remote audio, remote electric doors, remote garage doors, remote telescopic doors, remote rolling gates, sliding doors, remote door openers, door closers, etc., remote curtains, alarm hosts, alarms, remote motorcycles, remote electric vehicles, remote MP3 players, etc.
