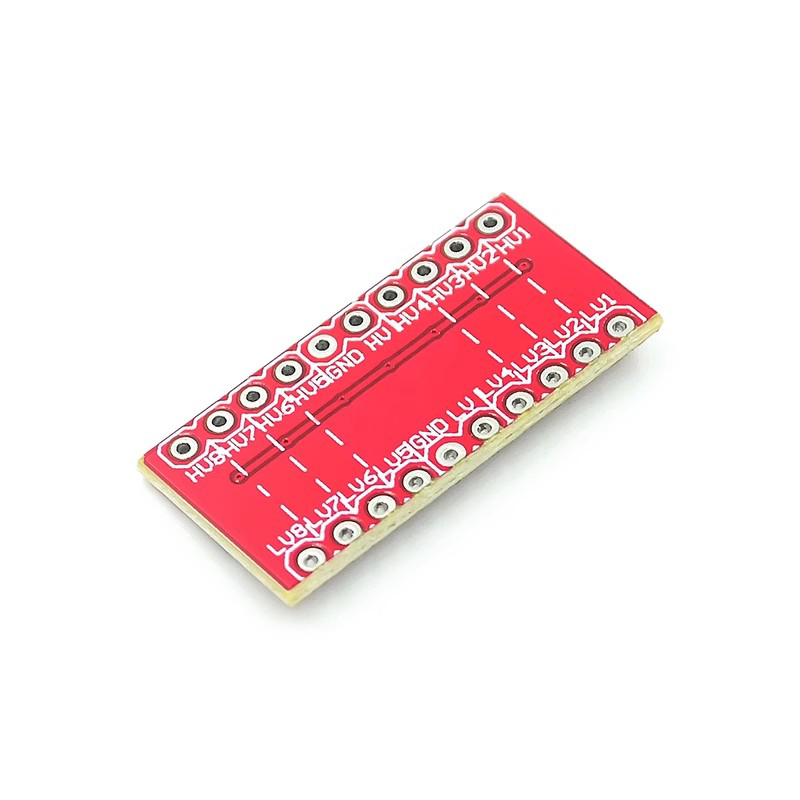

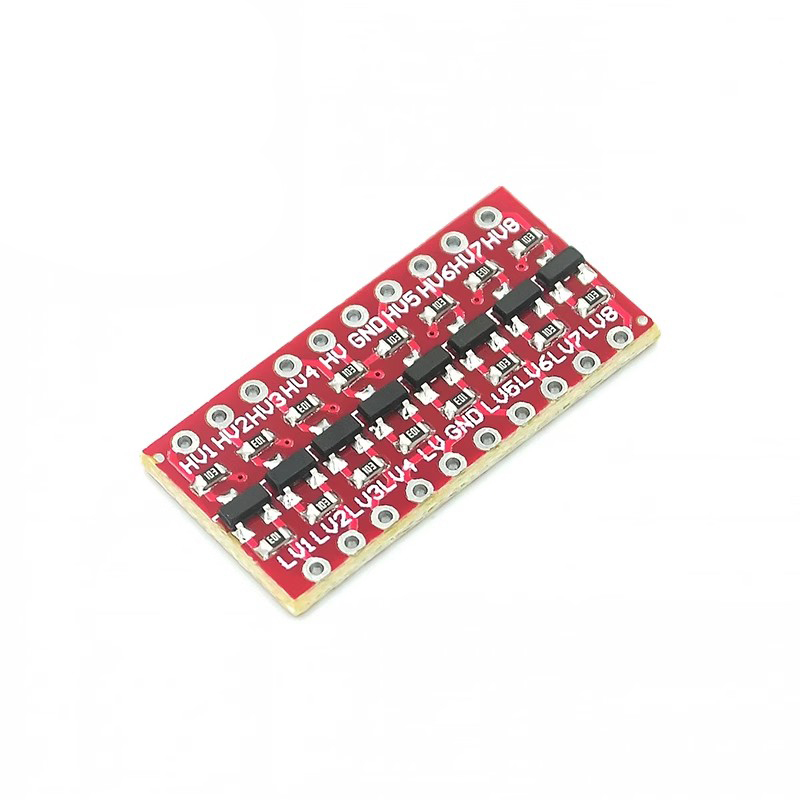

8-bit Bidirectional Voltage Level Converter High-speed Full Duplex Level Conversion Board Module ConnectorItem NO.: 8-bit bidirectional
-
Customized Requirements
- Quantity
-
-
- Product Name: 8-bit Bidirectional Voltage Level Converter High-speed Full Duplex Level Conversion Board Module Connector
- Item NO.: 8-bit bidirectional
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Other Electronic Modules
- Tag: 8-bit Bidirectional Voltage Level Converter , High-speed Full Duplex , Level Conversion Board Module
- Creation Time: 2024-04-16
8-bit Bidirectional Voltage Level Converter
Description:
If you have ever tried to connect a 3.3V device to a 5V system, you know what a challenge is. A bidirectional logic level converter is a small device that can safely reduce a 5V signal to 3.3V and boost it from 3.3V to 5V. This level converter is also suitable for 2.8V and 1.8V devices. The difference between this logic level converter and our previous version is that you can successfully set high and low voltages and safely raise and lower them on the same channel. Each level converter has the ability to convert 4 pins on the high side to 4 pins on the low side, providing two inputs and two outputs for each side
The level converter is very easy to use. The circuit board needs to be powered by two voltage sources (high voltage and low voltage) used by the system. High voltage (such as 5V) to the "HV" pin, low voltage (such as 3.3V) to the "LV" pin, grounding from the system to the "GND" pin
Compatible with 5-3V systems
VIN connected to 5V system power supply
5A connection to 5V system
5B connected to 5V system
GND connected to 5V system GND
Connect 3V3 to 3V system power supply
3A connection to 3V system
3B connected to 3V system
GND connected to 3V system GND
Size: 28 × 19mm/1.1 × 0.74 inches
Quantity: 1pc
The package includes:
1 x 8-channel IIC I2C logic level converter module
