  • Features:



    *MEGA-2560 R31 Prototype Screw Terminal Block Shield Board Kit for Arduino

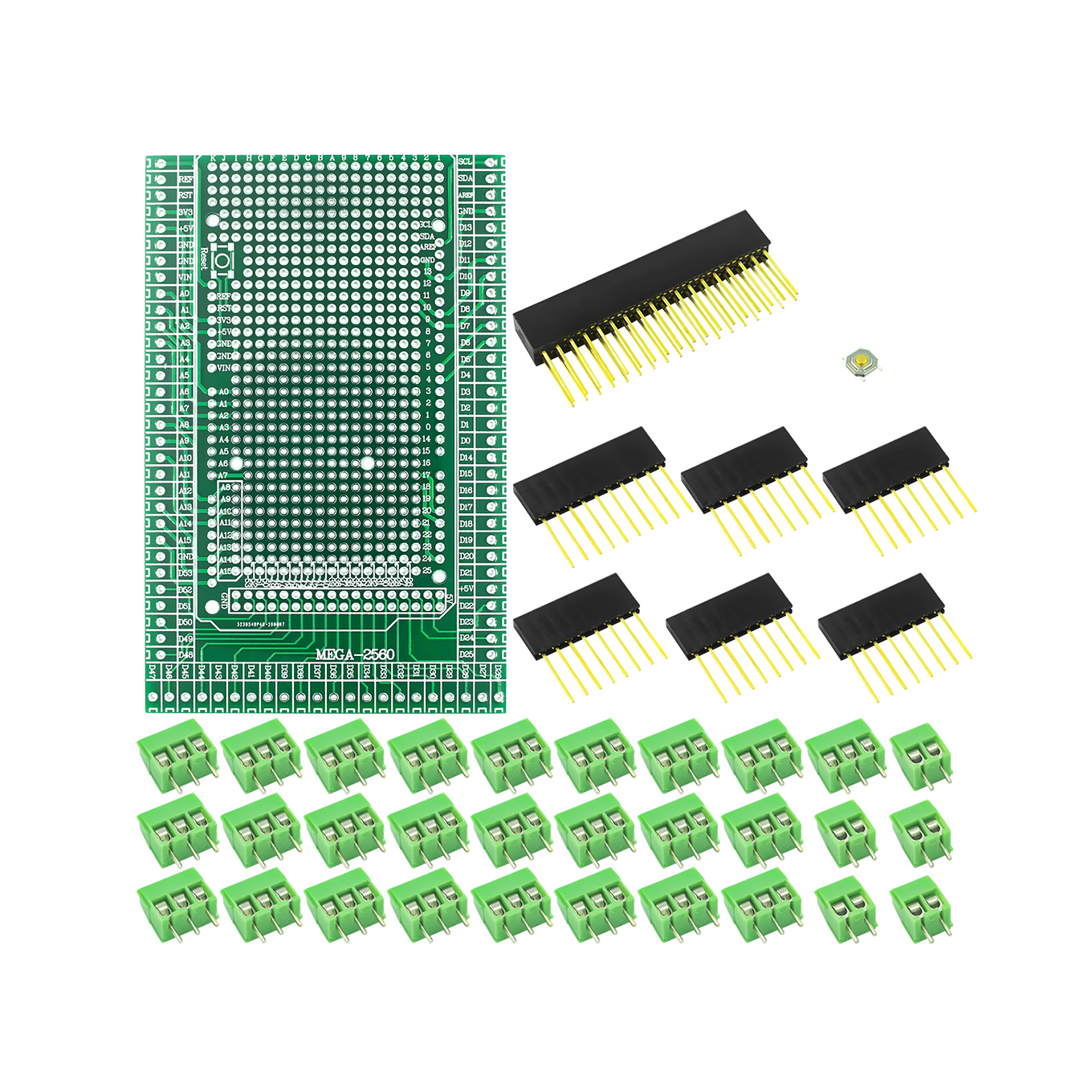

    *Includes prototype PCB, terminal blocks, female header sockets

    *The terminal module adopts high quality material, fine workmanship treatment, durable to use

    *Made up of screw terminal block, PCB carrier and FR-4 glass fiber PCB

    *Not assembled yet, you can use variety ways to mount, flexible to use

    *Durable and practical to use



    Specifications:



    *Color: As Pictures Show

    *Terminal Block:

    Pitch: 3.5mm mini terminal blocks, total 84 pins (3pole x24pcs, 2pole x6pcs)

    Wire range: 26~16AWG, strip length 5mm, screws M2 steel, pin header and cage brass

    *PCB:

    Pads grid /pitch: 2.54mm, hole diameter: 0.8mm (Approx.)

    Terminal block pitch: 3.5mm, hole diameter: 1.2mm (Approx.)

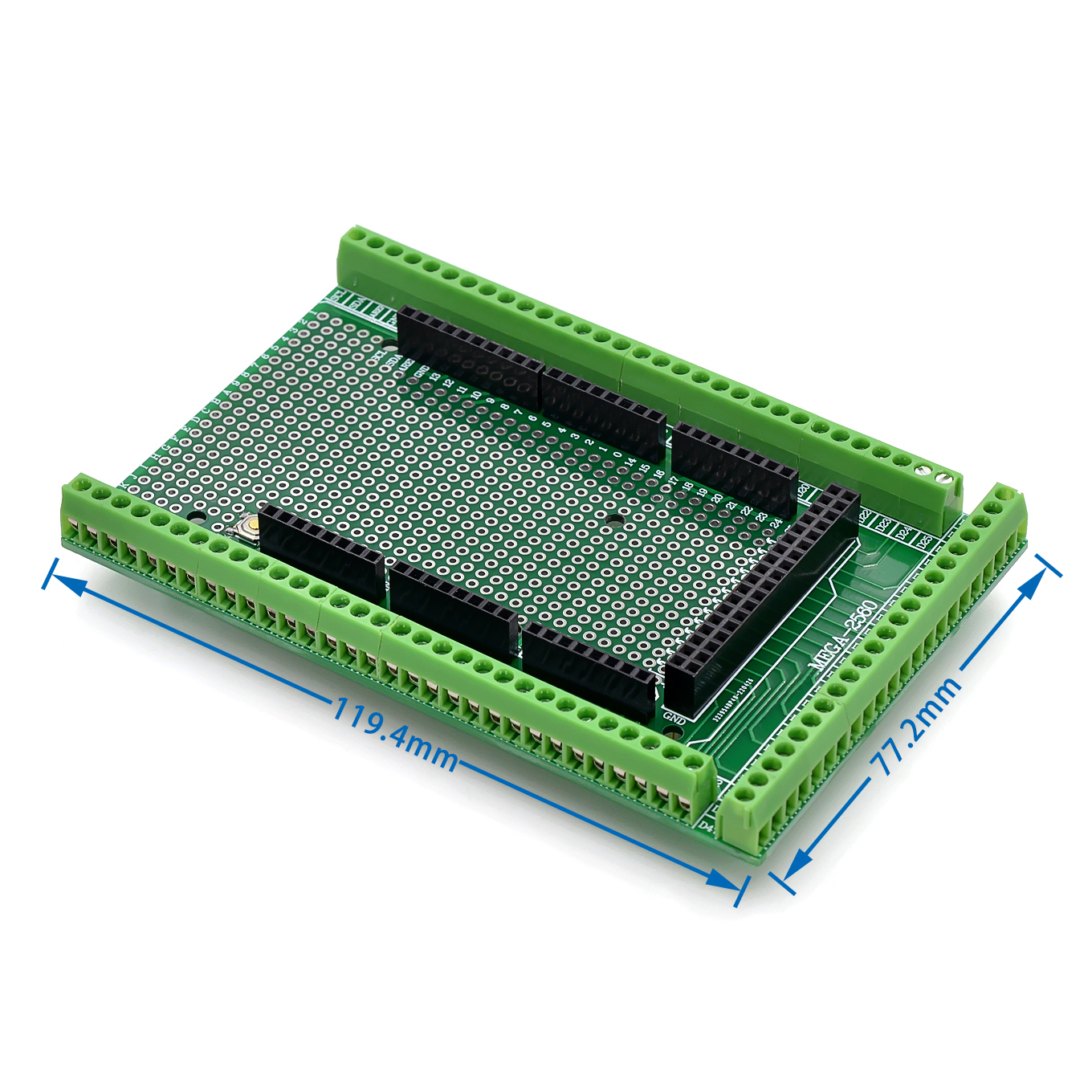

    Dimension: 12.024*7.72cm (Approx.)

    *Female Header Socket:

    Pitch: 2.54mm, pin length: 15mm (Approx.)

    Single row 10pin x1pcs, single row 8pin x 5pcs, dual row 18pin x1pcs

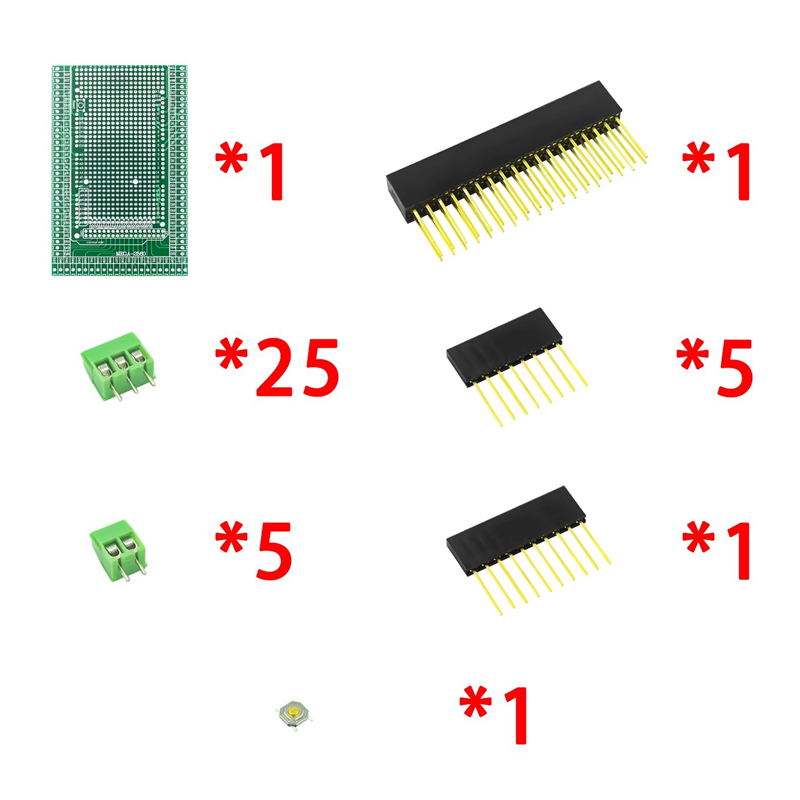

    Package Contents:



    1*Terminal Block Shiel
