DB9 Male And Female Adapter Screw Wiring Terminal 9-pin 9-hole RS232 RS485 Conversion BoardItem NO.: DB99Pin
-
Customized Requirements
- Quantity
-
-
- Product Name: DB9 Male And Female Adapter Screw Wiring Terminal 9-pin 9-hole RS232 RS485 Conversion Board
- Item NO.: DB99Pin
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Other Electronic Modules
- Tag: DB9 , Male And Female Adapter , Wiring Terminal , 9-pin , 9-hole , RS232 , RS485 , Conversion Board
- Creation Time: 2024-03-27

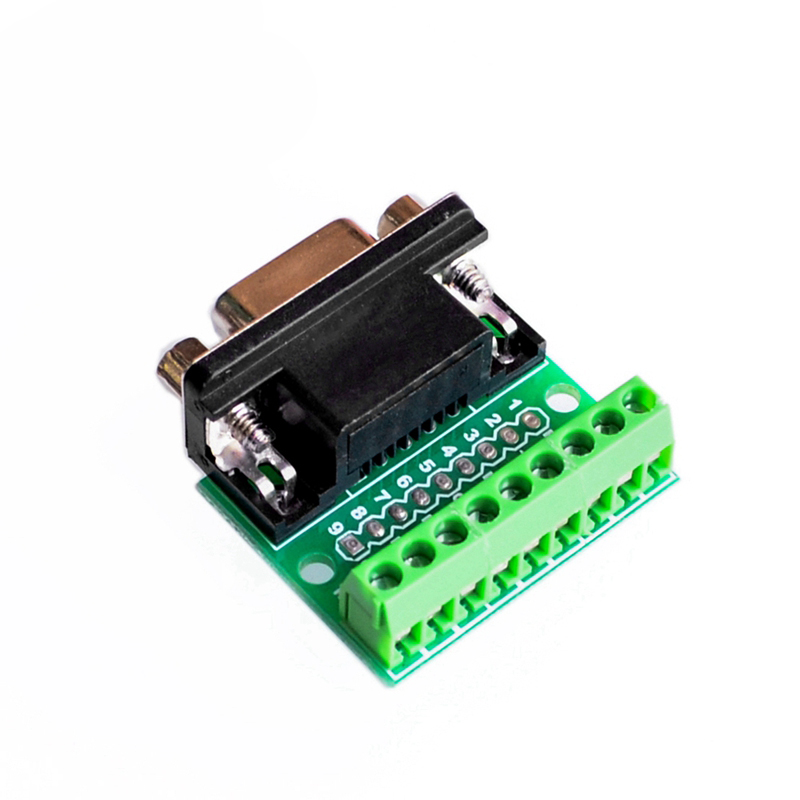

DB9 Male And Female Adapter Screw Wiring Terminal
Description:
DB9 male and female interface definition

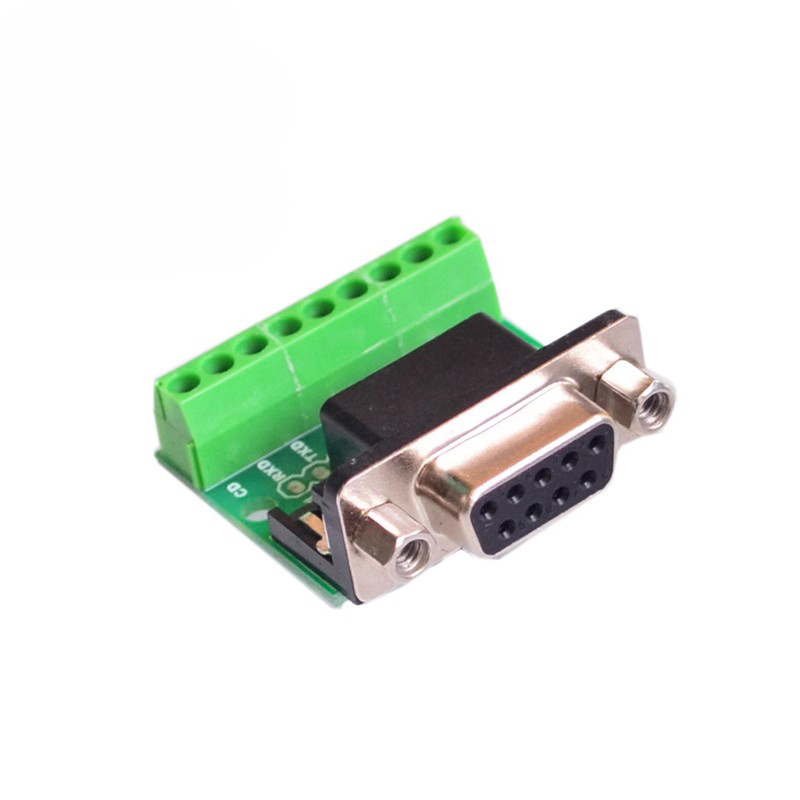

1. RS-232 terminal (DB9 female/hole type) pin definition
Pin number 2351, 4, 67, 8
Signal definition TXDRXD is internally connected to the ground and internally connected to the ground
Note: This port can be directly inserted into the COM port of the computer

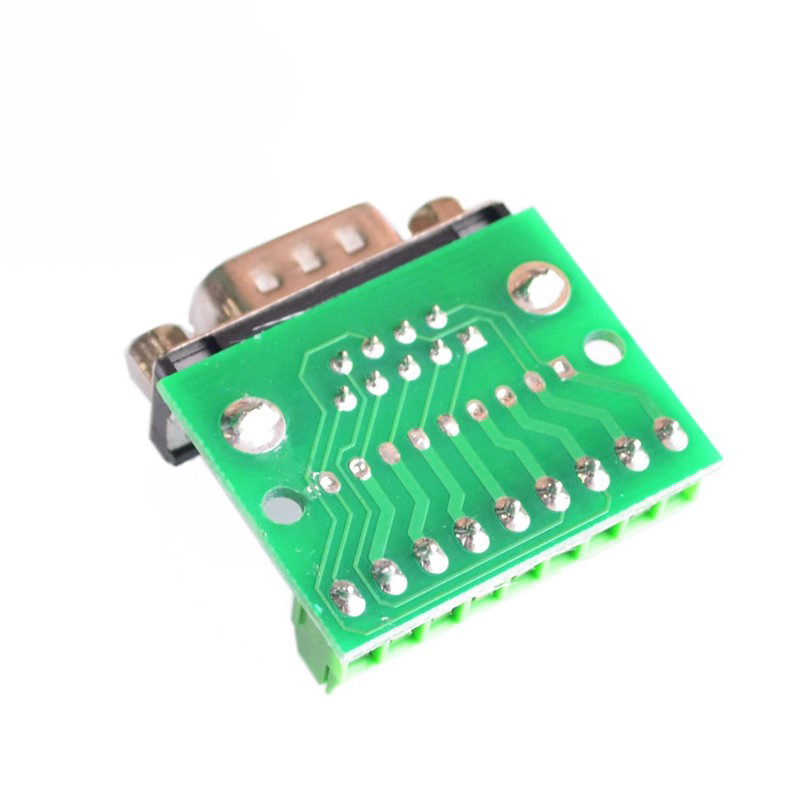

2. RS-232 terminal (DB9 male/pin type) pin definition
Pin number 2351, 4, 67, 8
Signal definition RXDTXD is internally connected to the ground and internally connected to the ground
Note: This port can be connected to devices that communicate with computers
