Customized Requirements
- Quantity
-
-
- Product Name: ESP01/01S Adapter Board Bread Board Adapter ESP8266 ESP01 ESP01S Solderless
- Item NO.: MK00878
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Other Electronic Modules
- Tag: ESP8266 , Adapter Board , ESP01 , ESP01S , Bread Board Adapter
- Creation Time: 2024-03-27

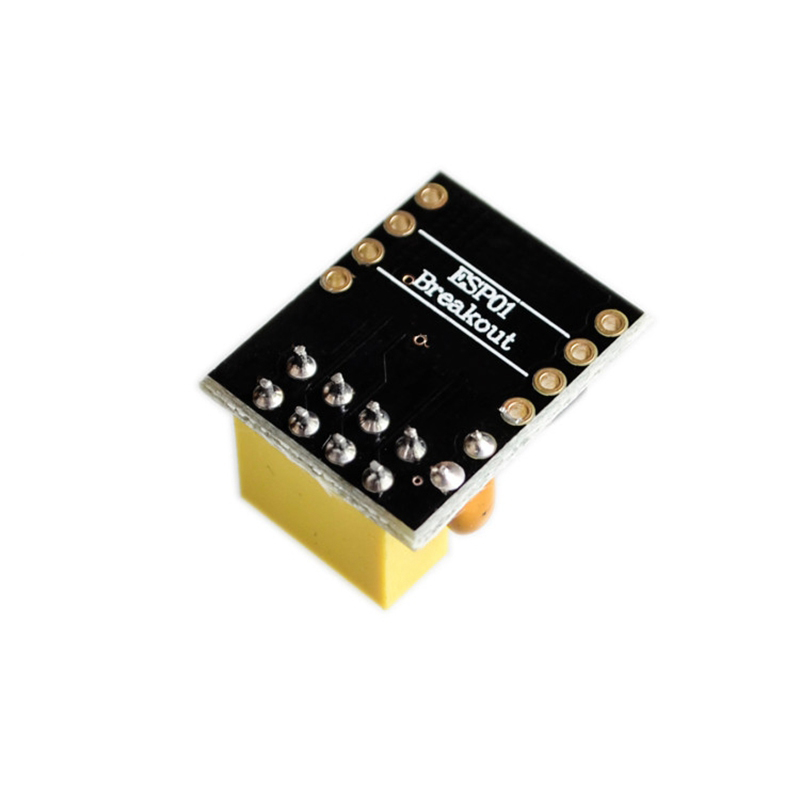

ESP01/01S Adapter Board
Description:
This is the commonly used ESP-01 bread board adapter for ESP8266 serial to WiFi transceiver modules.
Due to the non bread board friendly and unlabeled pin arrangement of ESP-01, it is not convenient for rapid prototyping. This breadboard adapter will help you make
It is easier to use the ESP-01 module prototype.

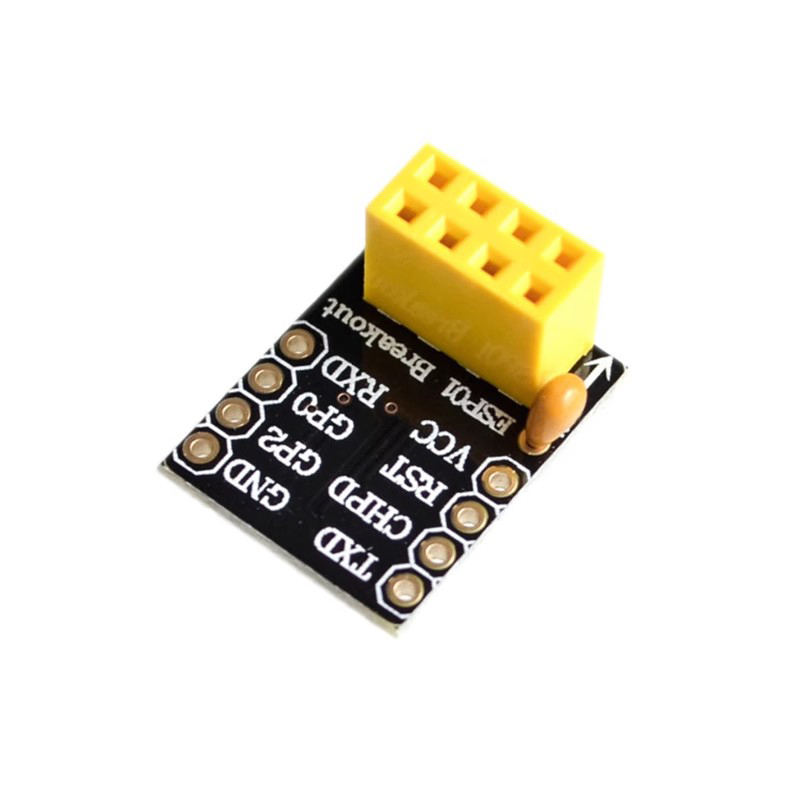

This breakthrough conveniently provides a clear lead wire screen at the top and will be well suited to your favorite breadboard.
Later, but not least, we added a 0.1 μ F decoupling capacitor, therefore ESP-01 will always operate smoothly and unobstructed.
Connection:
URAT adapter
3.3V VCC
3.3V CH-PD
TX RX
RX TX
Select NL CR 15200 baud rate
The package includes:
1 X ESP-01 Splice Board Breadboard Adapter
2 X 4P Male
