Home>Electronic Modules>Switch/Relay Module>ESP8266 WIFI Relay Module Network Relay Switch Control Module ESP-12F Development Board

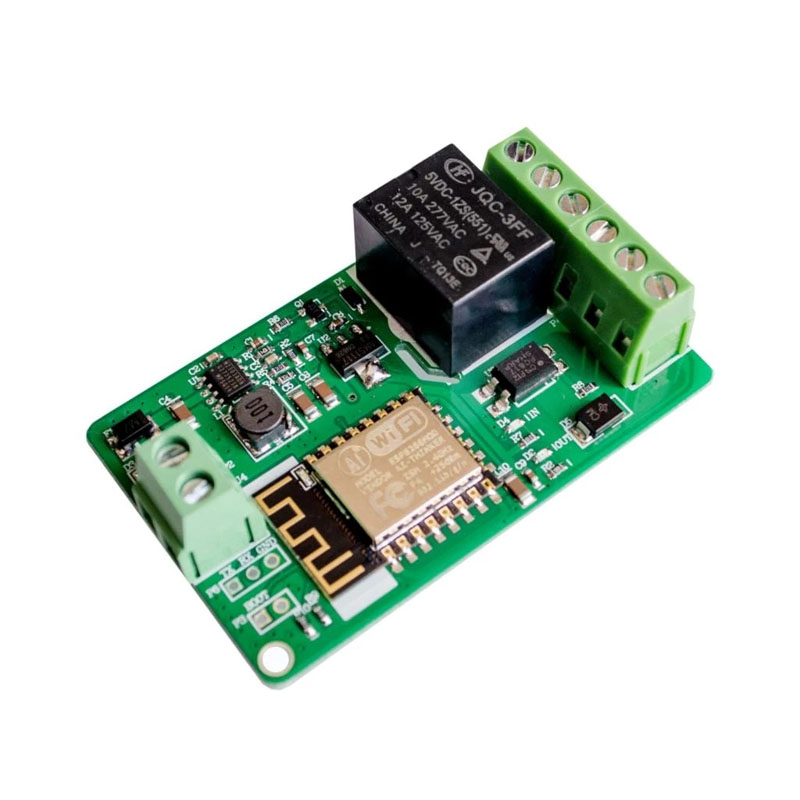

ESP8266 WIFI Relay Module Network Relay Switch Control Module ESP-12F Development Board

ESP8266 WIFI Relay Module Network Relay Switch Control Module ESP-12F Development BoardItem NO.: ESP8266 WIFI

US$ 7.12
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
ESP8266 WIFI Relay Module Network Relay Switch Control Module ESP-12F Development Board
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy
  • ESP8266 WIFI Relay Module



    Product Description:



    Wide voltage input, input voltage: DC 7V - DC 30V.

    Input overvoltage protection, input with TVS, voltage exceeding 33V, automatic protection.

    Input overcurrent protection.

    220V 10A relay, one normally open and one normally closed, with the following relay parameters:

    One optocoupler isolated input with TVS protection.

    High current terminal.

    One output status indicator and one input status indicator.

    The anti creep design of the relay PCB foot is safer.

    Access to server control can be achieved through TCP CLIENT.

    It can be controlled through the HTTP protocol.

    Board dimensions, 65mm ×  40mm ×  20mm.
