Field-effect Transistor Driver Module PWM Switch Control Board High-power MOSFET Module Optocoupler IsolationItem NO.: YYNMOS-1
-
Customized Requirements
- Quantity
-
-
- Product Name: Field-effect Transistor Driver Module PWM Switch Control Board High-power MOSFET Module Optocoupler Isolation
- Item NO.: YYNMOS-1
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Switch/Relay Module
- Tag: Driver Module , Field-effect Transistor , PWM Switch Control Board , MOSFET Module
- Creation Time: 2024-04-18

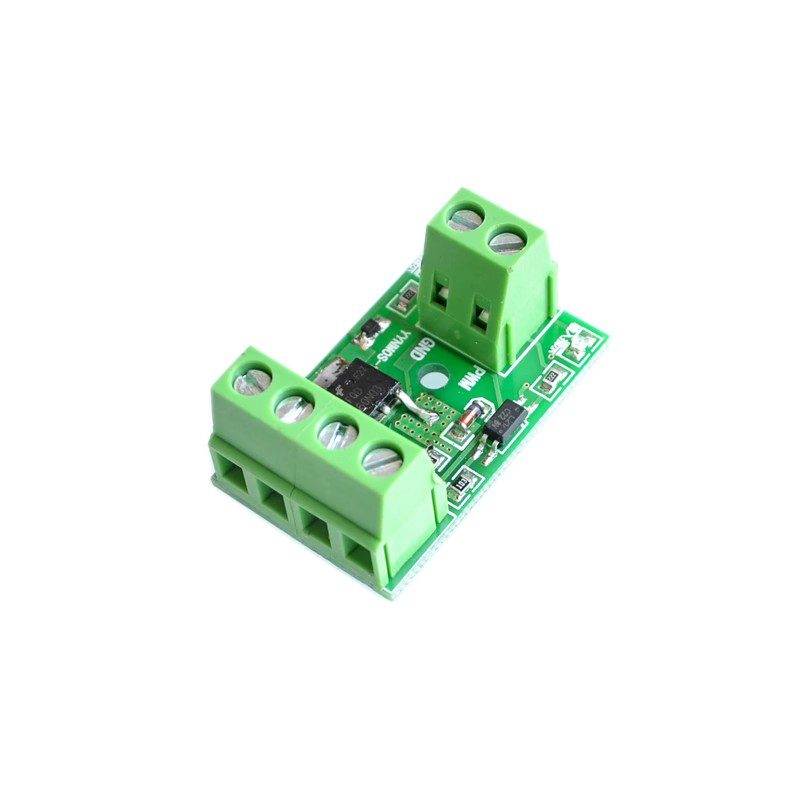

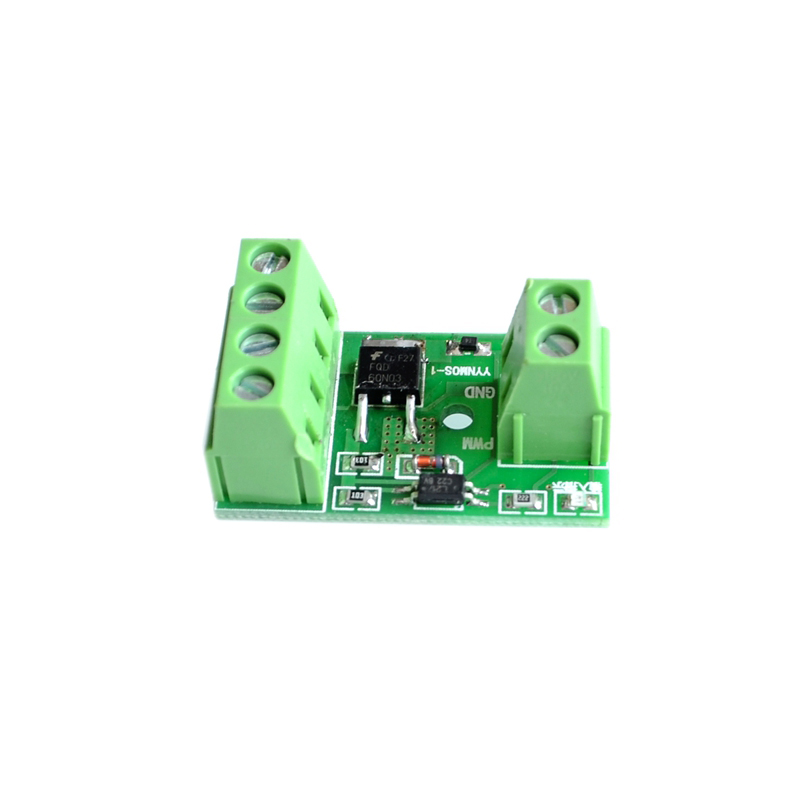

High power MOSFET Module
Product Description:
Product model: YYNMOS-1,
Input signal: PWM signal between 3~20V
Output capacity: DC 3.7V~27V, current within 10A
PWM frequency: 0-20KHZ
Application Description: PWM can be input to control motor speed, lamp brightness, etc.
Module interface description:
1. DC+: positive pole of equipment DC power supply
2. DC -: Negative pole of equipment DC power supply
3. PWM: Signal input terminal (connected to microcontroller IO port, PLC interface, DC power supply, etc.)
4. GND: Signal negative
5. OUT+: Output terminal positive pole (connected to device positive pole)
6. OUT -: Output terminal negative electrode (connected to device negative electrode)
