GY-906-BAA/BCC MLX90614ESF Infrared Temperature Sensor Module Temperature Acquisition MLX90614-DCIItem NO.: GY-906

GY-906-BAA/BCC/DCI MLX90614ESF Infrared Temperature Sensor Module

Parameters:

● Chip used: MLX90614

● Power supply: 3-5 v (internal low differential voltage regulator)

● Communication: Standard IIC communication protocol

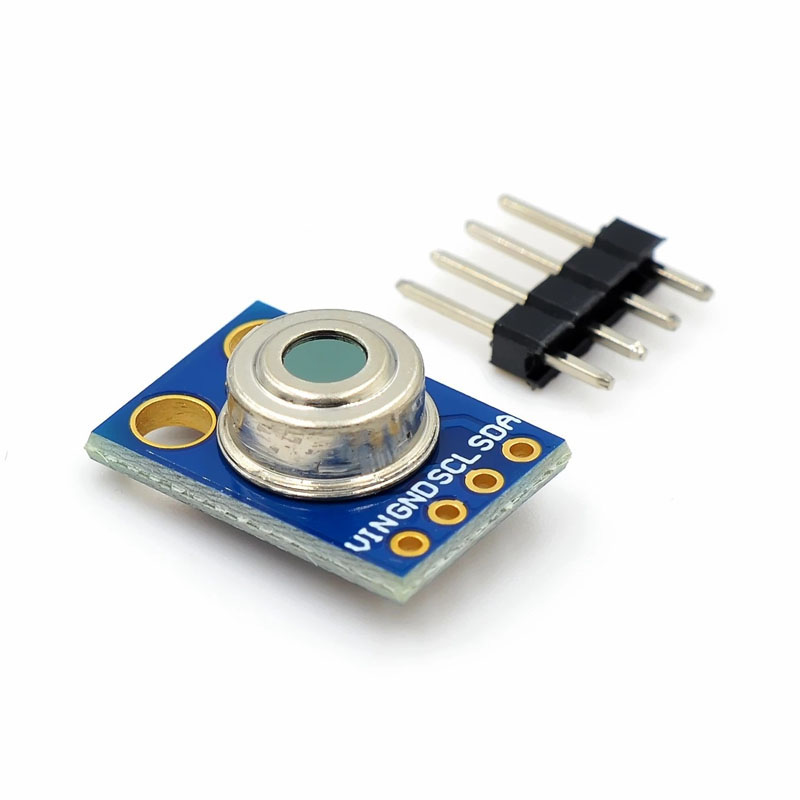

● BAA size: 16.7mm * 11.7mm * 5.7mm (length, width, height)

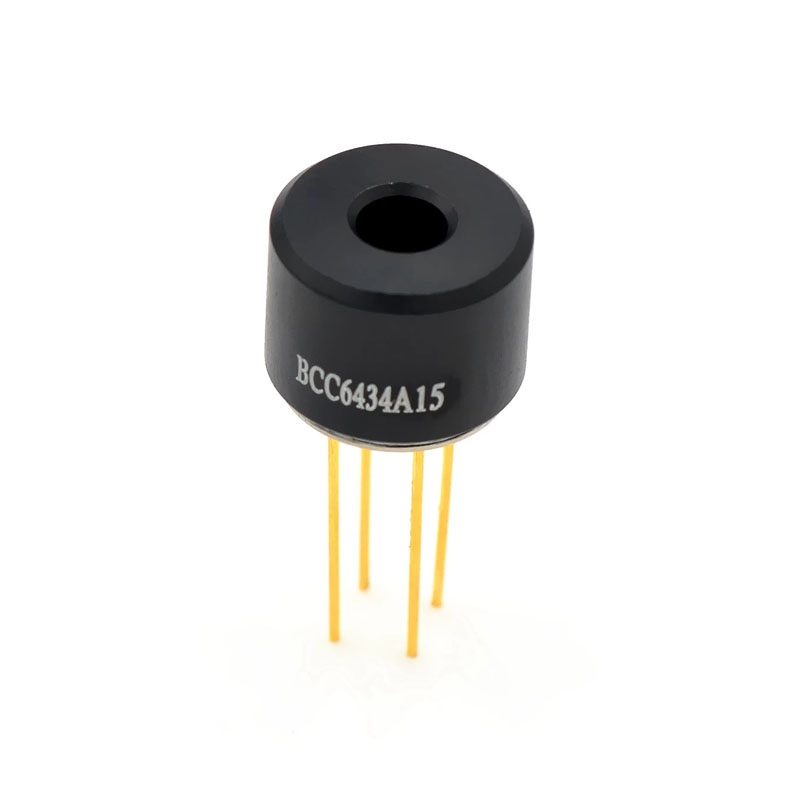

● BCC size: 16.7mm * 11.7mm * 10.5mm (length, width, height)

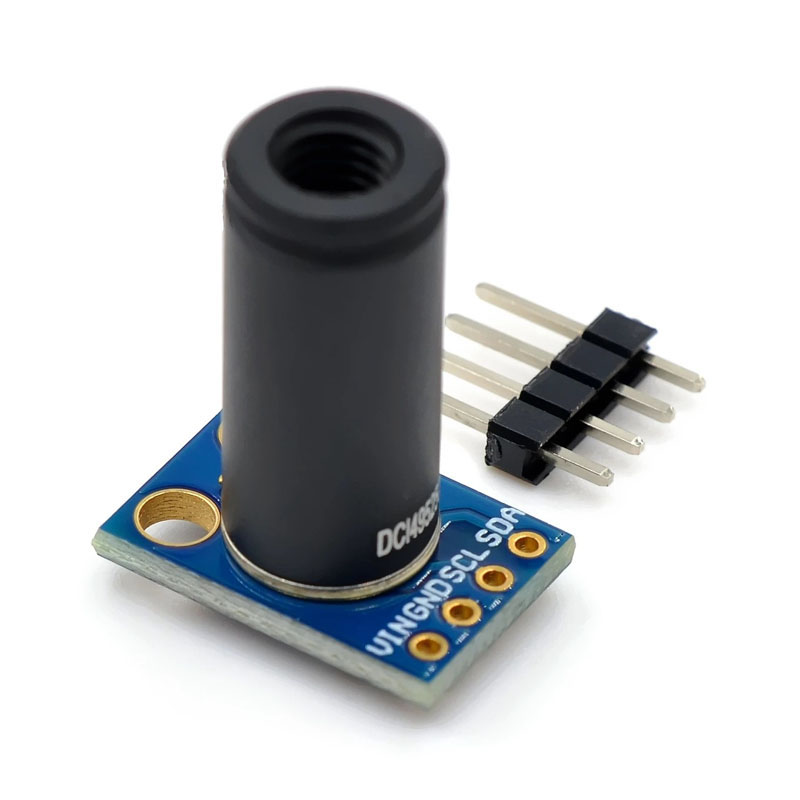

● DCI size: 16.7mm * 11.7mm * 22.2mm (length, width, height)

Explain:

The MELEXIS MLX90614ESF-BAA-000-TU-ND contactless infrared thermometer sold can be used with or any microcontroller and can communicate with it through the I2C interface. The sensor comes with a junction board that contains all the components required for operation and two types of pins. They didn't weld. Please indicate whether you want to weld them. The I2C interface has two jumpers, which may or may not require soldering depending on your application, but in most cases they are not required.

Features And Advantages:

● Small size and low cost

● Two types of pins are installed on the distribution board:

● 10k pull-up resistor for I2C interface with optional solder jumper

● Easy integration

● Factory calibrated temperature ranges are wide:

●-40 ... + 125 ° C for sensor temperature and

●-70 ... Object temperature+380 ° C.

● High accuracy (medical) calibration of 0.5 ° C over a wide temperature range (both Ta and To are at 0...+50 ° C)

● Measurement resolution of 0.02 ° C

● Single and dual zone versions

● SMBus compatible digital interface

● Customizable PWM output for continuous reading

● Simple adaptation 8 16V applied

● Sleep mode to reduce power consumption

● Different packaging options for applying and measuring versatility

● Automotive grade

Application Example:

● High accuracy non-contact temperature measurement

● Thermal comfort sensors for mobile air conditioning control systems

● Temperature sensing elements for air conditioning in residential, commercial, and industrial buildings Windshield demisting

● Vehicle blind angle

● Industrial temperature control of moving parts

● Temperature printers and copiers

● Control household appliances with temperature control

● Healthcare

● Livestock monitoring

● Sports

● Multi zone temperature control - up to 127 sensors can be read through a common 2-wire

● Thermal relays/alarms

● Body temperature measurement
