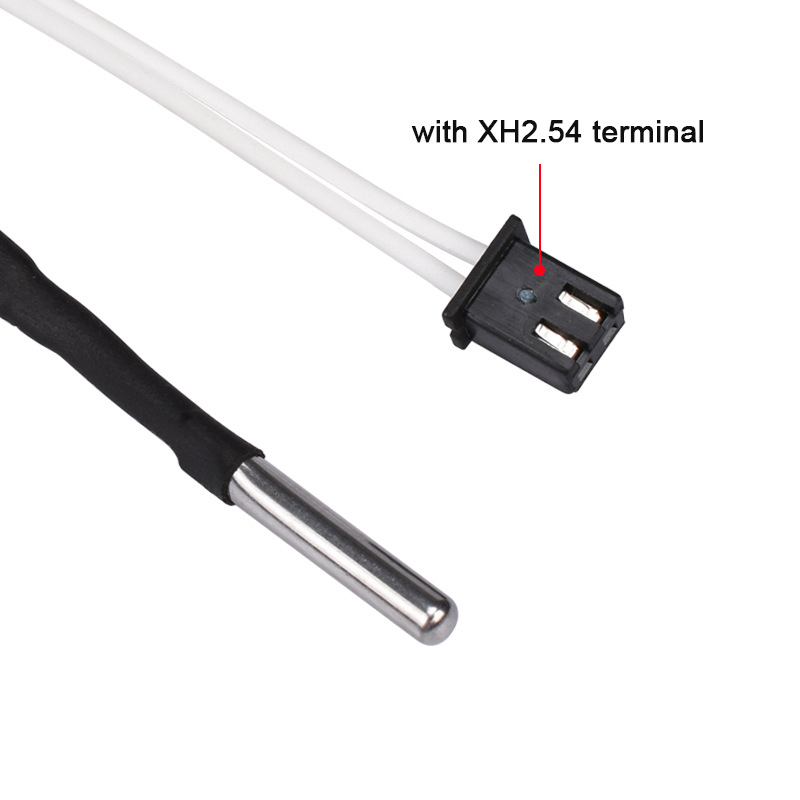

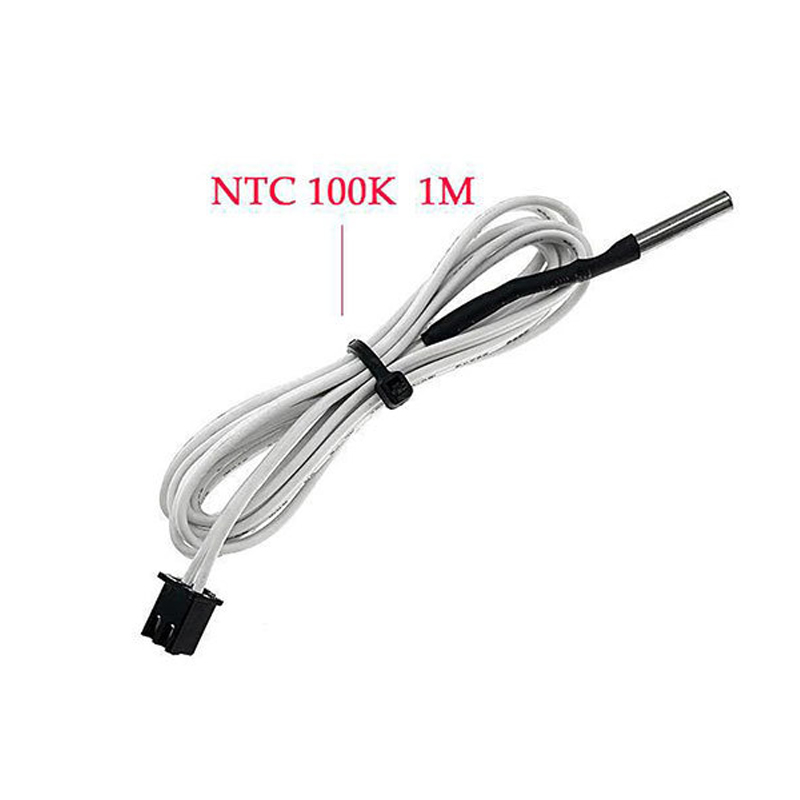

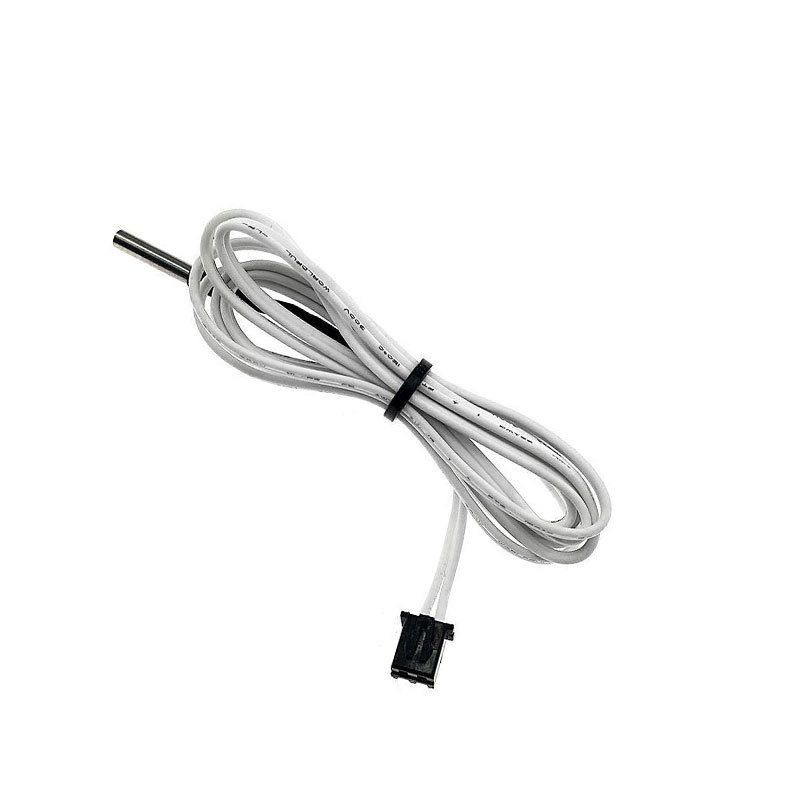

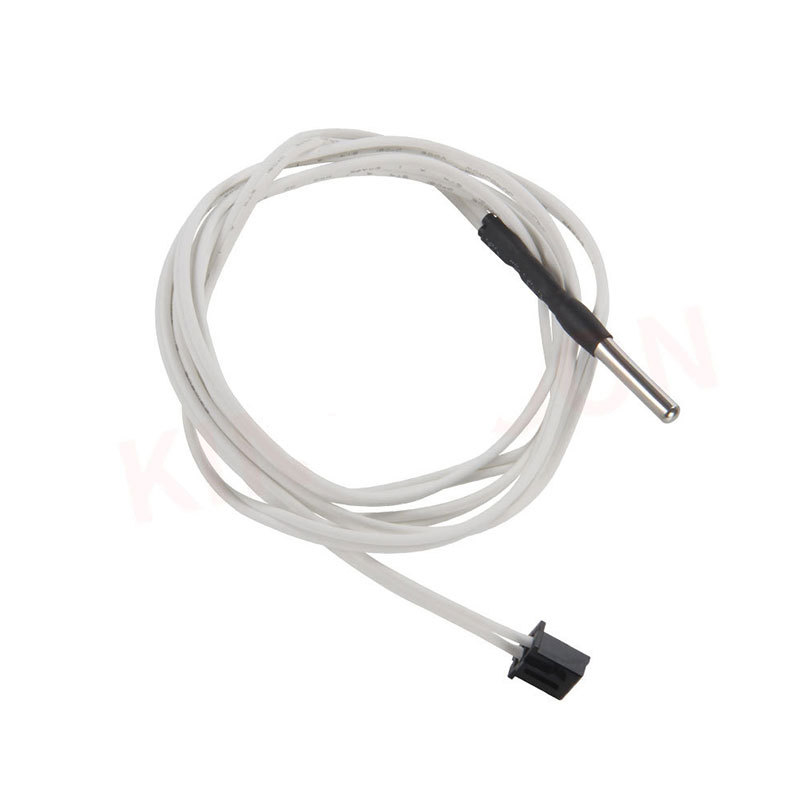

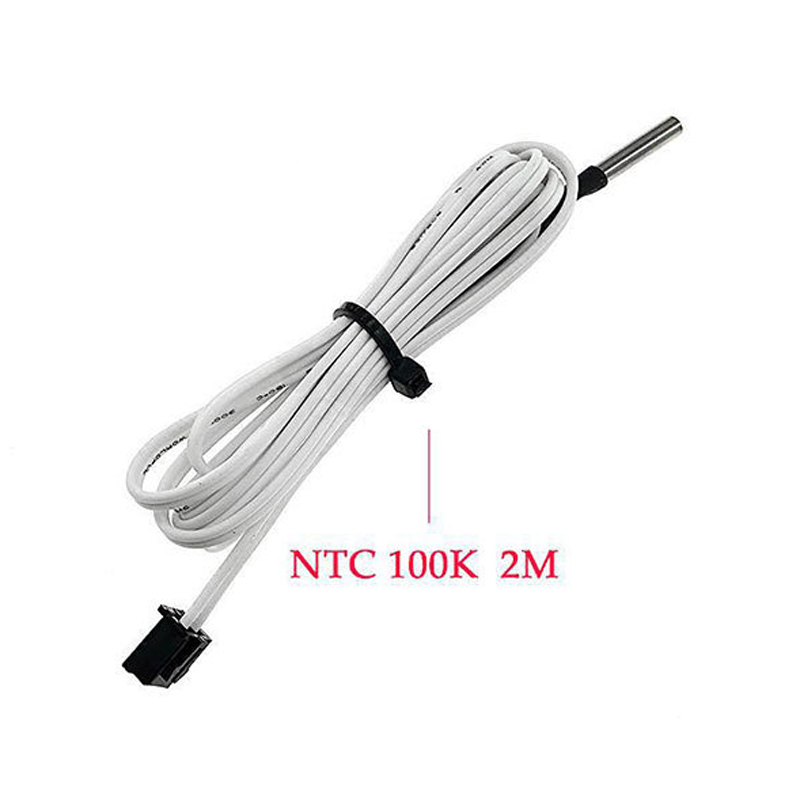

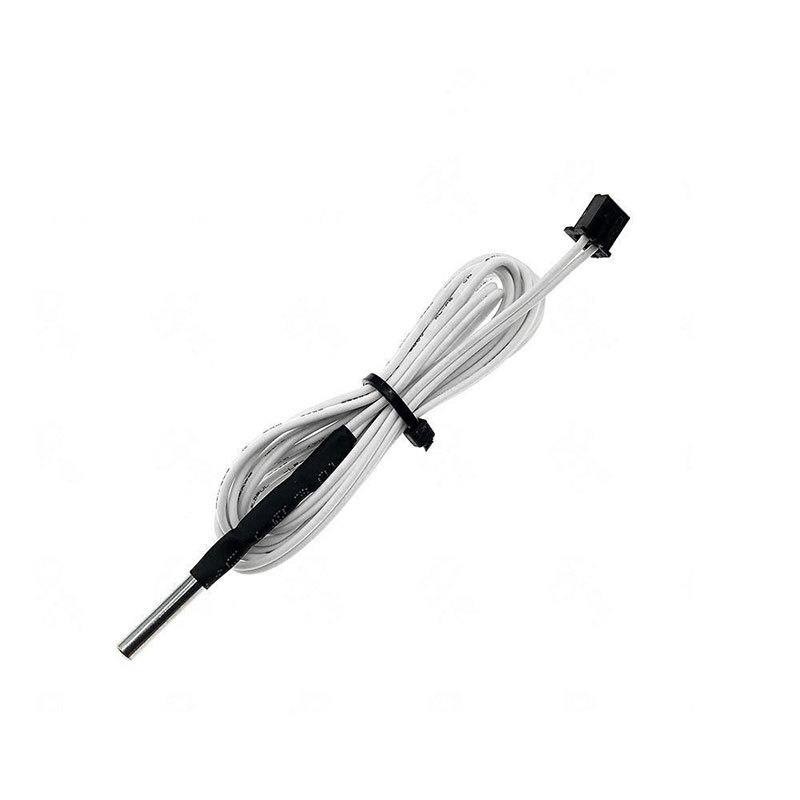

HT-NTC100K 3D Printer Temperature Measurement Resistor Thermistor Sensor Accessory Hot Head High Temperature 350℃Item NO.: HT-NTC100K

HT-NTC100K 3D Printer Temperature Measurement Resistor

Product Information:

● Product specification: negative temperature coefficient (NTC)

● Thermistor model: B3950

● Store suggestion: The temperature measurement of the thermistor is stable, and the new HT-NTC100K model can measure up to 350 degrees after upgrading, which can effectively replace the K-type thermocouple and solve the strict wiring requirements of the K-type thermocouple. Long wires are easily affected by external interference, resulting in large temperature fluctuations and other issues that affect printing quality.

Compared To The Improvement Of Temperature Measurement Resistors On The Market:

1. The original ordinary temperature measuring head is directly exposed for temperature measurement, and has been upgraded to a resistance encapsulated temperature measurement. The cylindrical outer diameter of the temperature measuring head is 3mm and the length is 15mm, which can be used in conjunction with heating blocks that support thermocouples.

2. Increase the temperature measurement range from -50 ℃ to+250 ℃ to -50 ℃ to+350 ℃ to assist in printing high-temperature materials, Replacing the original K-type thermocouple temperature measurement (not recommended for thermocouple temperature measurement. K-type thermocouples require strict wiring requirements, require casing grounding, and are prone to external interference due to long connecting wires, resulting in excessive temperature fluctuations and other issues that affect printing quality. If high-temperature materials need to be printed, the store recommends using the new version of high-temperature HT-NTC100K thermistor temperature measurement).

3. The new version of HT-NTC100K temperature measuring resistors are all made using imported techniques, using 304 stainless steel material, combined with internal temperature measurement packaging, to ensure that they are made of genuine materials to achieve maximum service life and accurate temperature measurement.

4. The new version of HT-NTC100K temperature measuring resistor adopts white high-temperature resistant flexible wire, which is more resistant to high temperatures. For customer convenience, parallel connection is adopted. Customers can tear and use it according to their own needs. The high-temperature wire is twice thicker than the ones on the market, and it is not easy to break when used.

5. Support customization of temperature measurement resistors with different specifications, cylinder sizes, and lengths (minimum order of 100).

6. It can be used in conjunction with the new heating tube (the new heating tube can heat up to around 350 degrees).

Model: HT-NTC100K thermistor temperature sensor element. Weight: 1 meter of wire length 8g
