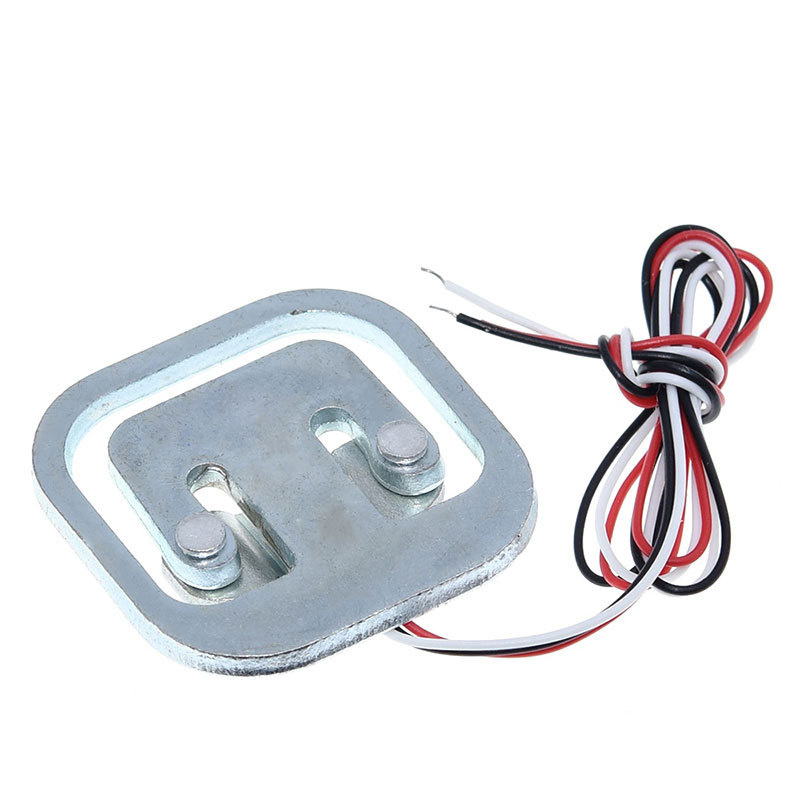

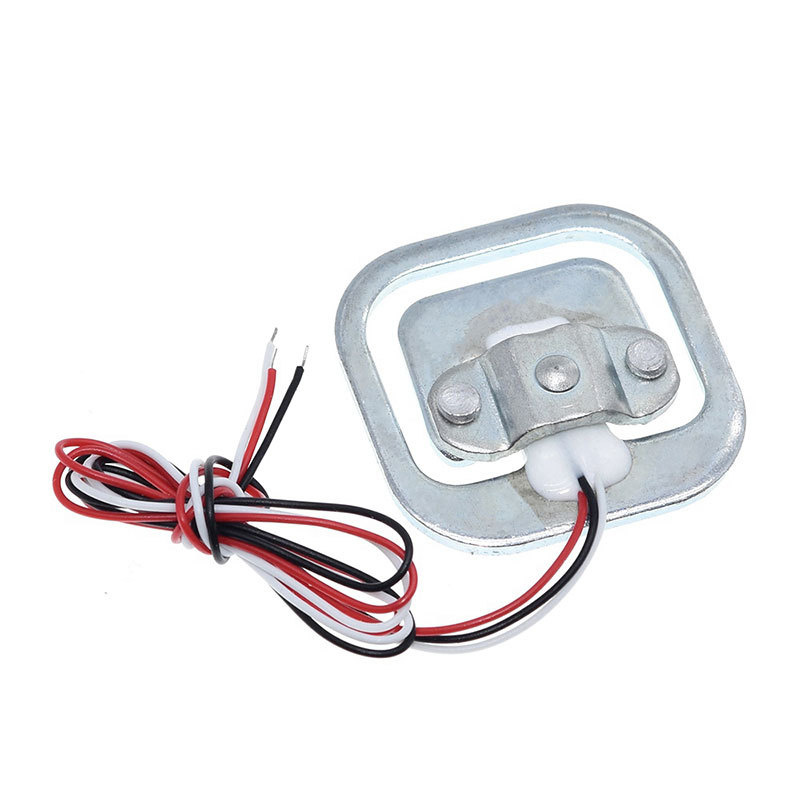

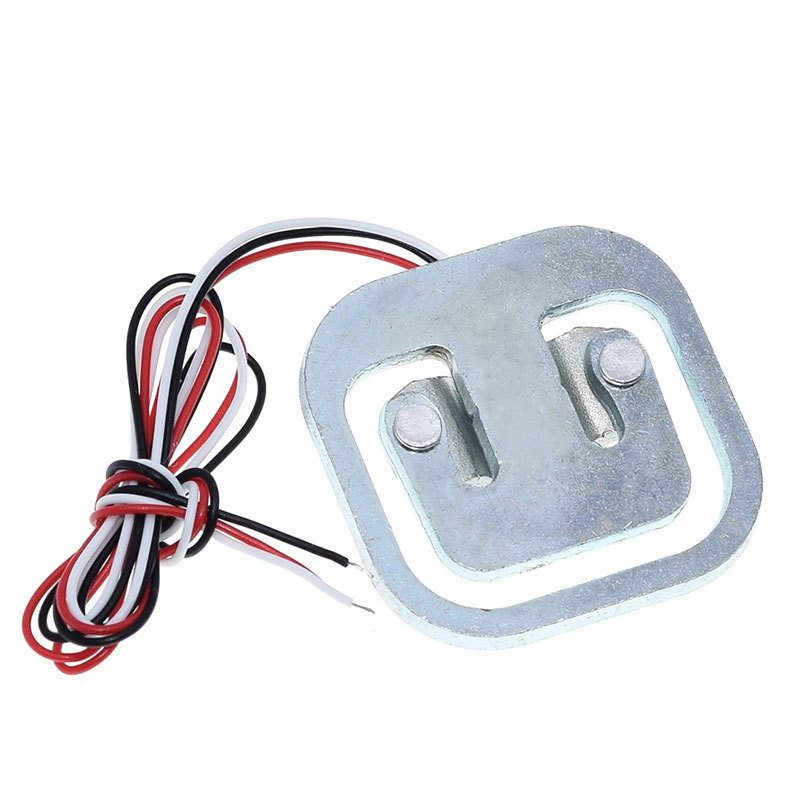

Human Scale 50kg Weighing Sensor Resistance Strain Half Bridge Sensor 50kg

Human Scale 50kg Weighing Sensor Resistance Strain Half Bridge Sensor 50kgItem NO.: Body scale 50kg

US$ 3.20
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
Human Scale 50kg Weighing Sensor Resistance Strain Half Bridge Sensor 50kg
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy
  • Weighing Sensor



    Product information:

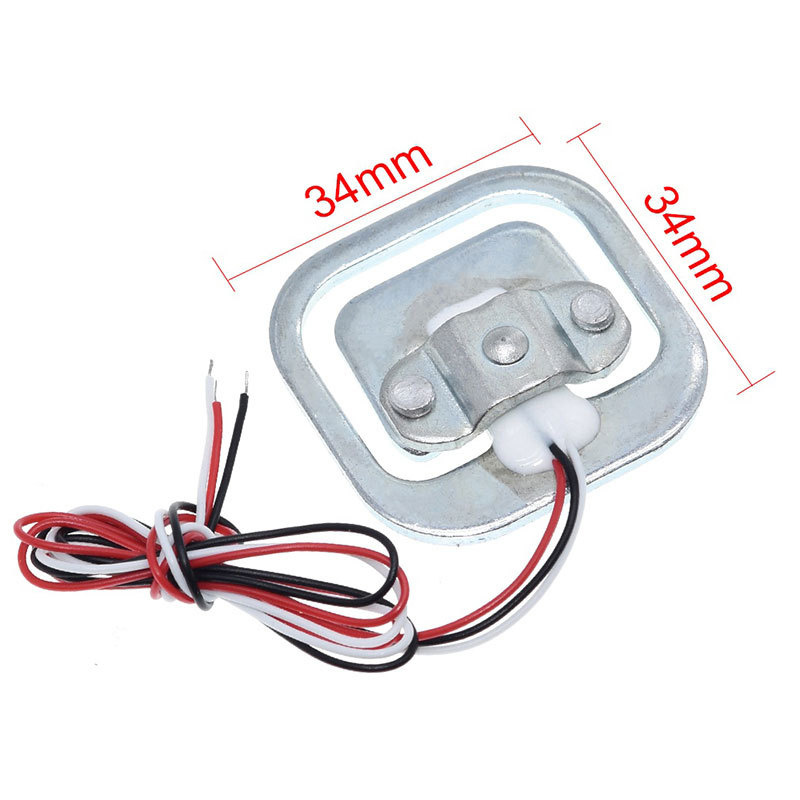

    ●Size: 34mmX34mm

    ●The inner part is a 1000 ohm half bridge strain gauge with a measuring range of 50kg load cell and a half bridge structure

    ●During the measurement, the external force shall be applied correctly on the outer side. The strain beam part of the E-shaped sensor (i.e. the beam arm with a strain gauge in the middle and a white coating) and the outer side shall form a shear force in the opposite direction, that is, the strain beam in the middle must be able to bend under the force, and the other side of the stress surface of the strain beam shall not be blocked.

    ●Inside the sensor is a set of half bridge strain gauges, which can be used in the following three ways:



    1. Use a sensor and external resistance to form a full bridge measurement. The measuring range is 50kg. The external resistance is required to be high.

    2. Two sensors are used to form a full bridge measurement. The measuring range is the sum of the measuring ranges of the two sensors: 50kgx2=100kg

    3. Four sensors are used to form a full bridge measurement. The measuring range is the sum of the measuring ranges of the four sensors: 50kgx4=200kg
