JDY-41 2.4G Module Wireless Serial Port Module 2.4G Remote Control Wwitch Quantity Serial Port TransmissionItem NO.: JDY-41

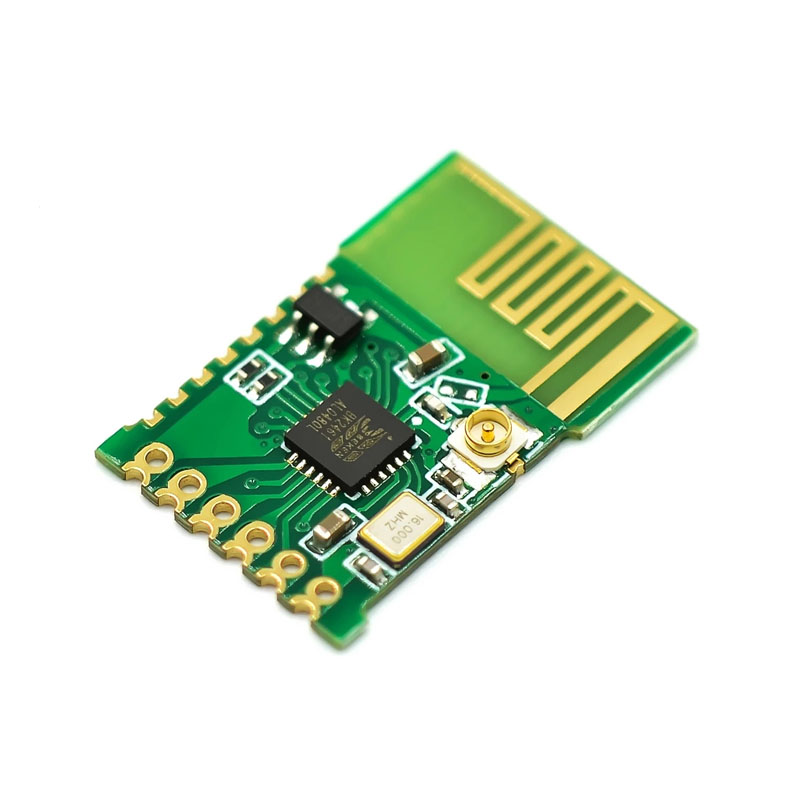

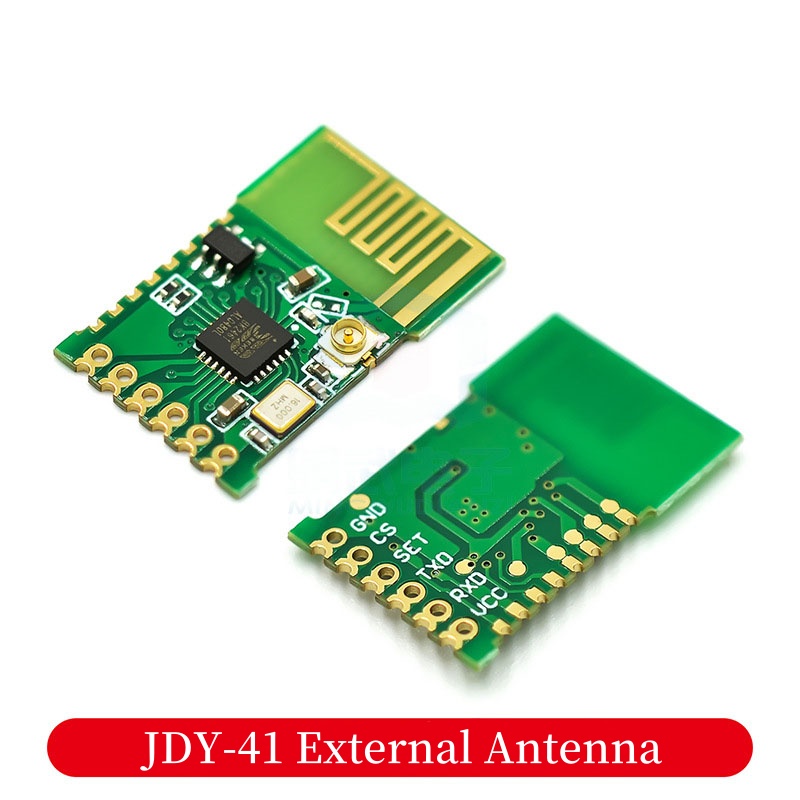

JDY-41 2.4G module

Function Introduction:

JDY-41 is developed using 2.4G technology, with a line of sight of 160 meters. It is equipped with serial port transparent transmission, switch quantity control, low-power remote control, and learning type remote control. It is particularly noted that JDY-41 and JDY-40 are only compatible with PCB packaging, and the communication protocol is completely different. JDY-41 has long-distance transparent communication, and each packet of data has a verification function. The receiving end will not receive garbled data, and the communication distance has been greatly improved. The measured communication distance is 160 meters, and transparent transmission does not lose packets. It supports serial port command control of the receiving end GPIO pin high and low levels, and serial port communication supports transparent serial port communication. It also supports communication with the sending command serial port. Serial port transparent communication means that the transmitting and receiving serial port communication has no format, and what the transmitting end sends and the receiving end have no format. All data input from the transmitting end serial port will be received, and instruction serial port communication supports specifying device communication by adding a target address before the data, Transparent communication supports ACK response communication. The transmitting end transmits data to the receiving end, and the transmitting end can know whether the receiving end has received it. The learning remote control supports the receiving end to learn the transmitting end ID code. After successful learning, the receiving end of the remote control will only accept the specified remote control control

Application scenario:

1: 2.4G remote control

2: 2.4G wireless serial port transparent transmission

3: Bluetooth to 2.4G or WIFI to 2.4G serial communication

4: IO switch quantity control

5: 2.4G toy control

6: Smart Home Control Applications

Tip: Applications such as IO control, switch quantity, and remote control do not require an external MCU

Technical parameters:

Model: JDY-41

Color: Green

Working frequency band: 2.4G

Transmission power: 12dB higher

Working temperature: -40 ℃ -80 ℃

Receiving sensitivity: -96dB

Transmission distance: 160 meters

Working voltage: 2.2V-3.6V

TX current: 40mA

RX current: 24mA

Sleep current: 10uA

Communication interface: Standard TTL serial port
