KY-033 Tracking Sensor TCRT5000 Reflective Photoelectric Switch Infrared Tracking Module

KY-033 Tracking Sensor TCRT5000 Reflective Photoelectric Switch Infrared Tracking ModuleItem NO.: KY-033

US$ 2.64
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
KY-033 Tracking Sensor TCRT5000 Reflective Photoelectric Switch Infrared Tracking Module
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy

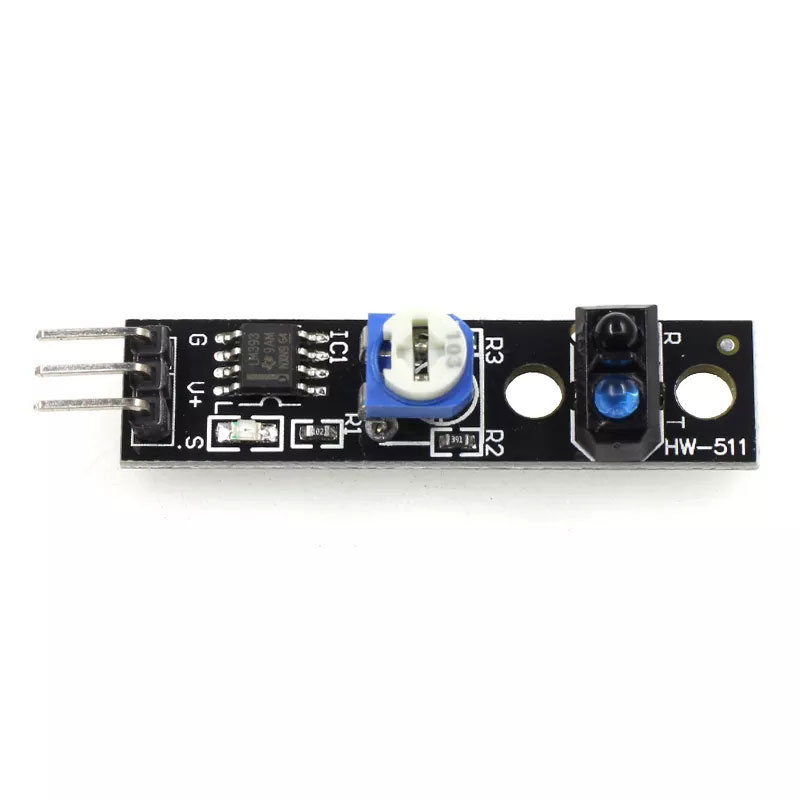

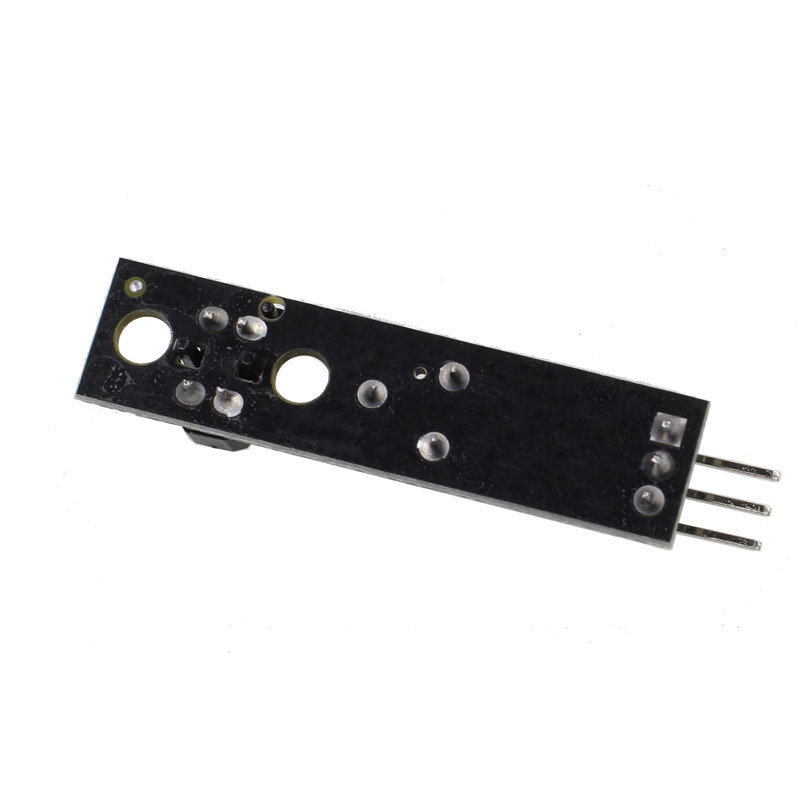

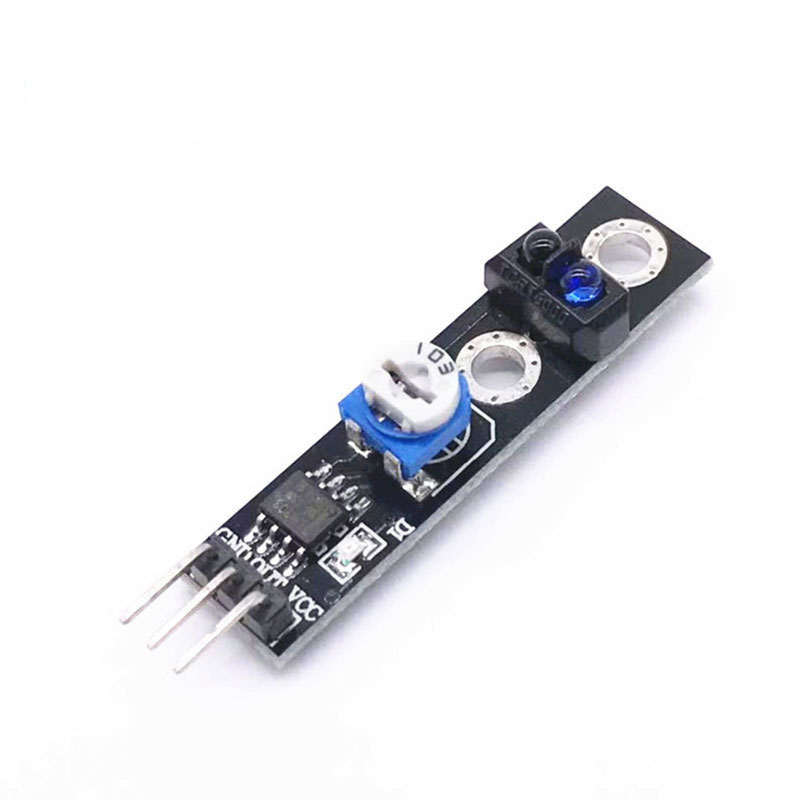

  • KY-033 Tracking Sensor TCRT5000 Tracking Module



    Product Information:



    The TCRT5000 infrared sensor continuously emits the infrared emitting diode when there is no reflected or emitted infrared ray, but the intensity is not strong enough. The phototransistor has been turned off, and the output terminal of the module is high, indicating that the diode has been turned off all the time; Among the objects to be detected within the detection range, the intensity of the reflected infrared ray is large enough, the phototransistor is saturated, the module output terminal is low, and the indicator light is on.



    Product Features:



    1. Use infrared reflection sensor TCRT5000

    2. Detection distance: 1mm? 8mm, focal length 2.5mm

    3. The output signal of the comparator is clean, the waveform is good, and the driving capacity is greater than 15mA

    4. Multi turn precision potentiometer is used to adjust sensitivity

    5. Working voltage 3.3V-5V

    6. Output format: digital switch output (0 and 1)

    7. Fixing bolt holes for easy installation

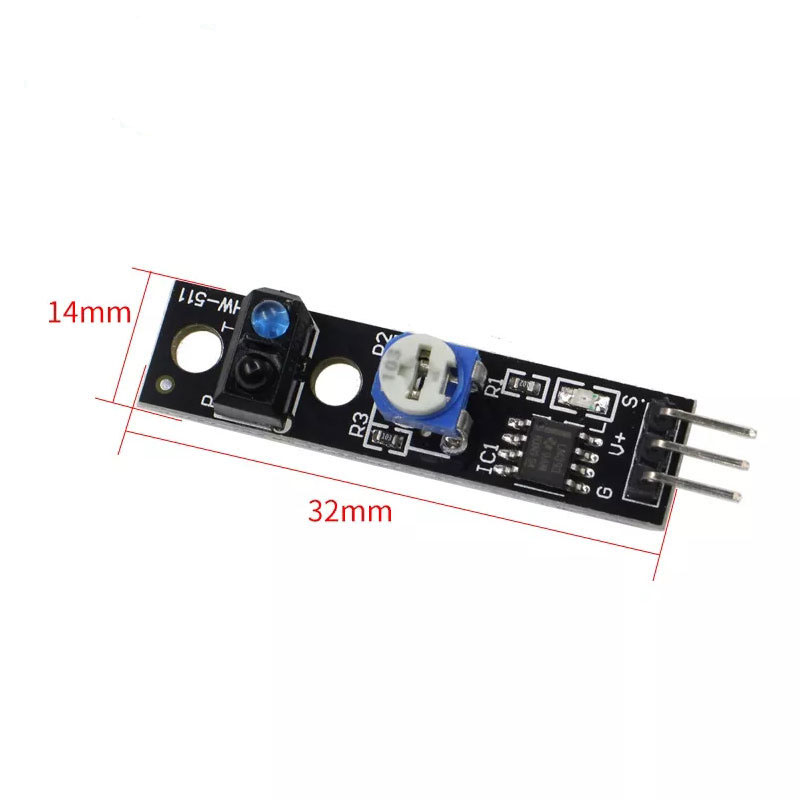

    8. Size of a small PCB: 3.2cm x 1.4cm

    9. Use wide voltage LM393 comparator



    Product Function:



    1. Instrument pulse data sampling

    2. Detection of fax paper shredder

    3. Obstacle detection

    4. Black and white line detection
