Mono Voice Control Level Indicator Music Melody Light Audio Induction Light 4-Color Mixed Sensitivity AdjustableItem NO.: SUNLEPHANT0006
-
Customized Requirements
- Quantity
-
-
- Product Name: Mono Voice Control Level Indicator Music Melody Light Audio Induction Light 4-Color Mixed Sensitivity Adjustable
- Item NO.: SUNLEPHANT0006
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Other Electronic Modules
- Tag: Mono Voice Control Level Indicator , Music Melody Light , Audio Induction Light , 4-Color Mixed Sensitivity Adjustable
- Creation Time: 2024-06-08
Mono Voice Control Level Indicator
Product Parameters:
1. Size: 16cm long * 1.6cm wide;
2. Beads: 5mm round head fog LED, with uniform light and no glare (6 green, 6 blue, 4 yellow and 4 red from bottom to top);

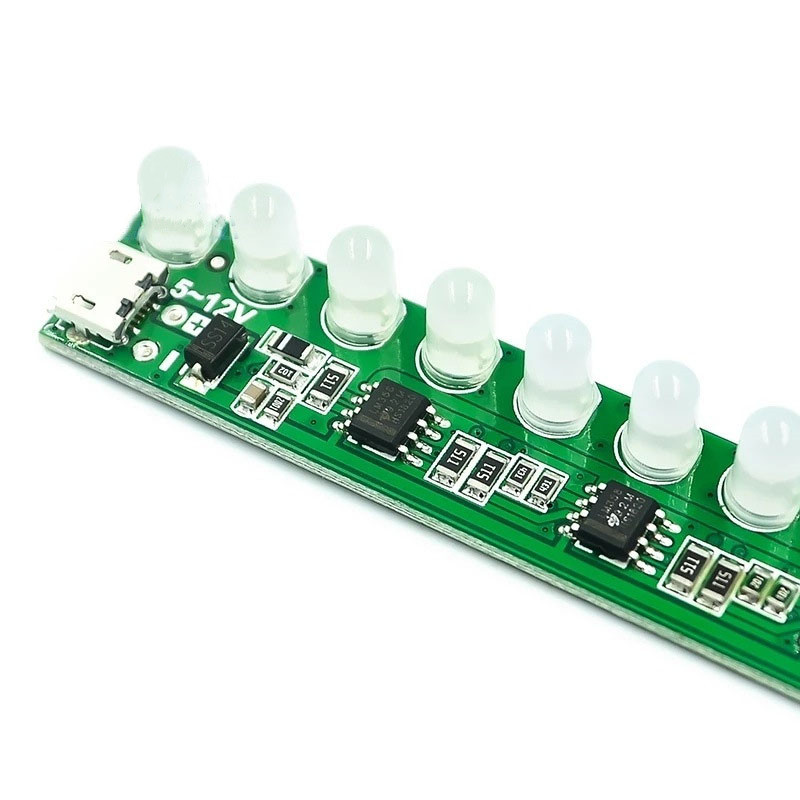

3. Power supply: DC 5V~12V can be used. The board is equipped with microUSB socket. You can plug the corresponding mobile phone charging cable into the power supply, and also reserve 2 pad openings;
Product Introduction:
The louder the sound, the more LED lights up from the bottom to the top. As the sound fluctuates, the LED will also jump with the music, especially when playing DJ.

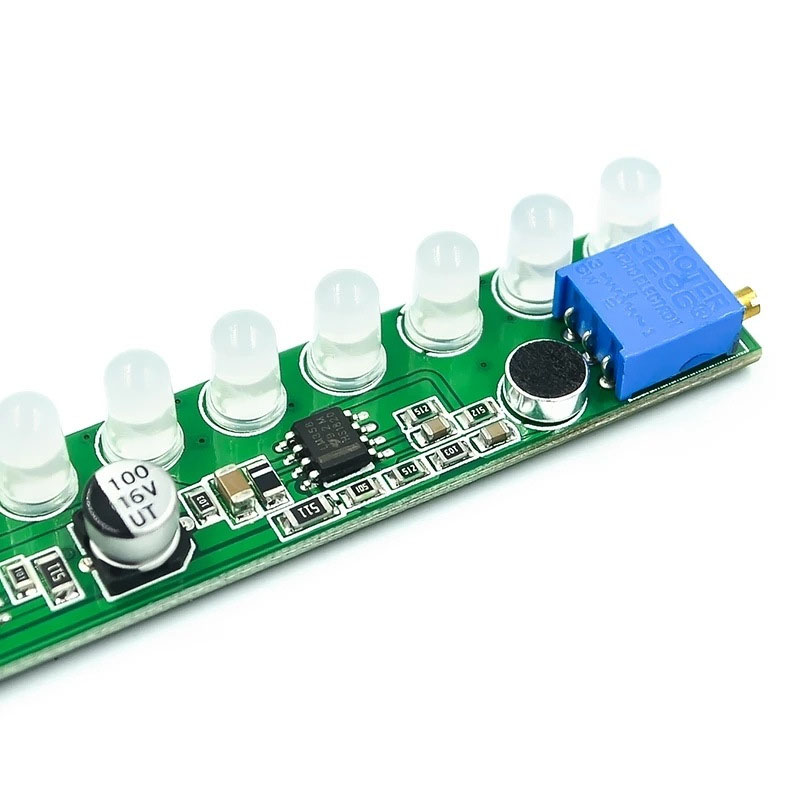

About signal input: the board has its own microphone, which can sense and receive the external sound source to control the flashing of LED lamp beads. The disadvantage is that the sensitivity is not as good as the line input, and it is easy to be affected by other external sounds.
If line input is required, this step is about audio signal (for example, the headphone hole of mobile phone or computer is not allowed to connect to the output of power amplifier or speaker. The signal is too strong. If it is really necessary to connect, the signal needs to be attenuated). The microphone can be removed, and the signal is directly introduced from the microphone. If the light is all on, adjust the potentiometer (counterclockwise lowering). This connection is recommended.
