Resistive Thin Film Pressure Sensor Module Suitable For The Development Of arduino Raspberry Pie MicrobitItem NO.: Pressure Sensor

Resistive Thin Film Pressure Sensor Module

Product Introduction:

This sensor module is based on a new type of nano pressure sensitive material supplemented by a disposable patch of ultra-thin film substrate with comfortable Young's modulus, and has both waterproof and pressure sensitive functions. When the sensor senses external pressure, the resistance value of the sensor changes. We use a circuit to convert the pressure signal sensed by the sensor into an electrical signal output with corresponding varying intensity. In this way, we can detect changes in electrical signals to obtain pressure changes.

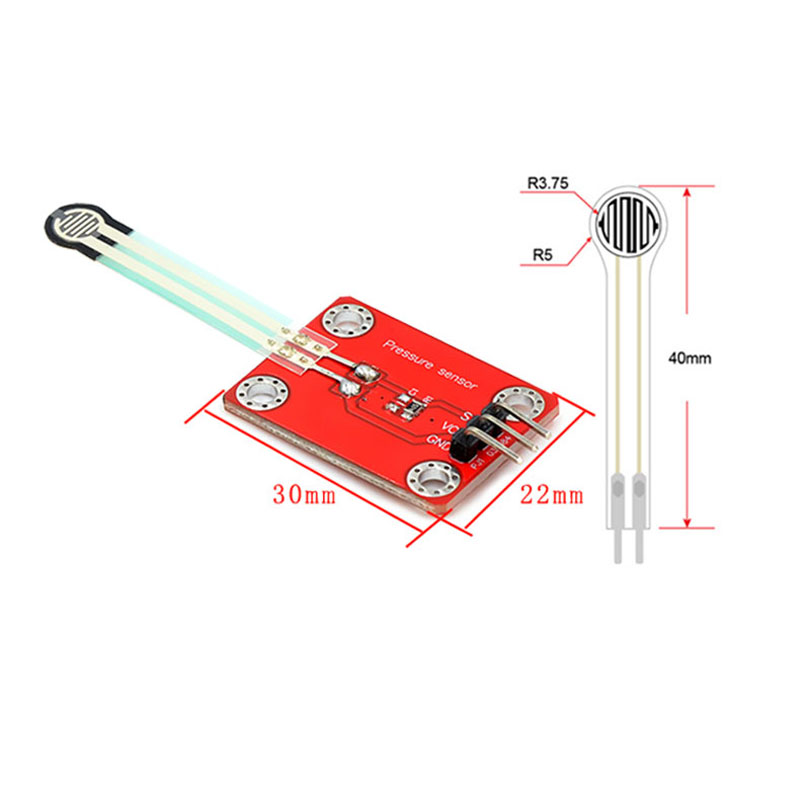

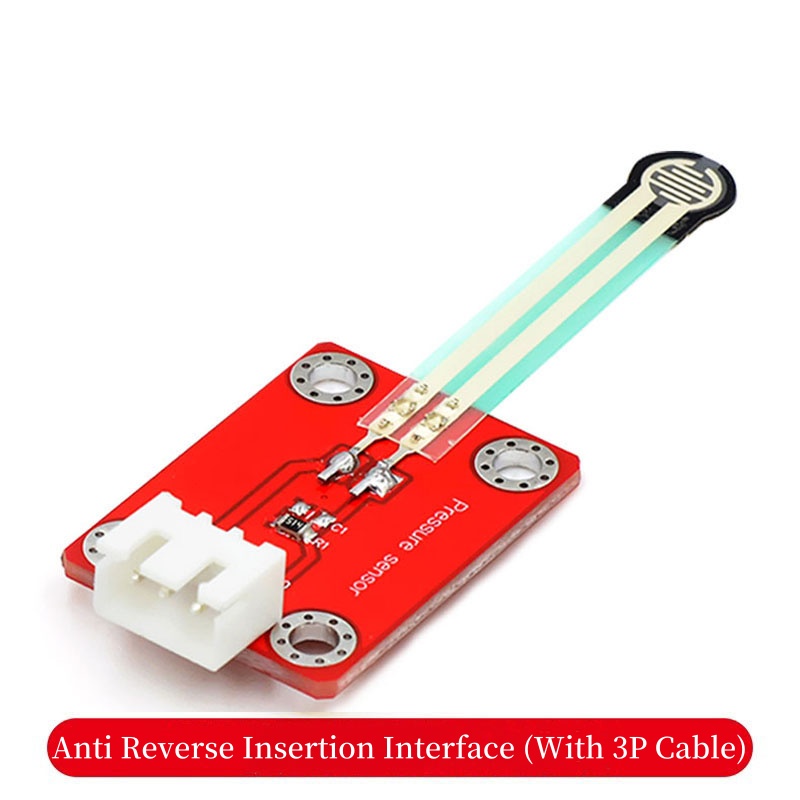

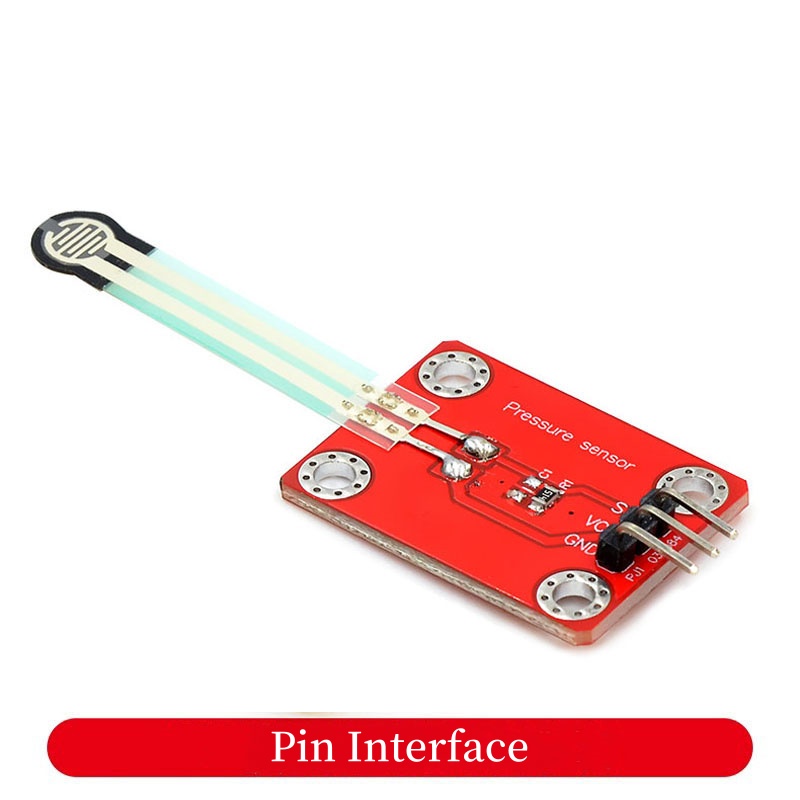

This module is compatible with various microcontroller control boards, such as the ARDUINO series microcontroller. The module contains 2 interfaces, which you can choose from. One is the anti reverse connection white terminal with a spacing of 2.54mm. When using it, we can stack a sensor expansion board on the microcontroller. The module is connected to its own wiring and then connected to the sensor expansion board, which is simple and convenient. The other is a row pin interface with a spacing of 2.54mm, which can be directly connected to a single chip computer using male to female DuPont cables.

Product Parameters:

● Conductor length: 200mm

● Working voltage: DC3.3~5V

● Interface: anti reverse connection interface/row pin interface

● Positioning hole size: 3mm diameter

● Control signal: module signal

● Range: 0~5KG

● Thickness:<0.3 mm

● Response point: 150g

● Repeatability:<± 9.7% (60% load)

● Consistency: ± 10%

● Durability:>1 million times

● Initial resistance: greater than 10MN (no load)

● Response time:<1ms

● Recovery time:<15ms

● Working temperature: - 20 degrees to 60 degrees
