Single Section Double MSO 3.7V Protective Plate With Iron Sheet Can Be Spot Welded For 18650 Polymer Lithium Battery PackItem NO.: MSO3.7V
-
Customized Requirements
- Quantity
-
-
- Product Name: Single Section Double MSO 3.7V Protective Plate With Iron Sheet Can Be Spot Welded For 18650 Polymer Lithium Battery Pack
- Item NO.: MSO3.7V
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 18650 , 3.7V , Single Section Double , MSO , Protective Plate , With Iron Sheet , Can Be Spot Welded , Polymer Lithium Battery Pack
- Creation Time: 2024-03-24

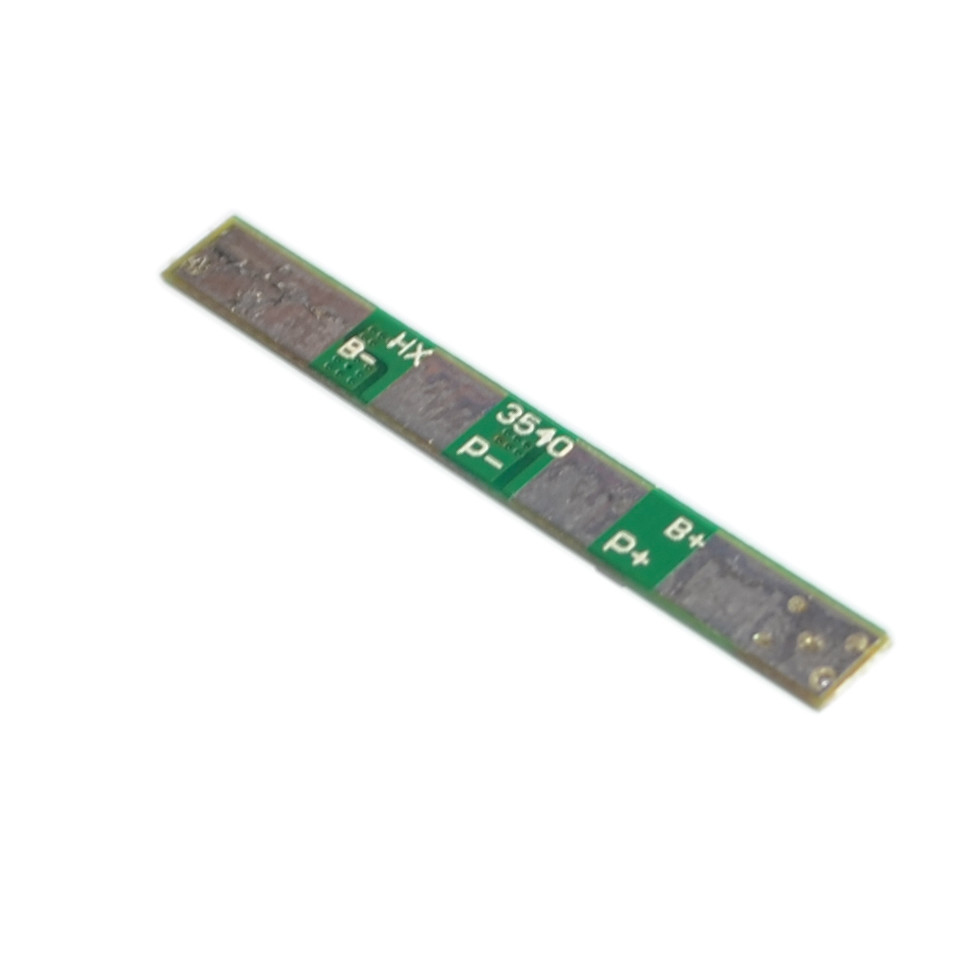

Single Section Double MSO 3.7V Protective Plate
Technical Parameters:
Overcharge detection voltage: 4.25 ± 0.05V
Overcharge release voltage: 4.23 ± 0.05V
Overdischarge detection voltage: 2.45 ± 0.1V
Upper limit continuous current: 4A
Overcurrent detection current: 5A
Charging voltage: 4.2V
Product size: 35 * 4 * 2.2MM
IC component: DW01+8205A * 2
Main Functions:
Overcharge protection, over discharge protection, short circuit protection, over current protection
Wiring Instructions:
B+is connected to the positive pole of the battery.
B - Connect to the negative electrode of the battery.
P+is the output and input positive pole of the battery pack
P - is the output and input negative pole of the battery pack
