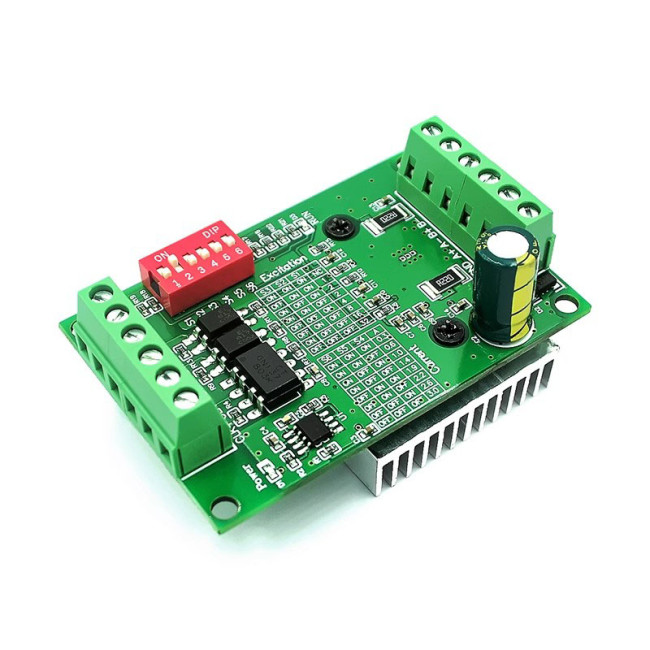

TB6560 TB6600 Upgraded Version 3A 32 Subdivision 4257 Stepper Motor Driver Motor Drive BoardItem NO.: TB67S109
-
Customized Requirements
- Quantity
-
-
- Product Name: TB6560 TB6600 Upgraded Version 3A 32 Subdivision 4257 Stepper Motor Driver Motor Drive Board
- Item NO.: TB67S109
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Other Electronic Accessories > Intelligent Car Accessories
- Tag: Upgraded Version , 3A , TB6600 , 32 Subdivision , TB6560 , 4257 Stepper Motor Driver , Motor Drive Board
- Creation Time: 2024-03-28

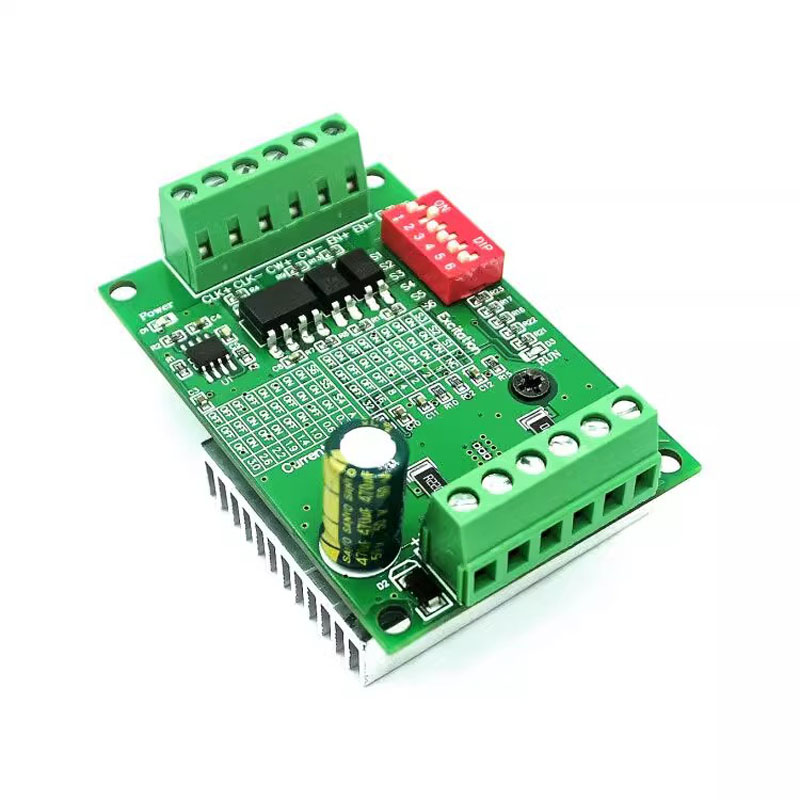

TB6560 TB6600 Upgraded Version
Product Information:
1) Working voltage DC 10V-35V. It is recommended to use a switching power supply DC24V for power supply.
2) Adopting 6N137 high-speed optical coupling to ensure high-speed without losing step.
3) The TB67S109 driver chip is used, with low-voltage shutdown, overheat shutdown, and overcurrent protection circuits inside to ensure performance.
4) Rated output: ± 3A, peak 3.5A.
5) Suitable for two phase/four phase/four wire/six wire stepper motors with steps up to 3A for 42 and 57, not suitable for stepper motors exceeding 3A.
6) Automatic half flow function.
7) Subdivision: full step, half step, 1/8 step, 1/16 step, 16 subdivision.

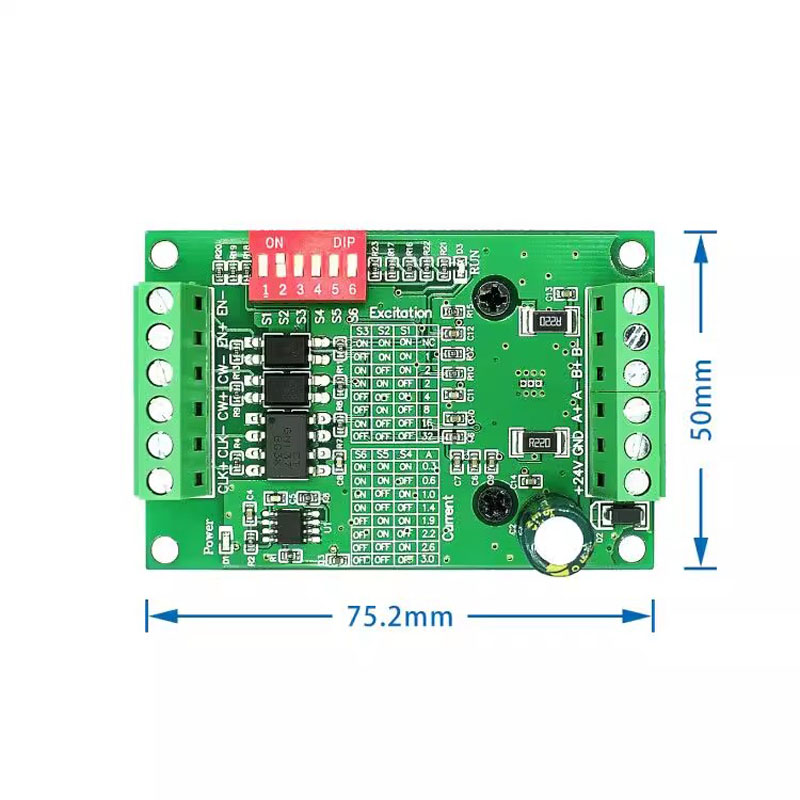

8) Volume: Width 50 * Length 75 * Height 35 (MM)
