USB to TTL Module PL2303HX Module STC STM32 Download Cable Brush Cable Zhongjiu Upgrade CableItem NO.: PL2303HX STC STM32
-
Customized Requirements
- Quantity
-
-
- Product Name: USB to TTL Module PL2303HX Module STC STM32 Download Cable Brush Cable Zhongjiu Upgrade Cable
- Item NO.: PL2303HX STC STM32
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Other Electronic Modules
- Tag: USB to TTL Module , PL2303HX Module , STC STM32 Download Cable
- Creation Time: 2024-04-13

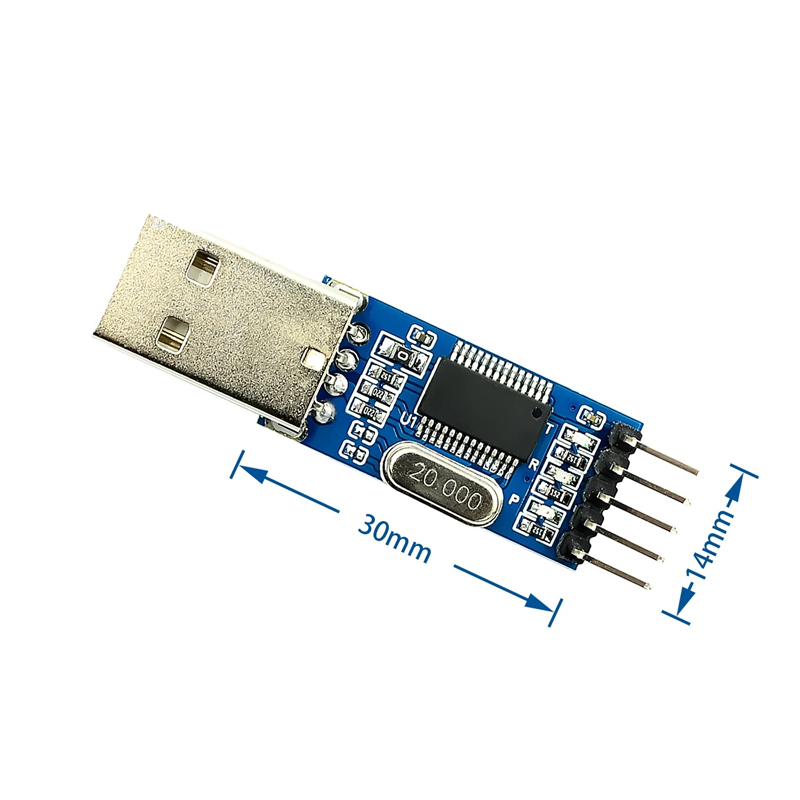

USB to TTL Module PL2303HX
Product Application:
1. Various satellite set-top box upgrades
2. Upgrade or crack firmware for routers, hard drives, ADSL, and broadband cats
3. Mobile phone, XBOX360, GPS serial communication, car detection, DVD flash, etc
4. Burn and write STC microcontroller, NXP microcontroller, Reza microcontroller, NEC microcontroller, etc
5. Simple serial communication and commonly used serial debugging tools in terminals
6. USB signal to TTL signal that electronic enthusiasts can use
Product Fatures:
1. Adopting a new control chip PL2303HX, it can stably brush the machine at high speed
2. With 500mA self recovery fuse overcurrent protection
3. Set two data transmission indicator lights to monitor the data transmission status in real time

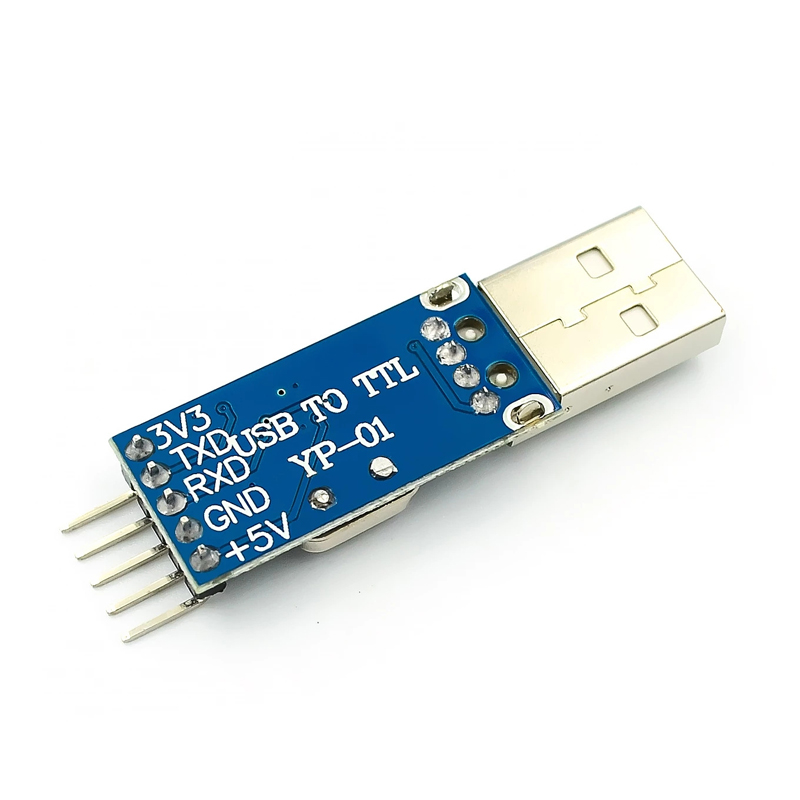

4. Reserve 3.3V and 5V pin interfaces for convenient brushing of different voltage systems that require power supply
5. The interface pins are installed parallel to the board, rather than perpendicular to the board, facilitating the introduction of DuPont wires during machine brushing
6. The entire circuit board is covered with high-quality transparent heat shrink sleeves, which insulates the PCB circuit from the outside and protects the board from accidental metal short circuits and burning. Due to the use of transparent materials, it does not affect the viewing effect of interface screen printing and indicator light monitoring on the board
7. Support for WIN7 system
