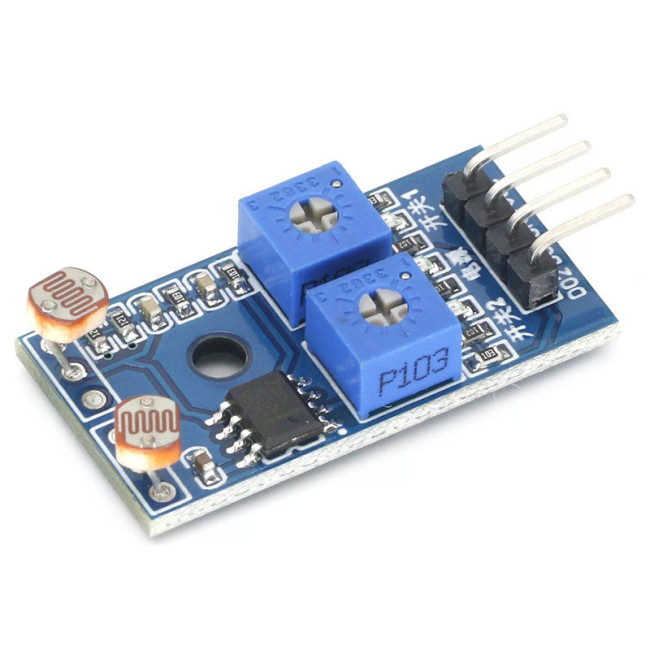

2-Way Photoresist Sensor Module Light Detection Photoresist Module Accessories 5516 PhotoresistItem NO.: SUNLEPHANT0005
-
Customized Requirements
- Quantity
-
-
- Product Name: 2-Way Photoresist Sensor Module Light Detection Photoresist Module Accessories 5516 Photoresist
- Item NO.: SUNLEPHANT0005
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: Light Detection , 2-Way Photoresist Sensor Module , Photoresist Module
- Creation Time: 2024-05-05

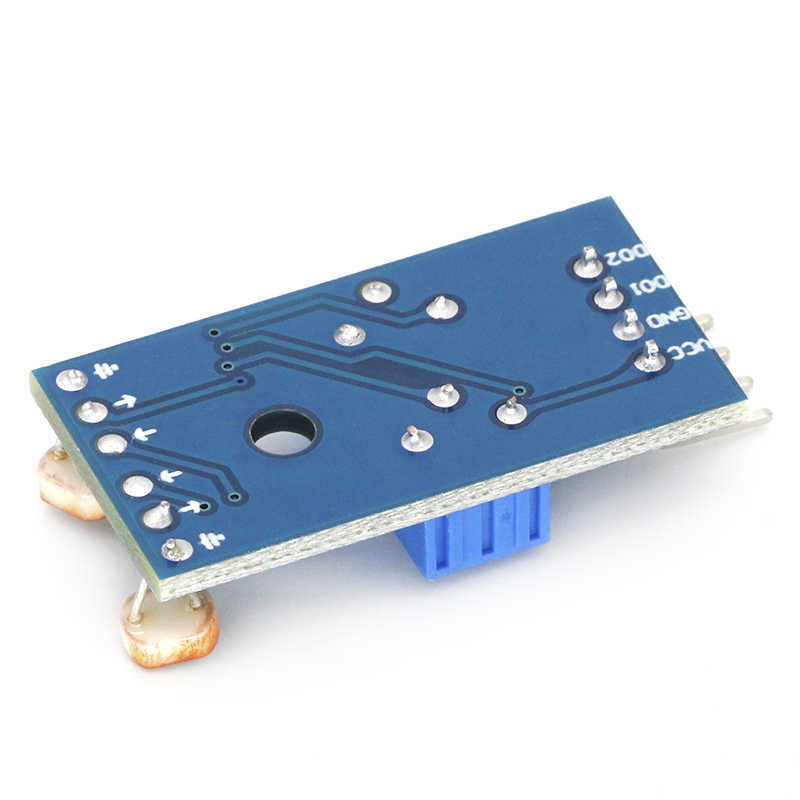

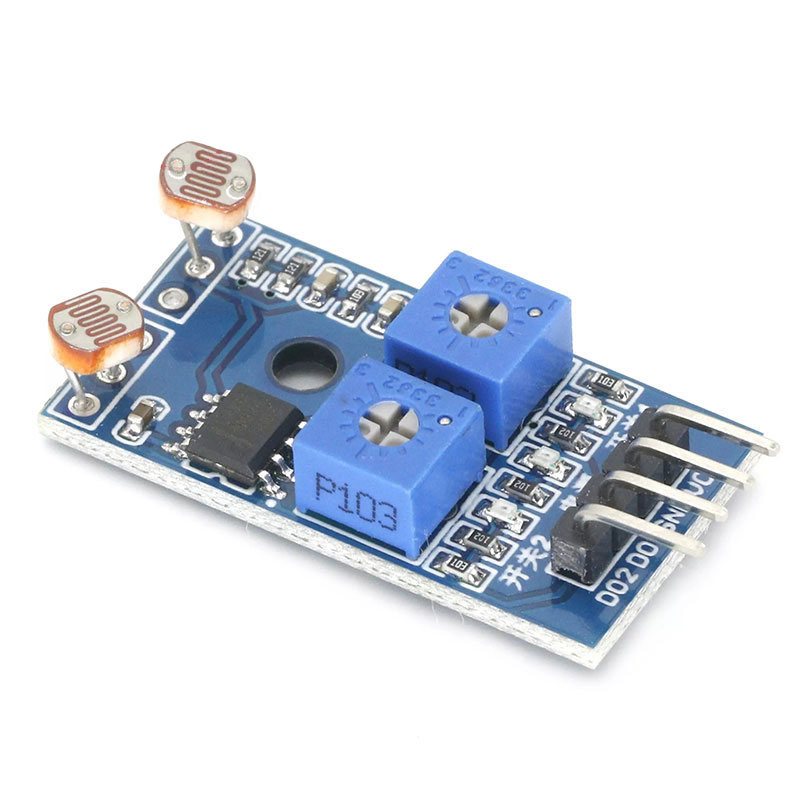

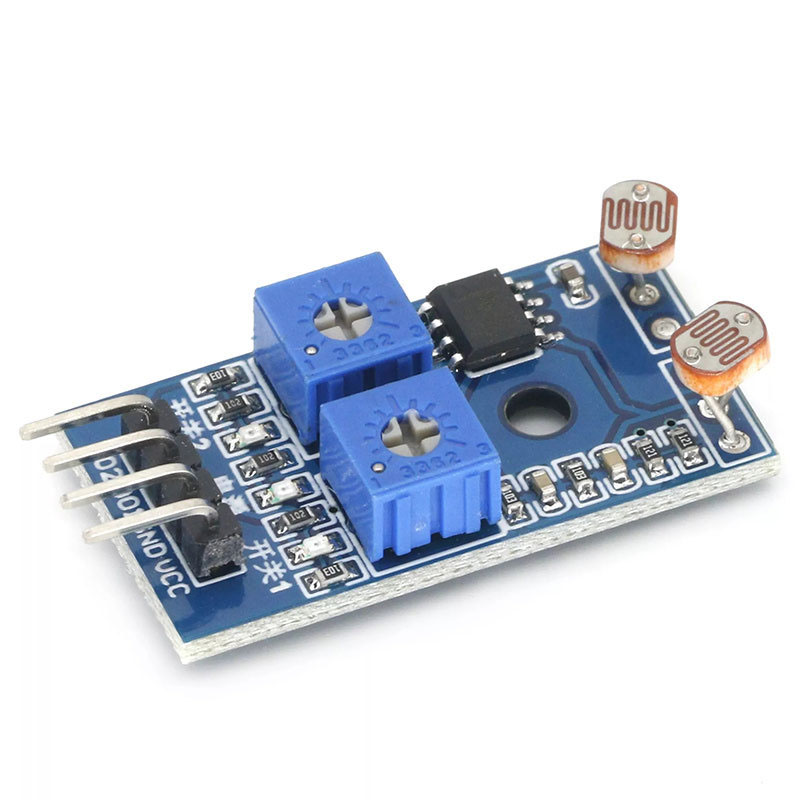

2-Way Photoresist Sensor Module
Purpose:
Various light brightness detection, 2-way detection, 2-way simultaneous control
Module Features:
1. Use photosensitive resistance sensor
2. Comparator output, clean signal, good waveform, strong driving capacity, over 15mA
3. Adjust sensitivity with potentiometer
4. Working voltage 3.3V-5V
5. Output form: digital switching output (0 and 1)
6. With fixed bolt holes for easy installation
7. Small PCB size: 32mm * 17mm
8. Use wide voltage LM393 comparator
Instructions:
1. The photoresistor module is sensitive to the ambient light and is generally used to detect the brightness of the ambient light
2. The module outputs a high level when the ambient light brightness cannot reach the set threshold, and a low level when the ambient light brightness exceeds the set threshold
3. The output end can be directly connected with the single chip computer, and the high and low levels can be detected through the single chip computer, so as to detect the change of ambient light brightness
4. The output end can directly drive the relay module, thus forming a light-controlled switch
