DC-DC Boost Module 70W High Power Vehicle Notebook Power Supply Industrial Power Step-Up Module 8A Super 2587Item NO.: MK00813

DC-DC Boost Module 8A 70W

Product Information:

70W boost module, 6-32V wide input voltage, 6-42V/60V adjustable output voltage, ultra-low input and output voltage difference.

Module Parameters:

● Module Name: 70W Booster Module

● Module nature: Non isolated boost module (BOOST)

● Input voltage: 6-32V input (limit 35V)

● Input current: 8A (MAX) If it exceeds 6A, please strengthen heat dissipation

● Static working current: 15mA (when 12V rises to 20V, the higher the output voltage, the more static current will increase)

● Output voltage: 6-42V continuously adjustable (default output 19V, if other voltages are needed, please explain to the shopkeeper.) 6-42V fixed output (for bulk customers), optional 6-60V output, the price is the same. If needed, please take a picture and leave a message.

● Output current: 5A MAX over 3A, please strengthen heat dissipation (related to input and output pressure differences, the larger the pressure difference, the smaller the output current)

● Output power:=input voltage * 6A, such as: input 6V * 6A=36W, 12V * 6A=72W, input 24V * 6A=144W,

● Operating temperature: -40~+85 degrees (please strengthen heat dissipation when the ambient temperature is too high)

● Operating frequency: 150KHz

● Conversion efficiency: up to 96% (efficiency is related to input and output voltage, current, and voltage difference)

● Overcurrent protection: Yes

● Short circuit protection: Yes (soft short circuit protection, stop boosting in case of short circuit, and automatically recover when short circuit is relieved)

● Input reverse protection: None, (if necessary, please input a diode in series)

● Installation method: 4 3mm screws

● Wiring method: Welding free output of wiring terminals

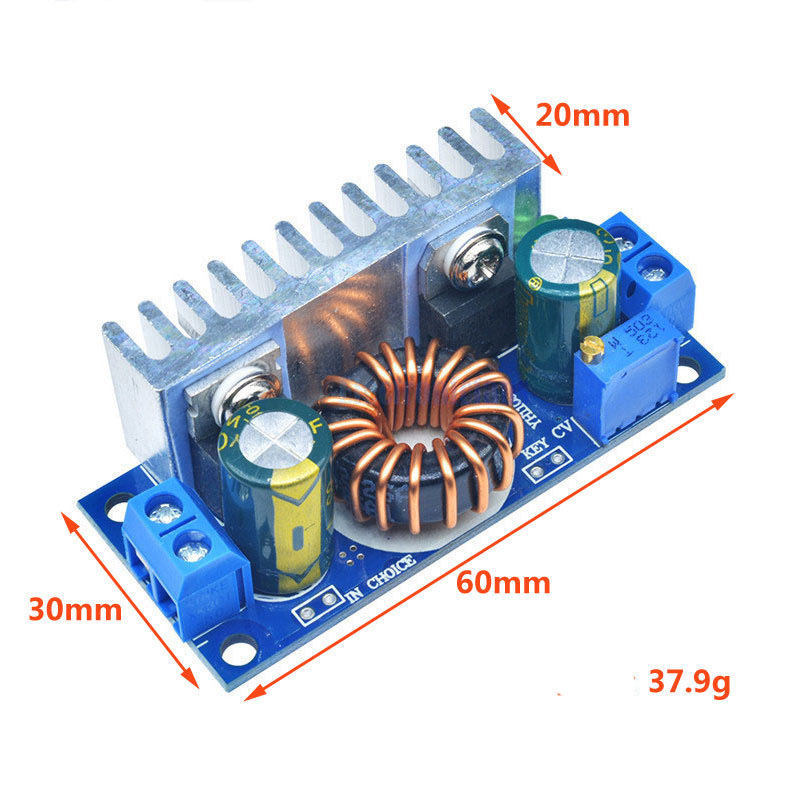

● Module size: 60mm long, 30mm wide, and 20mm high

● Module unit weight: 37.9 grams

Application Scope:

1. DIY is a regulated power supply that can input 12V and output 12-46V/60V adjustable.

2. To power your electronic device, you can set the output value according to your system voltage.

3. As a car power supply, it can power your laptop, PDA, or various digital products. You can choose to equip it with a high-end thickened sanded aluminum alloy shell, which directly knocks off ordinary car power supplies or inverters on the market. It is your best choice for those who like metal texture.

4. DIY A high-power laptop mobile power supply: paired with a large capacity 12V lithium battery pack, your laptop can light up wherever you go
