Home>Electronic Modules>Other Electronic Modules>3590S-2-103L/10K 20K 50K 100K Precision Multi turn Potentiometer (10 turns) Adjustable Resistance
3590S-2-103L/10K 20K 50K 100K Precision Multi turn Potentiometer (10 turns) Adjustable ResistanceItem NO.: 3590S-2
US$ 4.25
-
Customized Requirements
- Quantity
-
Adding to cart succeed
3590S-2-103L/10K 20K 50K 100K Precision Multi turn Potentiometer (10 turns) Adjustable Resistance
color:red,size:xxl
Subtotal: US$ 0
View My Cart
-
- Product Name: 3590S-2-103L/10K 20K 50K 100K Precision Multi turn Potentiometer (10 turns) Adjustable Resistance
- Item NO.: 3590S-2
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Other Electronic Modules
- Tag: (100R)101 , (200R)201 , (500R)501 , (1K)102 , (2K)202 , (5K)502 , (10K)103 , (20K)203 , (50K)503 , (100K)104 , 3590S-2-103L , Potentiometer , Adjustable Resistance
- Creation Time: 2024-04-16

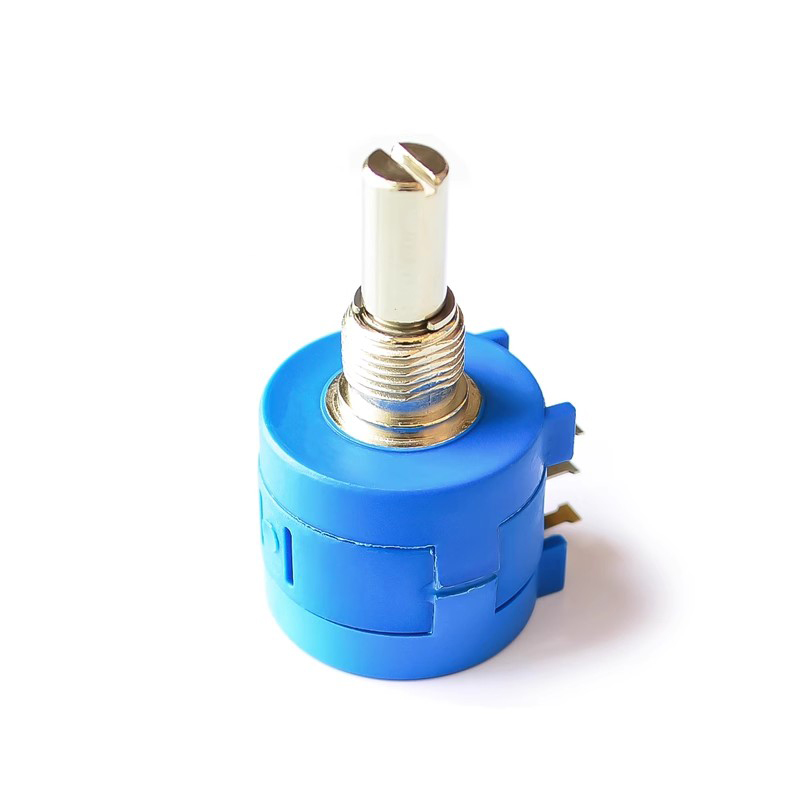

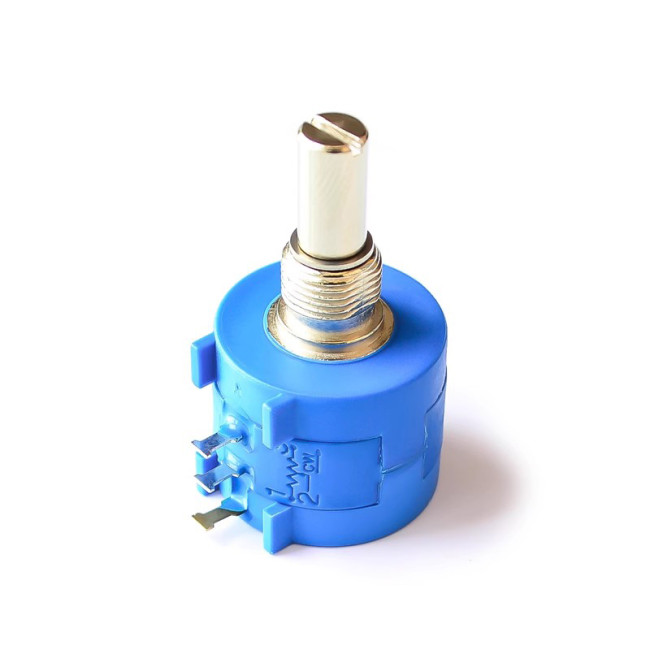

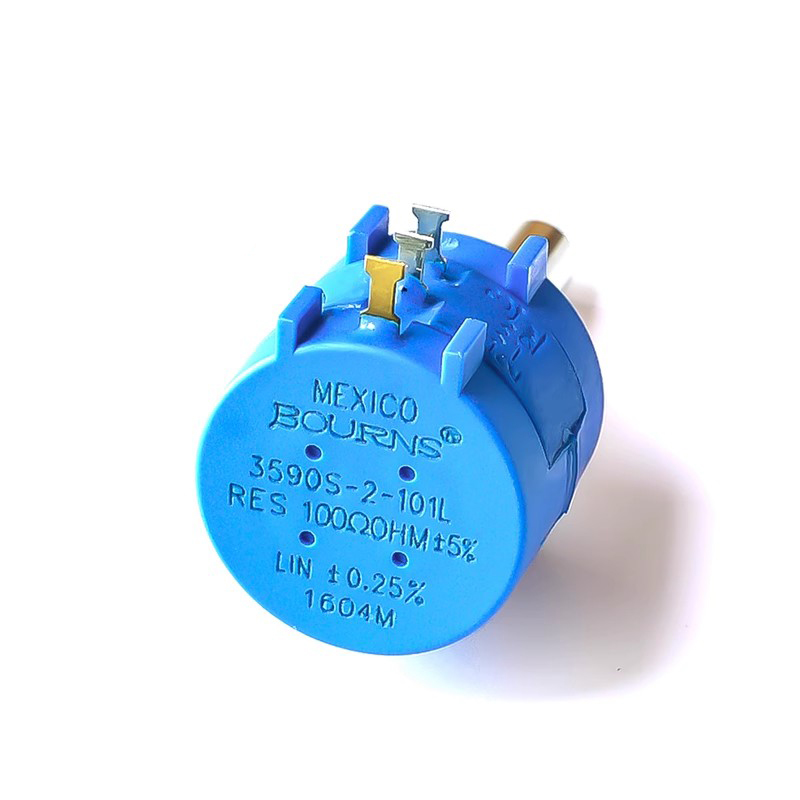

3590S-2-103L Potentiometer
Product Information:
Laps: 10
Fixed screw installation aperture: 9.0mm
Resistance tolerance: ± 5%. Independent linear accuracy: ± 0.25%
Power: 2W
Effective electronic angle: 3600 °+10 ° -0 °
Environmental characteristics: Operating temperature range:+1 ℃ - - -+125 ℃, storage temperature: -55 ℃ - -+125 ℃
Rotation life: 1000000 revolutions
Load life: 1000 hours
Mechanical characteristics: Mechanical angle: 3600 °+10 ° -0 °
Shaft diameter: 6.35mm
