1 Bit WS2812B Serial 5050 Full-Color Drive LED Module Electronic Building BlockItem NO.: WS2812-1Bit serial
-
Customized Requirements
- Quantity
-
-
- Product Name: 1 Bit WS2812B Serial 5050 Full-Color Drive LED Module Electronic Building Block
- Item NO.: WS2812-1Bit serial
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Other Electronic Modules
- Tag: 1 Bit , WS2812B Serial 5050 , Full-Color Drive LED Module
- Creation Time: 2024-06-08

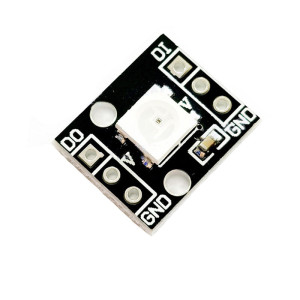

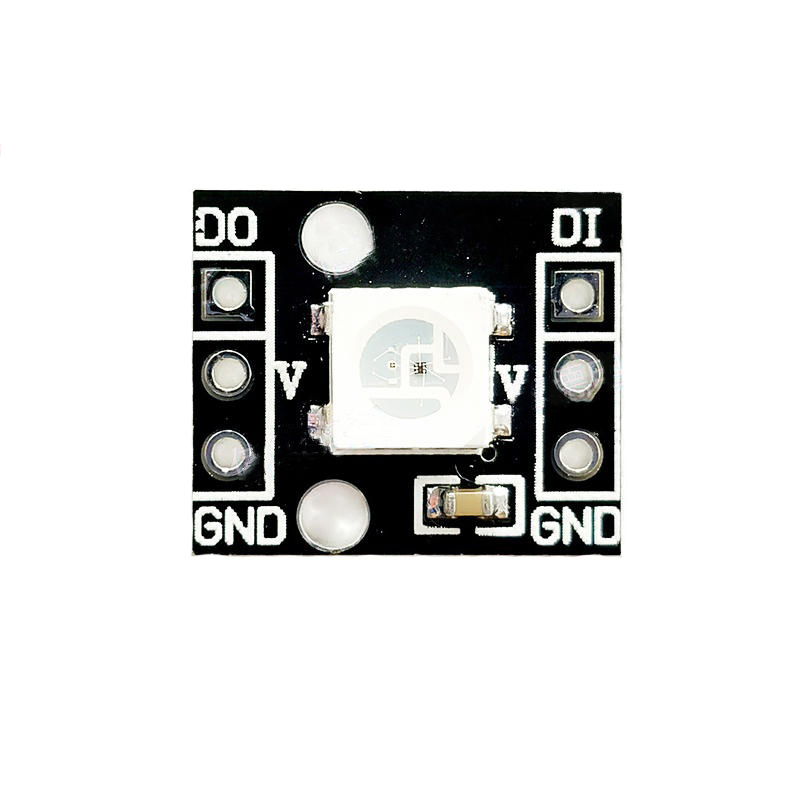

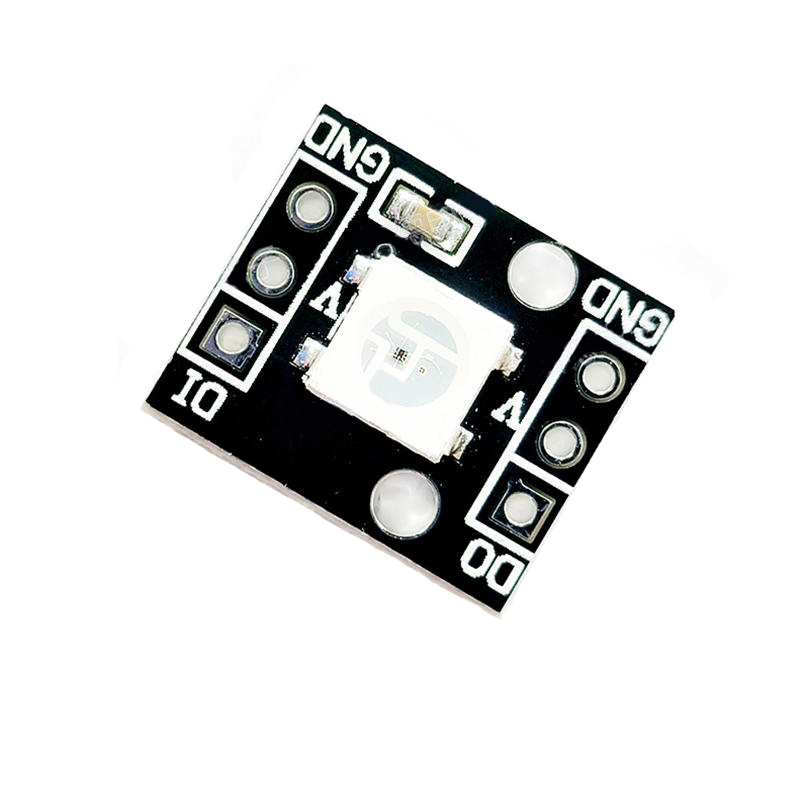

1 Bit WS2812B Serial 5050
Product Parameters:
● Size: 14 * 12mm
● Chip: WS2812B (built-in in LED)
● LED: 5050 encapsulated RGB full-color highlight
● Voltage: 5V
● Port: digital
● Platform: Arduino, 51, stm32 and other single-chip computers
Product Features:
● 5050 bright LED, built-in control chip, only one IO port can control multiple LEDs
● The chip has a built-in shaping circuit, so the signal distortion will not accumulate and the display will be stable
● 256 levels of brightness adjustment for three primary colors, 160000 true color display effect, scanning frequency not less than 400Hz/S
● Serial serial serial interface, capable of receiving and decoding data through a signal line
● When the refresh rate is 30 frames/second, the continuous number of low-speed continuous mode is not less than 512 points
● Data transmission speed can reach up to 800Kbps
● High brightness LED, high consistency of light color and brightness
● With cascade output terminal, more LED modules can be connected
