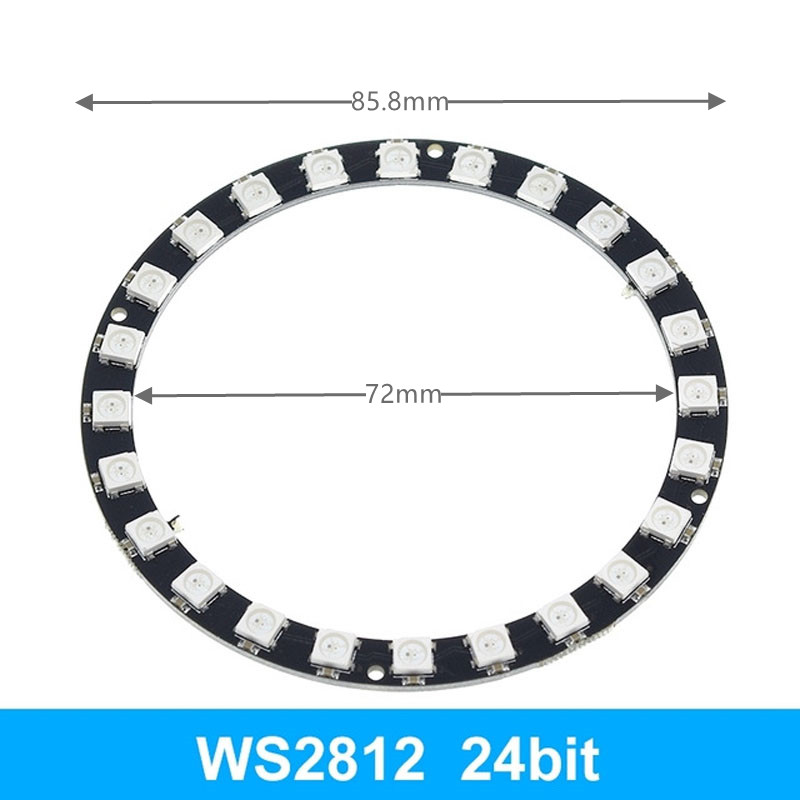

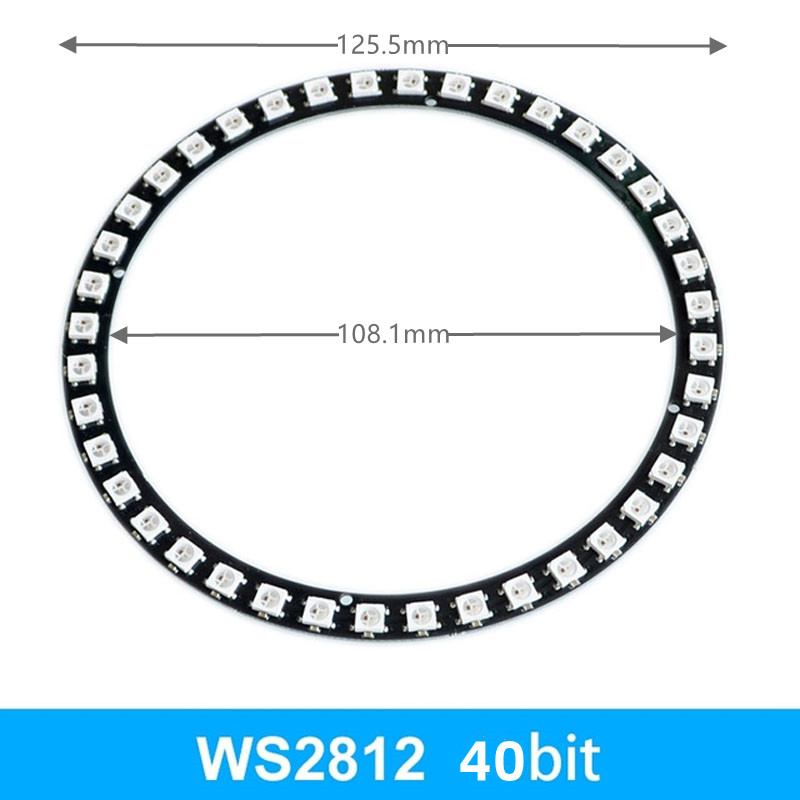

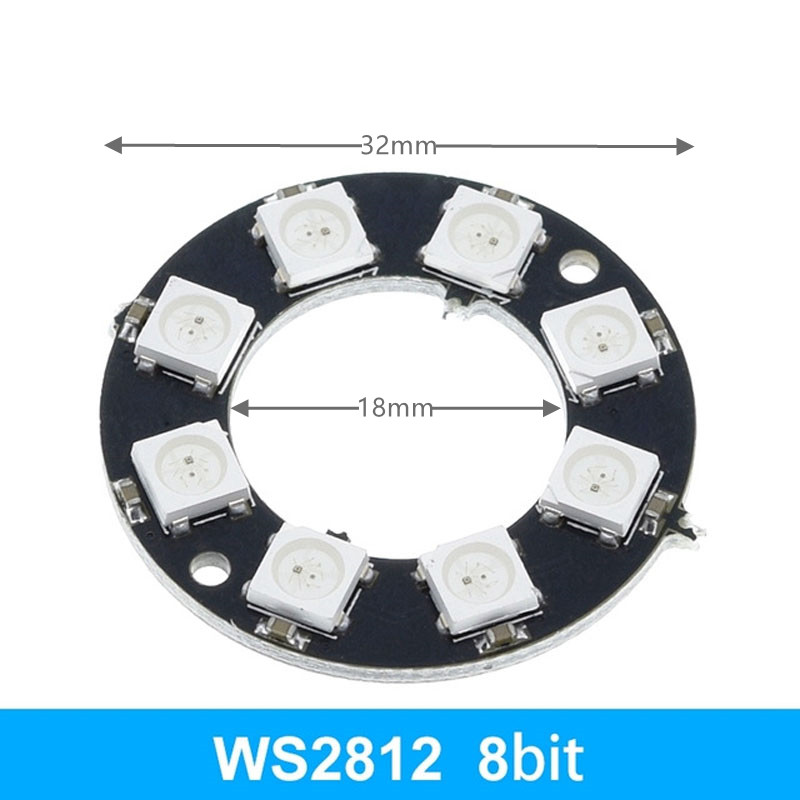

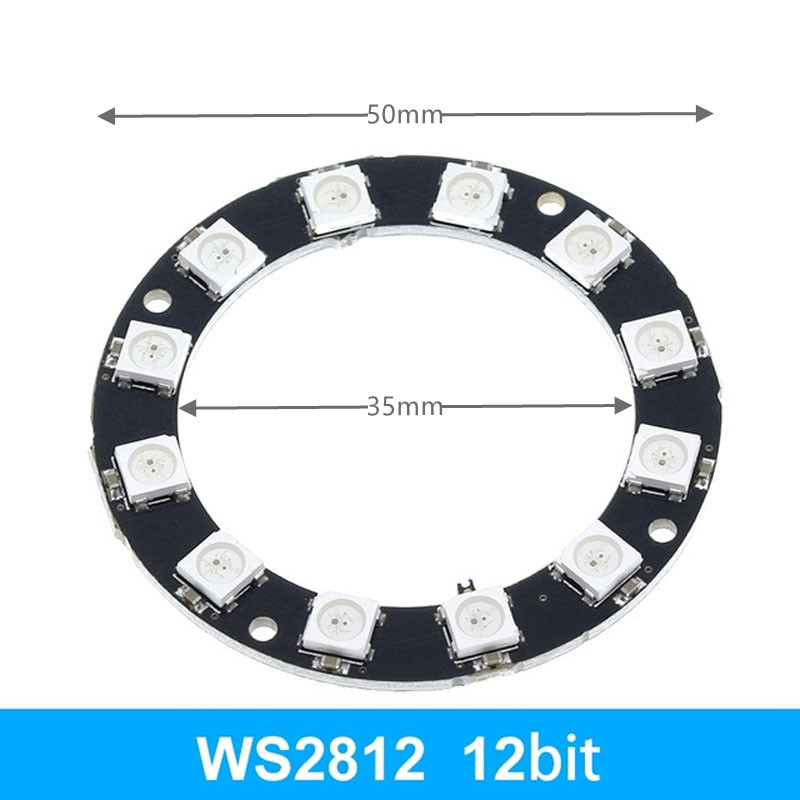

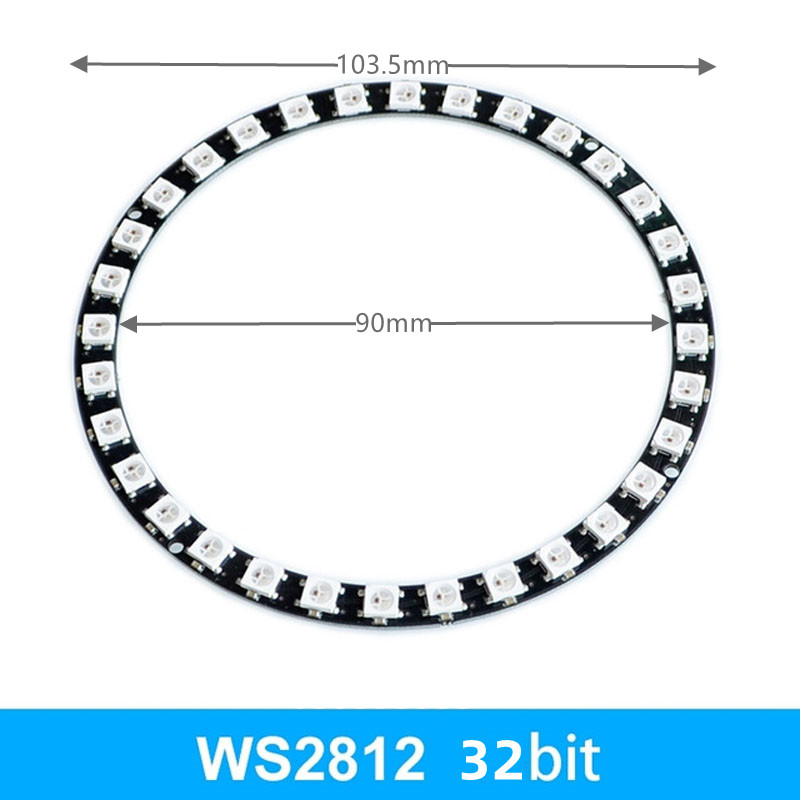

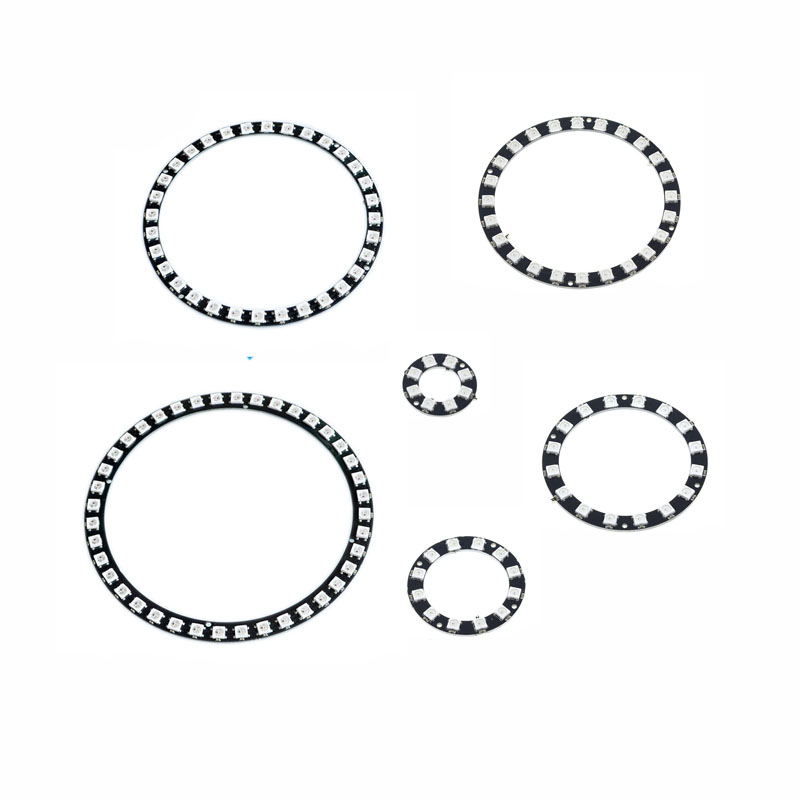

8/12/16/24/32/40 Bit WS2812 5050 RGB LED Built-In Full-Color Driving Color Light Module Ring Development BoardItem NO.: WS2812ring

8/12/16/24/32/40 Bit WS2812 5050 Ring

Product Overview:

WS2812B is an intelligent externally controlled LED light source integrating control circuit and luminous circuit. Its appearance is the same as a 5050LED lamp bead, and each element is a pixel point. The interior of the pixel contains an intelligent digital interface data latch signal shaping and amplification drive circuit, as well as a high-precision internal oscillator and a 12V high-voltage programmable constant current control part, which effectively ensures that the color of the pixel light is highly consistent.

The data protocol adopts the single-line zero-return code communication mode. After the pixel point is powered on and reset, the DIN terminal receives the data transmitted from the controller. The first 24bit data sent is extracted by the first pixel point, and then sent to the data latch inside the pixel point. The remaining data is reshaped and amplified by the internal shaping processing circuit, and then transmitted to the next cascaded pixel point through the DO port. After each pixel point is transmitted, The signal is reduced by 24 bits. Automatic shaping and forwarding technology is adopted for pixel points, so that the number of cascaded pixels is not limited by signal transmission, but only limited by signal transmission speed.

LED has the advantages of low voltage drive, environmental protection and energy saving, high brightness, large scattering angle, good consistency, ultra-low power, ultra-long life, etc. By integrating the control circuit onto the LED, the circuit becomes simpler, smaller and easier to install.

Main Features:

● Intelligent reverse connection protection, the reverse connection of power supply will not damage the IC.

● The IC control circuit shares a power supply with the LED point light source.

● The control circuit and RGB chip are integrated in a 5050 package of components to form a complete external control pixel.

● Built-in signal shaping circuit, any pixel receives the signal and then outputs it after waveform shaping to ensure that the line waveform distortion will not accumulate.

● Built-in power-on reset and power-off reset circuits.

● The three primary colors of each pixel can achieve 256 levels of brightness display, complete full color display of 16777216 colors, and the scanning frequency is not less than 400Hz/s.

● Serial cascade interface, which can receive and decode data through a signal line.

● There is no need to add any circuit when the transmission distance between any two points is not more than 5 meters.

● When the refresh rate is 30 frames/second, the number of cascades is not less than 1024 points.

● Data transmission speed can reach 800Kbps.

● The color of light is highly consistent and cost-effective.

Main Application Fields:

● LED full-color luminous character light string,

● LED full-color module,

● LED full-color soft light bar hard light bar,

● LED guardrail tube.

● LED point light source,

● LED pixel screen,

● LED special-shaped screen,

● All kinds of electronic products, electrical equipment and running lamps.
