9-50V Motor Governor 2000W With Shell 40A DC Brush Motor Governor Dimming And Temperature Regulating ModuleItem NO.: MK02889

9-50V Motor Governor 2000W

Product Information:

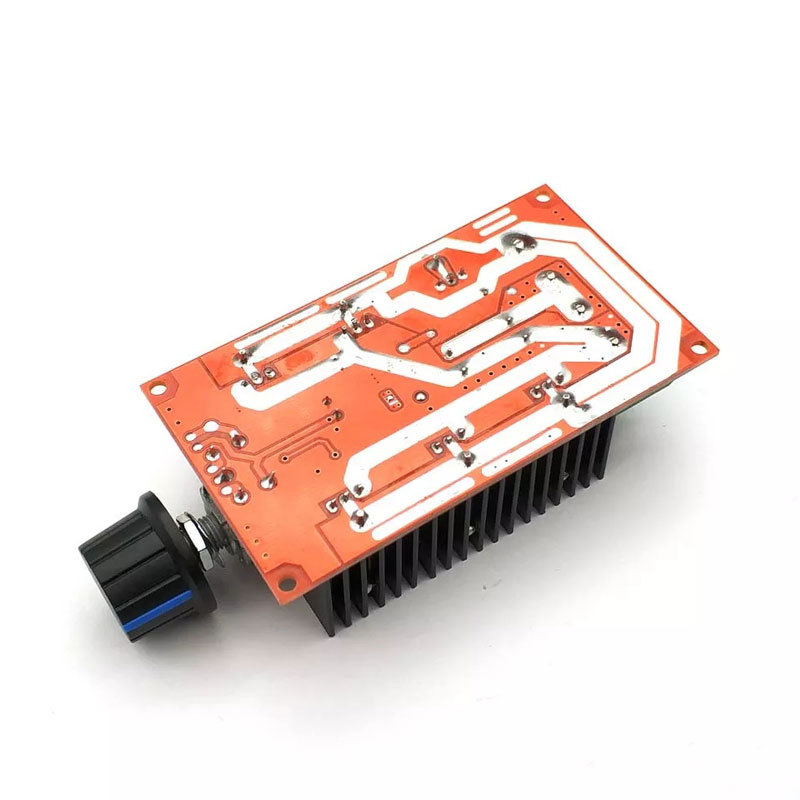

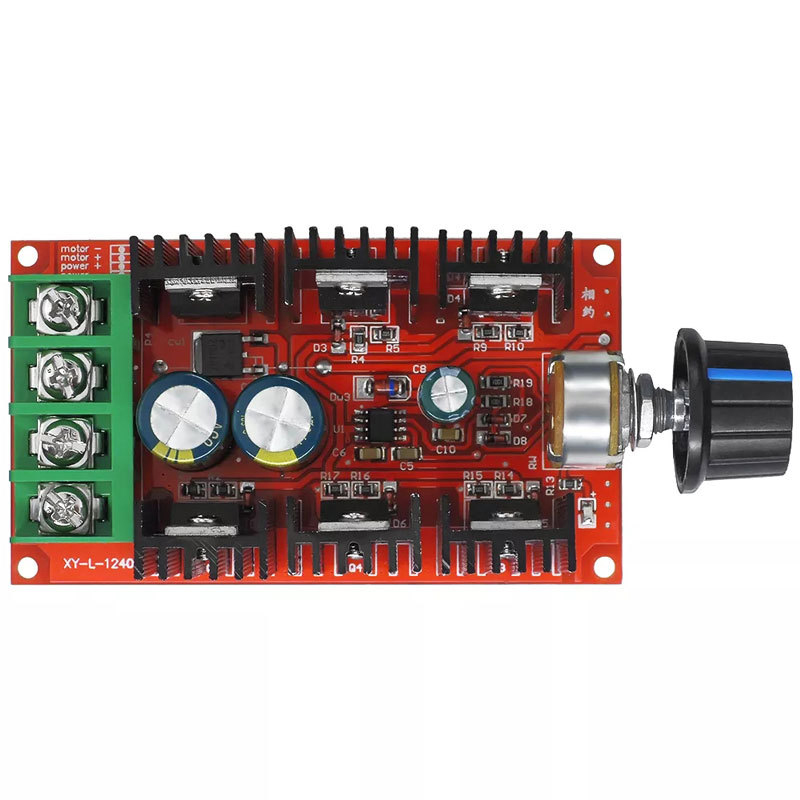

IMDN12 type DC governor. This governor is a 9-50V universal DC governor. The use of imported field-effect power transistor/imported specialized speed control drive IC/PCB is made of a thick copper sheet with a thickness of 70 microns at a frequency of 2 oz, and the high current balanced PCB layout makes the output PWM waveform perfect and more efficient.

The IMDN12-40A DC governor is positioned as an entry-level industrial governor with features such as small volume, wide voltage, high current, low temperature rise, high reliability, and low price

Technical Indicators:

(1) Working voltage: DC 9V-50V, wide working voltage range

(2) Control power: 0.01-2000W (maximum instantaneous current 40A, long-term working current should be controlled within 20A) Different working voltages correspond to different control powers as follows;

When the working voltage is 12V, 12V * 40A=480W

When the working voltage is 24V, 24V * 40A=960W

When the working voltage is 36V, 36V * 40A=1440W

When the working voltage is 40V, 40V * 40A=1600W

When the working voltage is 50V, 50V * 40A=2000W

(3) Static current: 0.025A (the static current will not exceed 25ma when the working voltage is between DC10V and DC50V)

(4) PWM duty cycle: 5% -100%

(5) PWM frequency: 12khz

(6) Working temperature: -20-40 (ambient temperature -20 degrees below zero to -40 degrees above zero) This governor is of industrial grade quality and can operate stably in environments below zero. Generally, commercial grade governors cannot operate stably below zero.

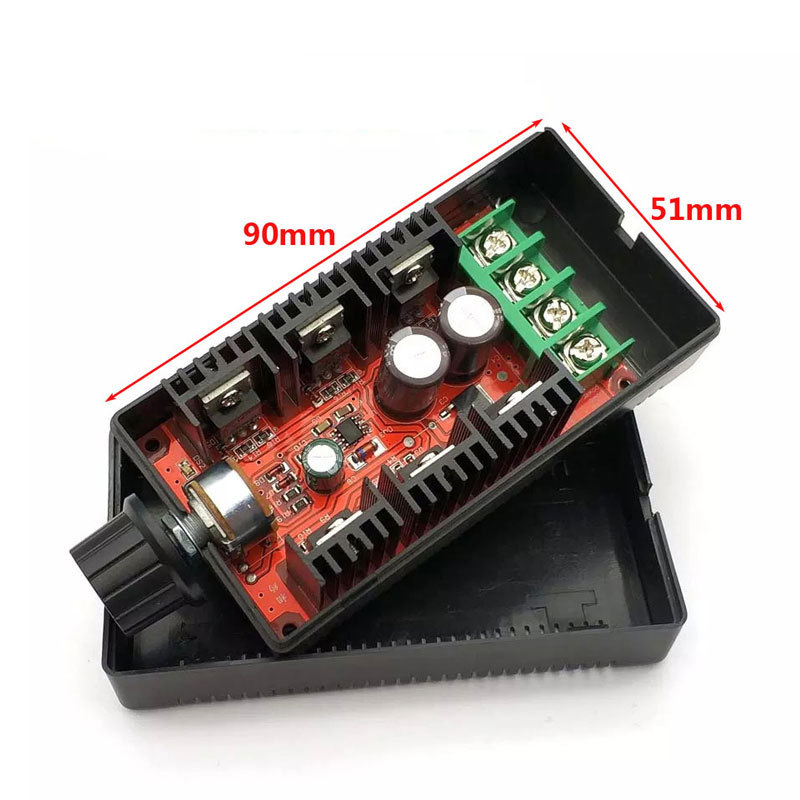

(7) External dimensions of circuit board: 90mm long, 51mm wide, and about 30mm high (excluding the adjustment part of Potentiometer)

Explanation:

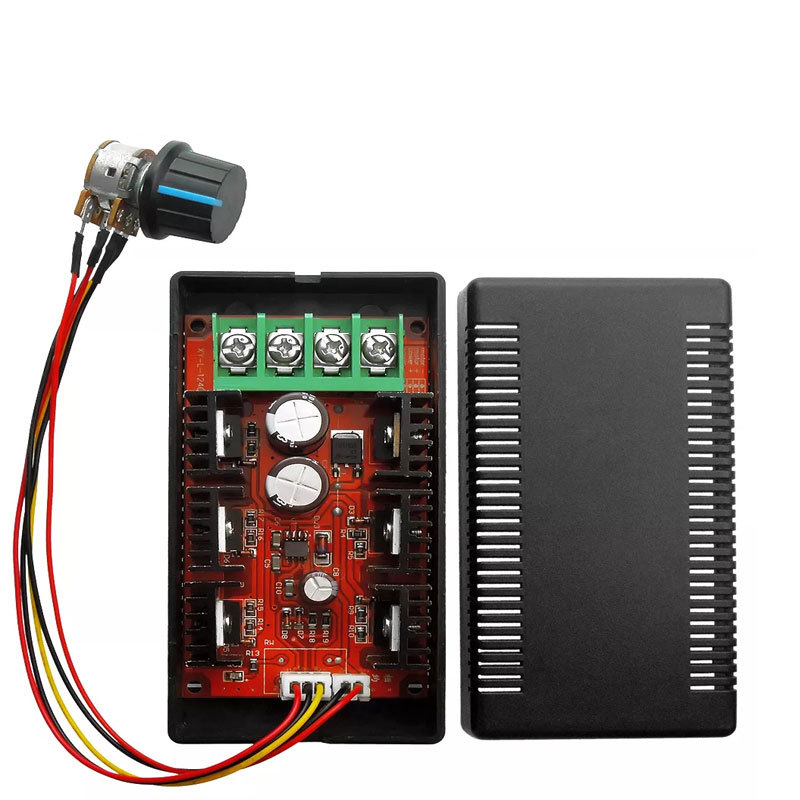

1. When delivering, the Potentiometer is removed and placed inside the housing, so as to prevent the product from being damaged during transportation.

2. When wiring, it is important to note that the positive and negative poles of the power supply must not be reversed. Reverse connection is equivalent to a short circuit, and high current can instantly burn out the governor. Please wire according to the instructions next to the terminal post.

3. The governor is a DC governor, and the power supply must be within 9-50V of DC power.

Main Purpose:

1. Various universal DC brush motors for speed regulation

2. Various types of motor speed regulation for automobiles (cooling fan speed regulation for automobiles, fan speed regulation for automobiles, wiper motor speed regulation for automobiles, and air conditioning fan speed regulation for automobiles)

3. Speed regulation of conveyor belt, pipe exhaust fan, Treadmill, multiple computer fans in parallel and electronic fans in production line.

4. Various types of DC light bulbs for dimming, and various types of DC heaters for temperature regulation.
