5 series 15A Lithium-ion Battery 18650 Lithium-ion Battery Charger Charging Protection Board 18.5V 21V BatteryItem NO.: 5S15A
-
Customized Requirements
- Quantity
-
-
- Product Name: 5 series 15A Lithium-ion Battery 18650 Lithium-ion Battery Charger Charging Protection Board 18.5V 21V Battery
- Item NO.: 5S15A
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 18650 , Lithium Battery Protection Board , 15A , 5 series , 5s , Charging Protection Board , 18.5V , 21V
- Creation Time: 2024-03-24

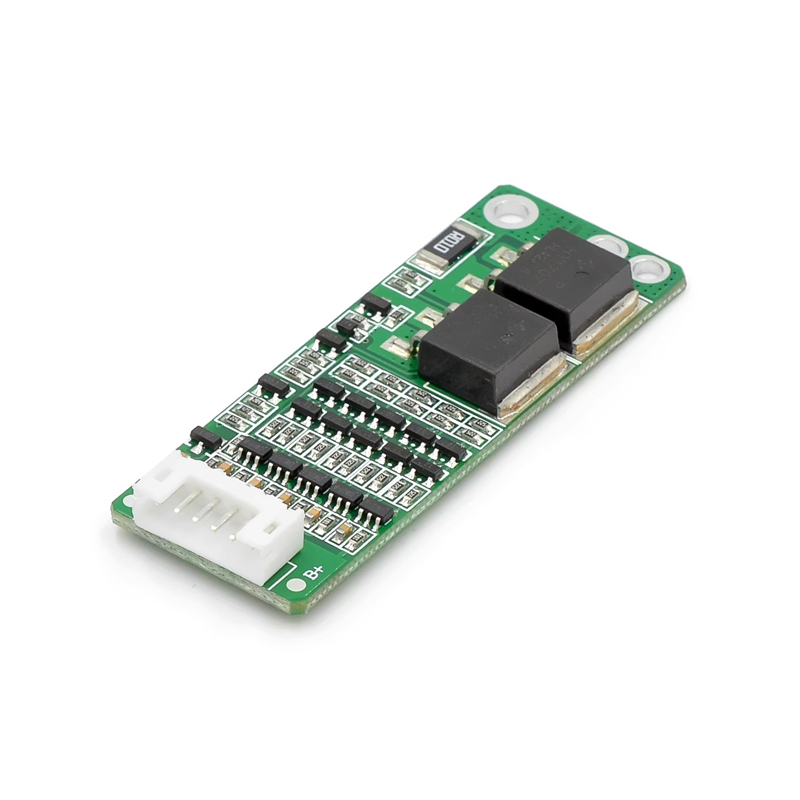

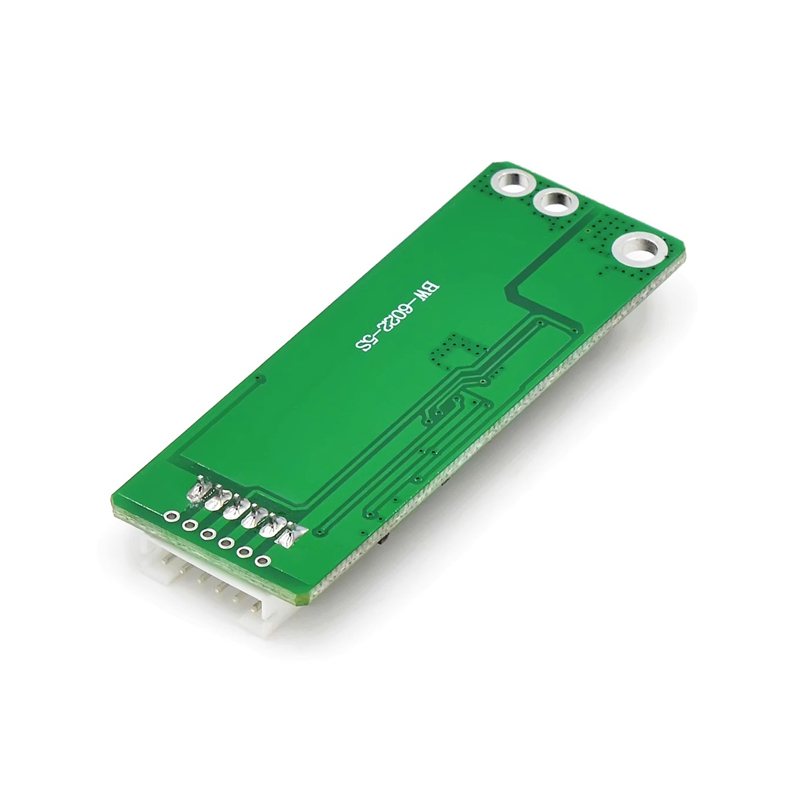

5S 15A Charging Protection Board
Product parameters:
Name: Protective Board

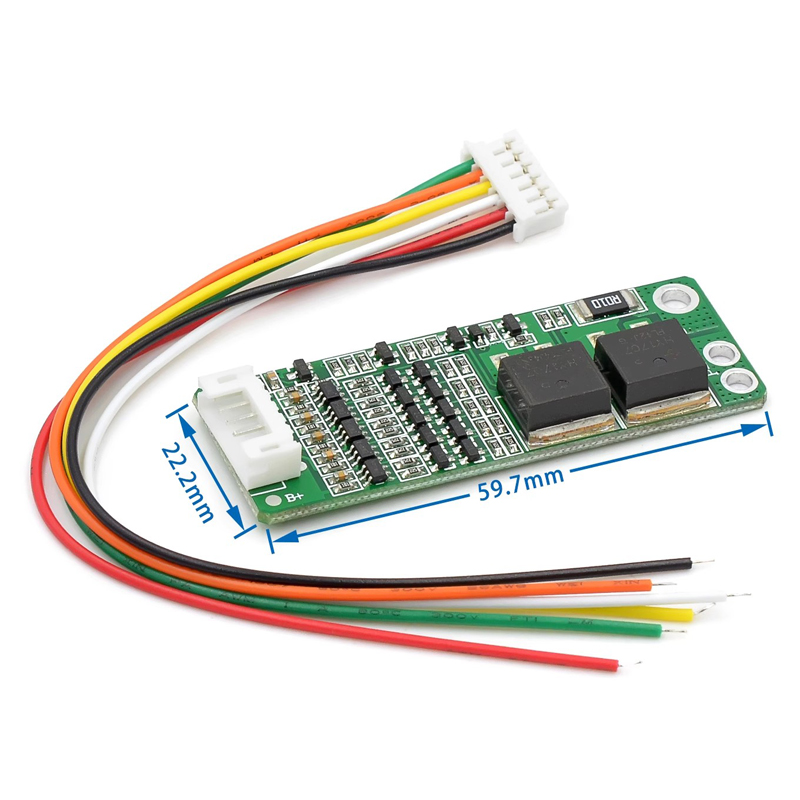

Size: approximately 60 * 23 millimeters
Charging voltage: 21 V
Charging MOS pressure value: 35 V
Discharge MOS pressure value: 35 V
Charging current: 56A
Continuous discharge current: 15A
Overcurrent protection: 50/55/60 A
Overcurrent protection delay: 20/25/30mS
Single self consumption: 30uA
Power consumption between single sections: 3uA
Single stage overcharging detection voltage: 4.18-4.22V
Overcharge recovery voltage 4.05~4.15 V
Overcharge detection delay: 0.5/1.0/2.0S
Single stage over discharge detection voltage: 2.75-2.85 V
Overdischarge recovery voltage: 2.90-3.20 V
Overdischarge detection delay: 0.5-2.0 seconds
Short circuit/overload/overcurrent protection recovery short circuit/over discharge/overcurrent protection, automatic recovery after removing load
Short circuit protection delay 200/500/600uS
Normal working state of B - to P-resistance: 5m Ω
Continuous 15A current heating: 25 ℃
Working environment (humidity) relative humidity: ≥ 98% (humidity is stable for a long time)
Working environment (temperature) -30~80 ℃ (stable for a long time in a lower temperature range)
