AS5600 Magnetic Encoder Magnetic Induction Angle Measurement Sensor Module 12bit High-PrecisionItem NO.: AS5600 Sensor
-
Customized Requirements
- Quantity
-
-
- Product Name: AS5600 Magnetic Encoder Magnetic Induction Angle Measurement Sensor Module 12bit High-Precision
- Item NO.: AS5600 Sensor
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Other Electronic Modules
- Tag: AS5600 , Magnetic Encoder , Magnetic Induction Angle Measurement Sensor Module
- Creation Time: 2024-04-16
AS5600 Magnetic Encoder
Product Introduction:
This module is mainly placed behind the stepper motor to obtain the rotation angle of the stepper motor. The principle is to use the AS5600 magnetic code, and then stick a magnet on the main shaft of the stepping motor. Through the magnetic code, information such as the rotation speed of the main shaft can be obtained.
Product Parameters:
● Product name: AS5600 magnetic code

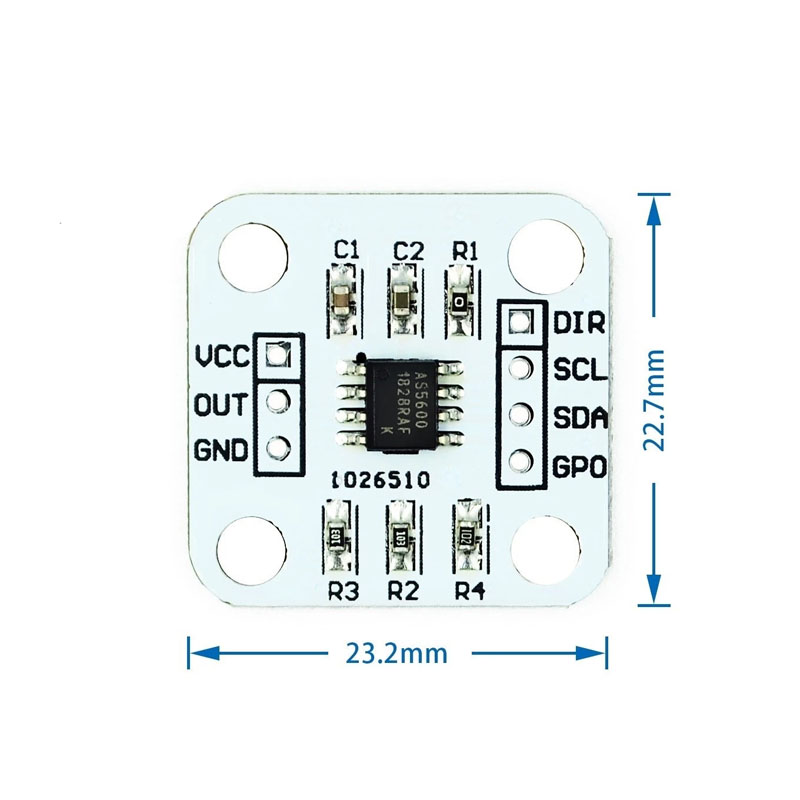

● Product size: 23.2mm * 22.7mm
● Product type: non-contact magnetic induction angle measuring module
● Output mode: IIC, PWM, voltage, etc
Electrical Parameters:
●VCC:3.3V
● GND: power ground
● Out: PWM/analog voltage output
● DIR: rotation direction (grounding=clockwise value increase; VCC=clockwise value decrease)
● SCL: IIC communication clock line
● SDA: IIC communication data line
● GPO: mode selection (internal pull-up, grounding=programming mode B)
