Aluminum Shell CP2102 Module USB to TTL Serial Port Module STC Downloader Download Cable Flash Upgrade BoardItem NO.: Aluminum shell CP2102

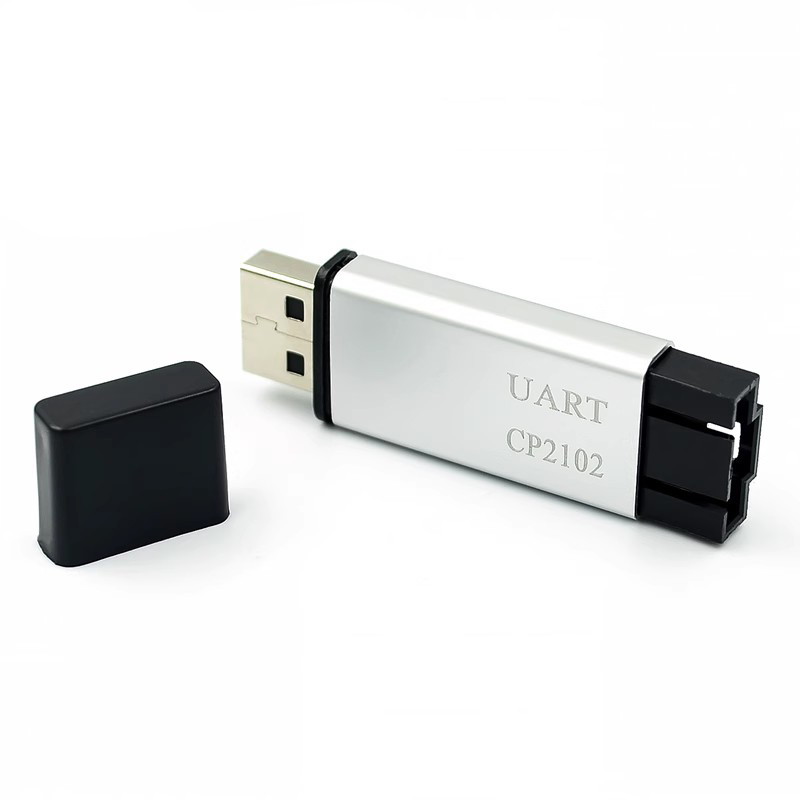

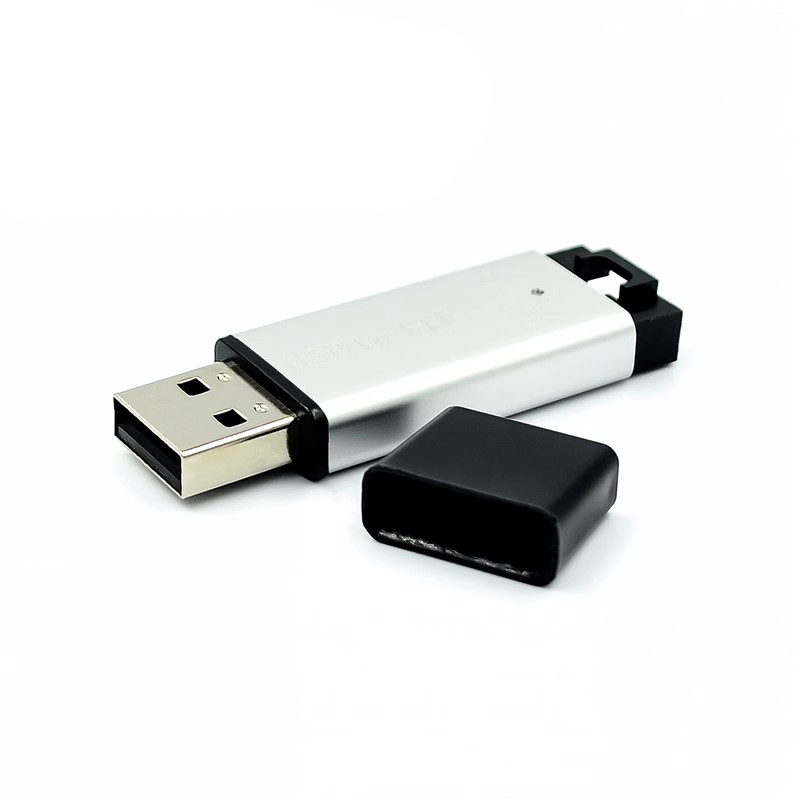

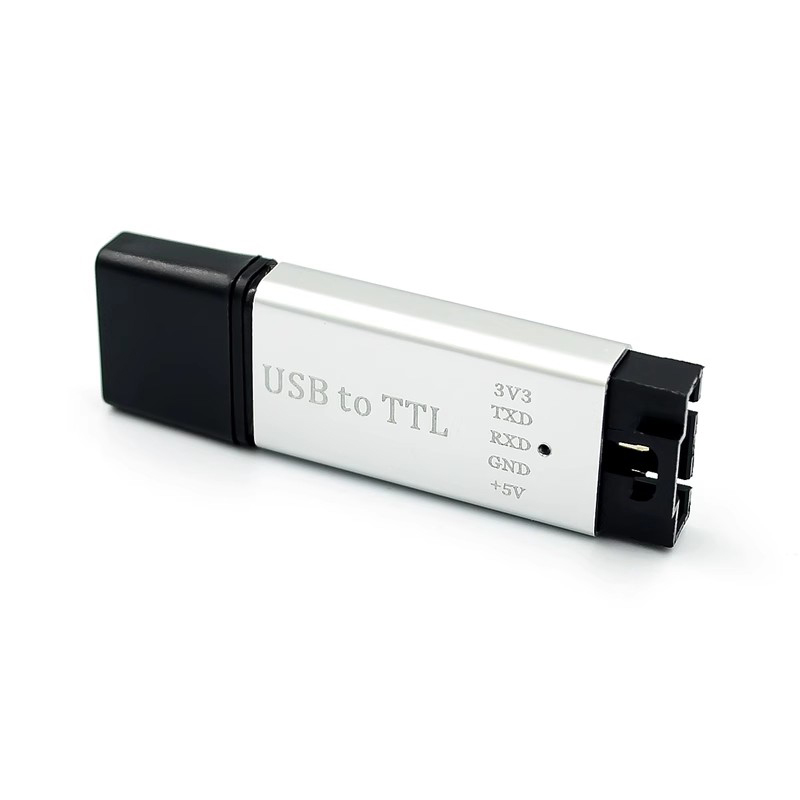

Aluminum Shell CP2102 Module

Module Description:

1. The original CP2102 chip generates a COM port after installing the driver.

2. Connect standard MICRO MINI-USB cable input to computer USB interface, with two power outputs of 3.3V and 5V voltage

3. With self recovery fuse. In the event of an unexpected short circuit, it can effectively protect your downloader and computer USB port

4. On board status indicator light and transceiver indicator light. After the driver is correctly installed, the status indicator light will remain on, and the transceiver indicator light will flash during communication, with a running LED indicator light.

5. Supports baud rates from 300bps to 1Mbps

6. Communication format support: 1) 5,6,7,8 data bits; 2) Supports stop bits 1, 1.5, and 2; 3) Odd, even, mark, space, none verification

7. Supported operating systems: Windows 8.1/7/vista/xp/98, Mac OS-X/OS-9, Linux

8. The USB socket interface is a MICRO MINI-USB socket

9. The SMD components are welded by a legitimate company, with stable quality and beautiful appearance

10. With DTR trigger signal output, it can directly download program communication to Arduino motherboards such as Arduino pro mini ATMEGA328P.

11. Module size: 16mm * 20mm super small.

Features:

1. It contains a USB transceiver and does not require an external circuit breaker

2. It contains a clock circuit and does not require an external circuit breaker

3. It contains a power on reset circuit

4. On chip voltage regulation can output 3.3V voltage

5. Meet the requirements of USB2.0 specifications

6. SUSPEND pin supports USB status hang

7. Asynchronous serial data bus compatible with all handshake and modem interface signals

8. The supported data formats are data bit 8, stop bits 1, 2, and checksum bits

9. Connotation 512 byte receive buffer and 512 byte send buffer

10. Support hardware or X-ON/X-OFF handshake
