ATTINY88 Development Board Digitspark Expansion Board Compatible with NANO V3.0 Improvement BoardItem NO.: ATTINY88
-
Customized Requirements
- Quantity
-
-
- Product Name: ATTINY88 Development Board Digitspark Expansion Board Compatible with NANO V3.0 Improvement Board
- Item NO.: ATTINY88
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Development Board
- Tag: Development Board , ATTINY88 , Digitspark Expansion Board , NANO V3.0 , Improvement Board
- Creation Time: 2024-03-21

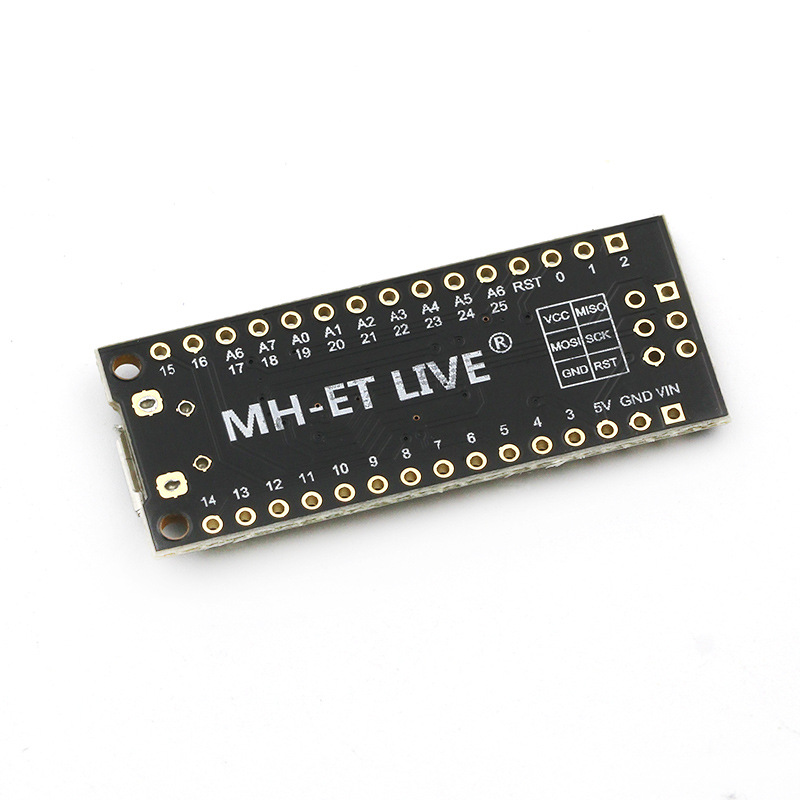

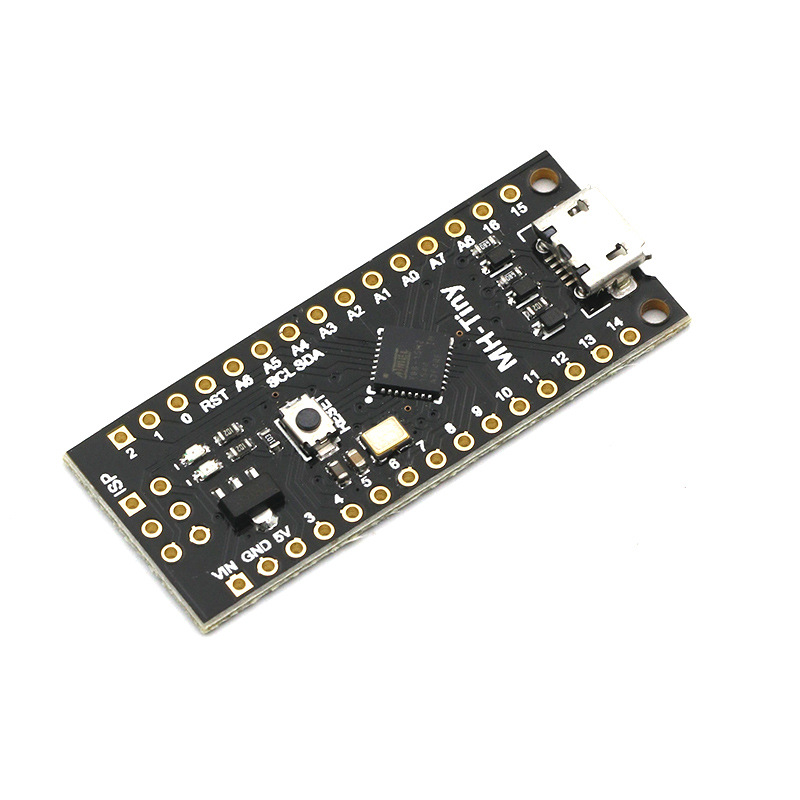

ATTINY88 Development Board
Product Introduction:
The MH-ET LIVE ATTiny88 (16.0Mhz) microcontroller development board is similar to the Arduino series development board, but with higher cost-effectiveness, smaller size, and more powerful functions. Due to the ability to use the familiar Arduino IDE, MH-ET LIVE Tiny88 is a development board that can quickly get started with electronic products DIY, and can effectively replace other development boards that are too large and complex to assemble.
When MH-ET LIVE ATTiny88 leaves the factory, except for the included pins that need to be welded by the user, other components have been fully assembled, and welding is also convenient and simple.
Specification parameters:
Support for Arduino IDE 1.0+(OSX/Win/Linux)
Power 5v or 7-24v through USB or external power supply (recommended 12v or lower, automatic selection)
Onboard 500ma 5V voltage regulator
Built in USB
26 I/O pins (2 for USB only if your program actively communicates through USB, otherwise
Enable you to use all 26 after programming via USB)
8k flash memory (approximately 6k after booting the program)
On board I2C and SPI interfaces
With 26 PWM pins (software PWM, hardware PWM only has two (D9, D10))
With 8 ADC pins
Power LED and Test/Status LED

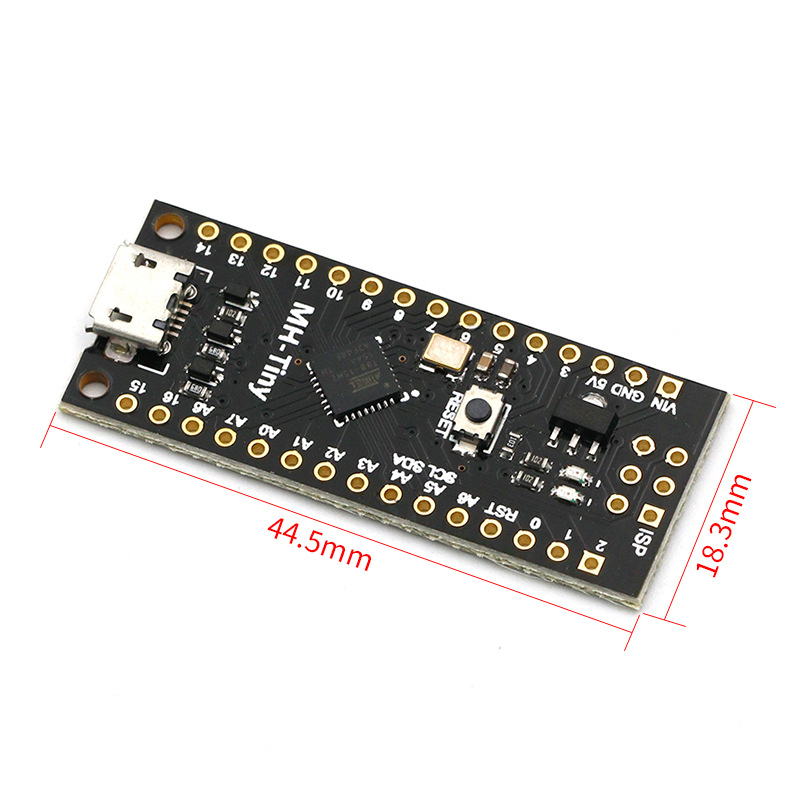

Volume (mm): 44.5x18.3x3
