CCMmini Miniature PWM DC Motor Speed Controller 6V12V24V Universal 3A Small Speed Control BoardItem NO.: CCMmini
-
Customized Requirements
- Quantity
-
-
- Product Name: CCMmini Miniature PWM DC Motor Speed Controller 6V12V24V Universal 3A Small Speed Control Board
- Item NO.: CCMmini
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 3A , PWM DC Motor Speed Controller , 6V12V24V , CCMmini , Small Speed Control Board
- Creation Time: 2024-05-27

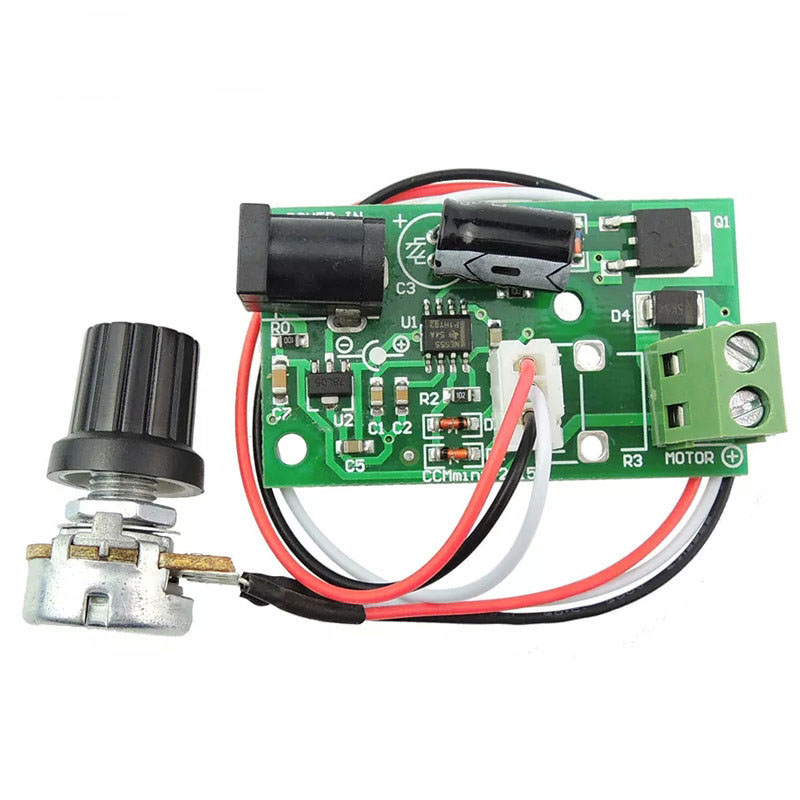

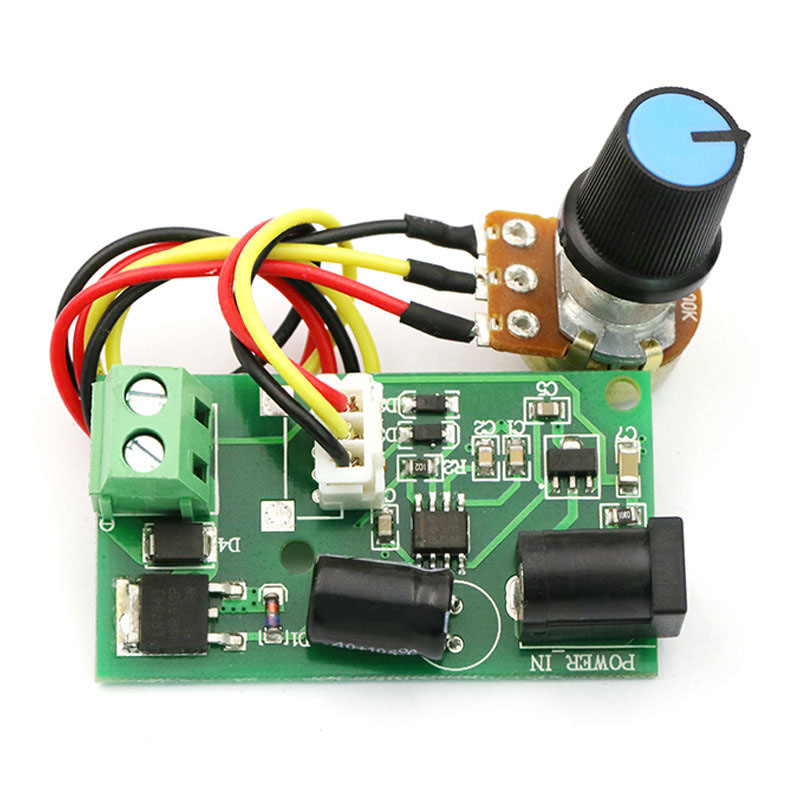

CCMmini Miniature PWM DC Motor Speed Controller
Features:
● Ultra-small DC motor governor, the length is only the size of two 1 yuan coins.
● Small size, large torque, and stable motor speed.
Technical Parameter:
● Model: CCMmini
● Working voltage: DC 6V-28V
● Control power: 6V*3A=18W, 12V*3A=36W, ...... 28V maximum 80W
● Rated current: 3A
● PWM pulse width speed regulation range: 5%-100%
● Potentiometer: resistance value B100K, wire length 20cm, opening 8mm
● The output voltage is about 0-100% of the input voltage
● Size: 50mm*28mm*17mm
● Weight: 20g
● PWM frequency: 21KHZ
Precautions:
1. The input of the DC motor governor is direct current, and cannot be directly connected to alternating current (for example: household 220 alternating current), otherwise it will burn out! ! !
2. Do not reversely connect the positive and negative terminals of the DC power supply, otherwise the governor may be damaged.
3. The motor can be positive or negative. When the running direction is inconsistent with the expectation, the direction can be changed by adjusting the line sequence.
4. Adjusting the potentiometer knob can change the output duty ratio of the governor, thereby changing the motor speed.
