DS1307 Clock Module+Micro SD Module For Wemo D1 Mini Data Recording Expansion BoardItem NO.: D1-DS1307
-
Customized Requirements
- Quantity
-
-
- Product Name: DS1307 Clock Module+Micro SD Module For Wemo D1 Mini Data Recording Expansion Board
- Item NO.: D1-DS1307
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Development Board
- Tag: D1 mini , DS1307 Clock Module , Micro SD Module
- Creation Time: 2024-05-05

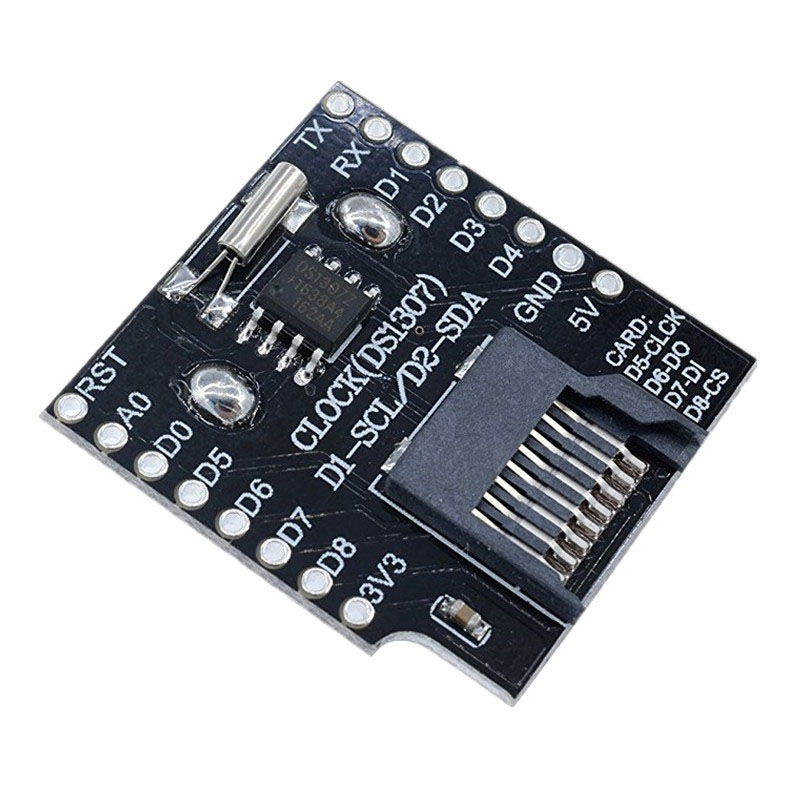

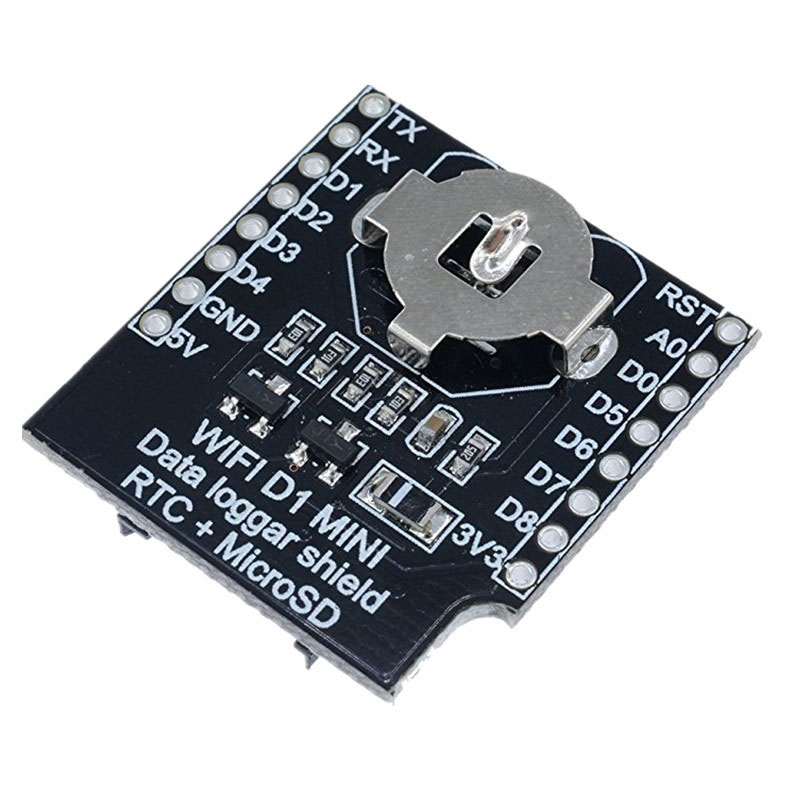

DS1307 Clock+Micro SD Module For D1 Mini
Product Description:
With this data record shielded as a WiFi D1 Mini board, you can save data to any file on the MicroSD card in FAT16 or FAT32 format. The attached RTC (Real Time Clock) can be used to time stamp all data in the current time, so that you can accurately understand what happened!
The SD card interface is used with FAT16 or FAT32 format cards.
The real time clock (RTC) remains time lapse even if the power supply is disconnected. Last date and time of coin battery backup.
RTC prevents incorrect battery connection.
Pin Definition:
RTC:
D1 - SCL
D2 - SDA
CD card:
D5 - CLK
D6 - DO
D7 - DI
D8 - CS
Shipping List:
1. RTC DS1307 clock module+Micro SD module x1pcs
2.8P long pin base x2pcs
3.8P base x2pcs
4.8P row pin x2pcs
