- Product Name: USB Logic Analyzer Microcontroller Suitable for ARM FPGA Debugging Sharp Tool 24M Sampling 8 Channels
- Item NO.: USB ARM FPGA
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Development Board
- Tag: USB Logic Analyzer
- Creation Time: 2024-04-19

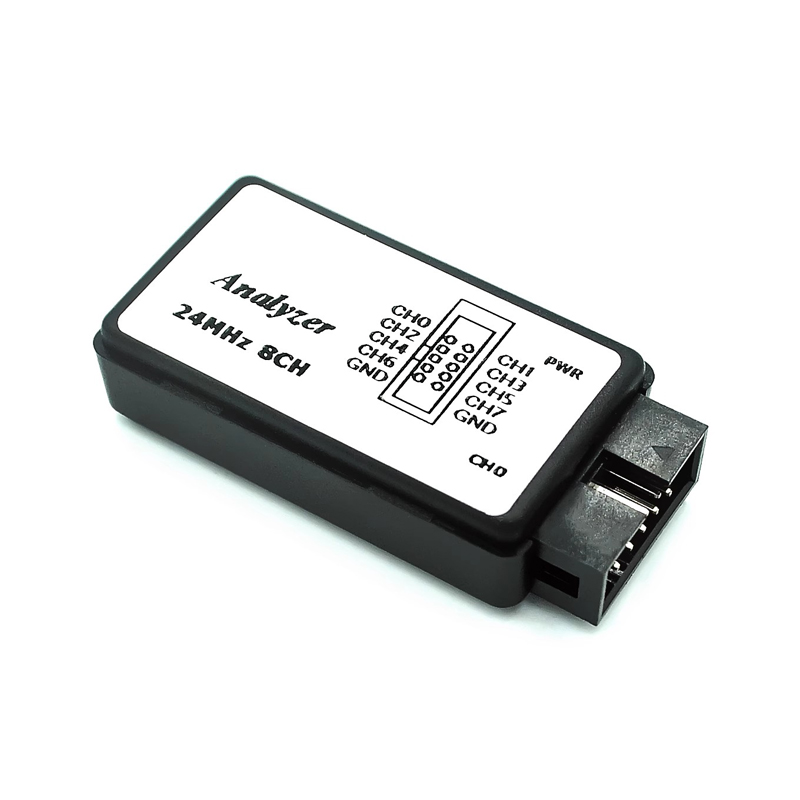

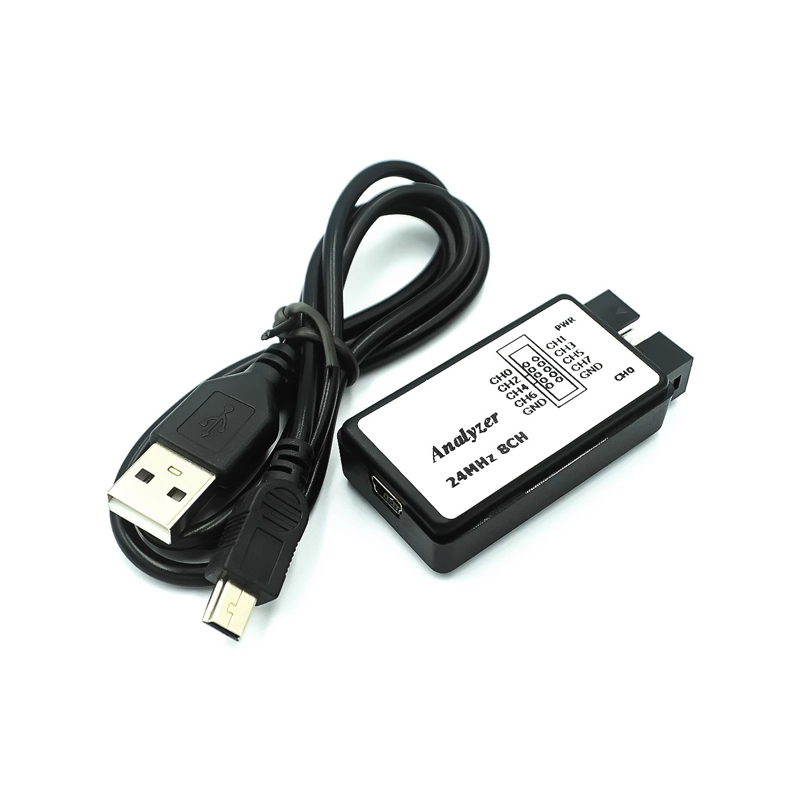

USB Logic Analyzer

Product Description:

The sampling rate can reach 24 MHz, up to 24 MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz;

The logical sampling rate of each channel is 24M/s. Generally applied at around 10M, it is sufficient to handle various problems;

8 channels;

Voltage range:

Input voltage range: -0.5V to 5.25V

Input low voltage: -0.5V to 0.8V

Input high voltage: 2.0V to 5.25V

Suitable for 5V, 3.3V, 2.5V, 2.0V systems. 1.8V can be used but is not recommended.

Input impedance: 1Mohm 10pF (typical, approximate)

Crystal:+/-20ppm, 24MHz

Error/accuracy: Pulse width measurement:+/-42ns (24MHz)
