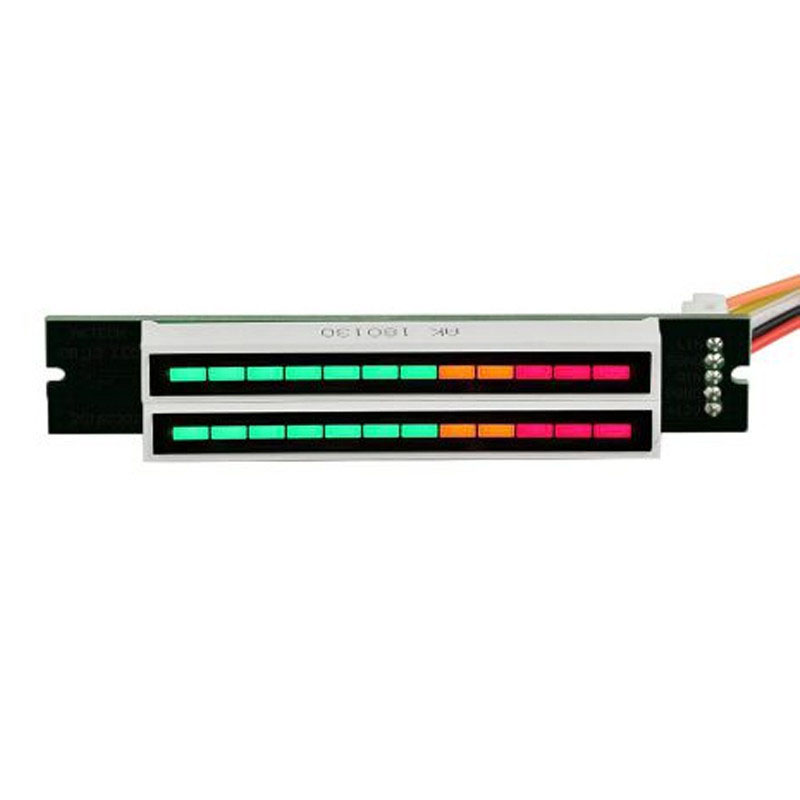

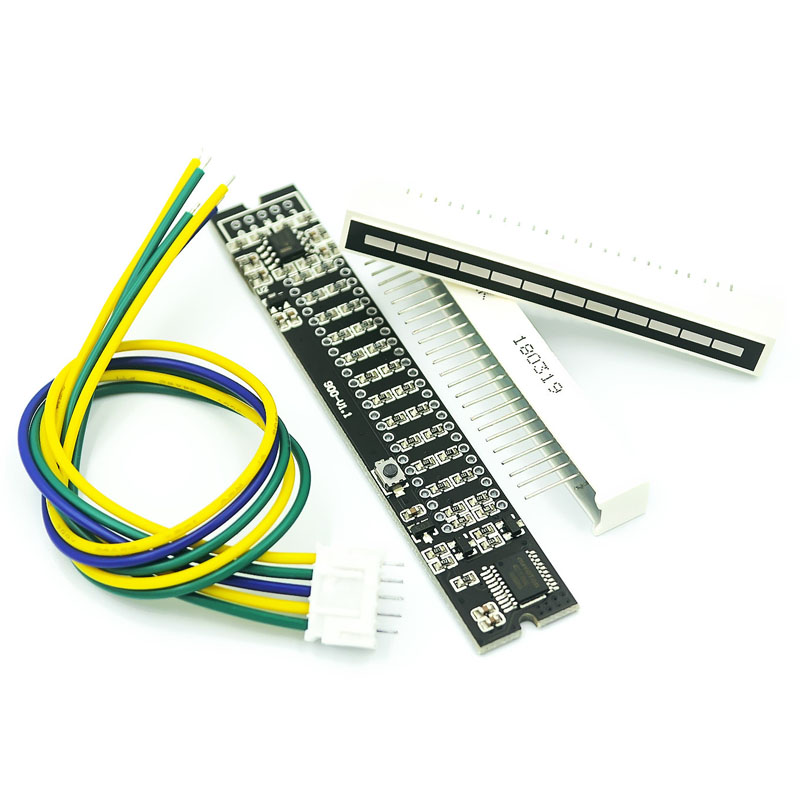

Dual 12-Bit Dual-Channel LED Music Spectrum Level Indicator (7 Green, 2 Orange And 3 Red) Audio LED Indicator

Dual 12-Bit Dual-Channel LED Music Spectrum Level Indicator (7 Green, 2 Orange And 3 Red) Audio LED IndicatorItem NO.: AK180319

US$ 8.78
Model
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
Dual 12-Bit Dual-Channel LED Music Spectrum Level Indicator (7 Green, 2 Orange And 3 Red) Audio LED Indicator
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy
  • LED Music Spectrum Level Indicator



    Product Parameters:



    ● Product name: dual 12-bit music level indicator

    ● Power supply voltage: DC 7~12V, product independent power supply

    ● Power supply current: not less than 100mA, but more than 100mA

    ● Audio output: connected to front-end audio signal, power output prohibited

    ● Light color: 7 * green+2 * orange+3 * red

    ● PDB size: 80mm * 14mm

    ● LED size: 58mm * 14mm



    Characteristic:



    1. Dual 12-bit music screen spectral level ultra-small volume stereo level lamp can freely adjust the rising and falling speed of the light bar and the dwell time and falling speed of the peak light. Each lamp is separately set with a current-limiting resistor, which not only ensures that the brightness of different color lamps is consistent, but also ensures that there is no light or dark change when the lamp is much brighter. The signal input is isolated by the operational amplifier to avoid the high-frequency interference of the single chip computer from being connected into the audio.

    2. Classic color matching: 7 green+2 orange+3 red

    3。 When the single-chip microcomputer uses time-sharing sampling, there may be differences in the amplitude displayed by the two light bars when two channels input the same signal in parallel

    4. In very extreme cases, there may be very slight high-frequency noise. Please pay attention to separate power supply and try to replace the input line of the lamp board with the shielded line.
