Home>Other Electronic Accessories>Intelligent Car Accessories>Hall Sensor Motor Speed Measurement Module 3144E Single Open Circuit Speed Measurement Sensor Count Sensor
Hall Sensor Motor Speed Measurement Module 3144E Single Open Circuit Speed Measurement Sensor Count Sensor

Hall Sensor Motor Speed Measurement Module 3144E Single Open Circuit Speed Measurement Sensor Count SensorItem NO.: Motor Tachometer Module 3144E

US$ 2.54
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
Hall Sensor Motor Speed Measurement Module 3144E Single Open Circuit Speed Measurement Sensor Count Sensor
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy
  • Motor Speed Measurement Module

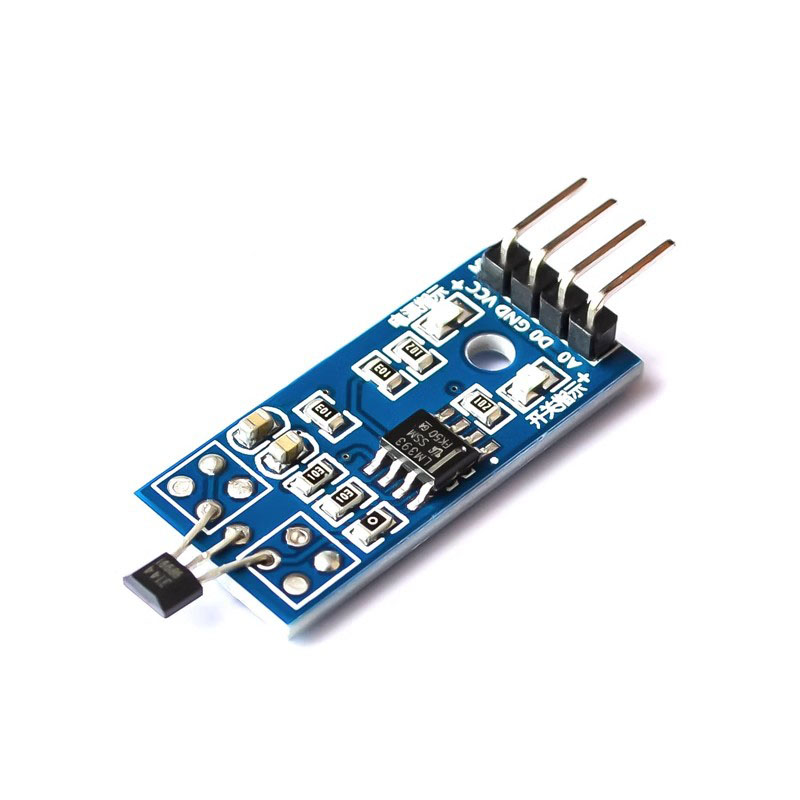

    Module Description:



    1 Size: 2.7 cm * 1.4mm

    2 main chips: LM393, 3144 Hall sensors

    3 Working voltage: DC 5V

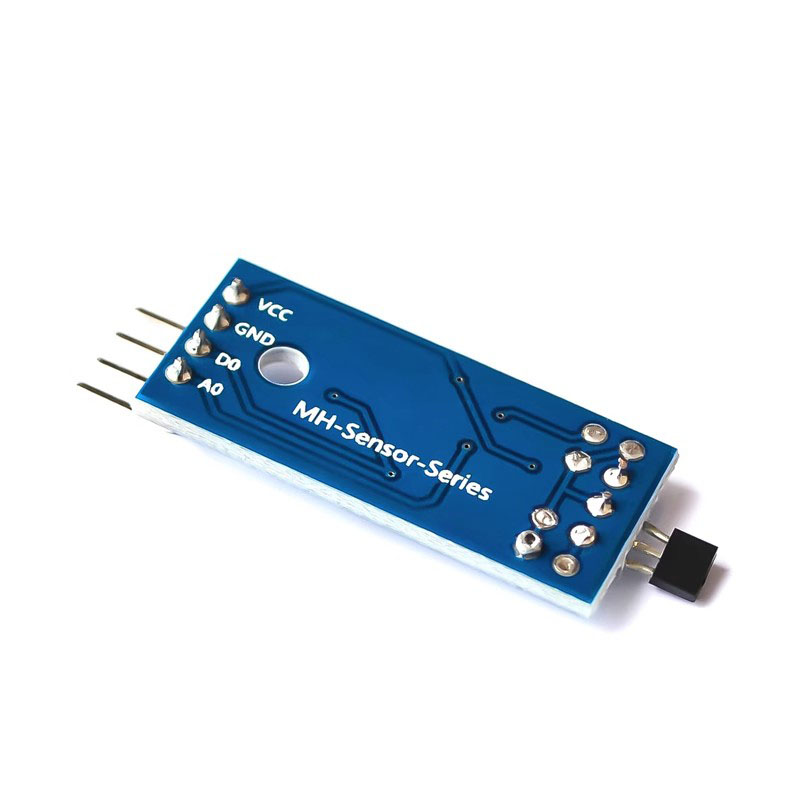

    Module Interface Description (4-wire System):



    1 VCC external 5V voltage

    2 GND external GND

    3 DO small board digital output interface (0 and 1)



    Module Features:



    1. Equipped with power indicator light and signal output indicator.

    2. Single channel signal output.

    3. The module has no triggering and outputs a low level; The module has a trigger and outputs a high level.

    4. Sensitivity adjustable (fine tuning).

    5. When there is a magnetic field cutting, there is a signal output.

    6. The circuit board can output switch values and can be directly connected to a microcontroller or our store's relay module, buzzer module, etc.

    7. It can be used for motor speed measurement/position detection and other occasions.
