Digital 38KHz Infrared Receiving and Transmitting Sensor Module Receiving and Transmitting Head RobotItem NO.: 38KHz IR
-
Customized Requirements
- Quantity
-
-
- Product Name: Digital 38KHz Infrared Receiving and Transmitting Sensor Module Receiving and Transmitting Head Robot
- Item NO.: 38KHz IR
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: Sensor Module , Digital 38KHz Infrared Receiving , Transmitting , Receiving and Transmitting Head
- Creation Time: 2024-04-15
Infrared Transmitting Module
Infrared Receiving Module
Digital 38KHz
Purchase Instructions:
● TX: transmitting module 1Pcs
● RX: receiving module 1Pcs

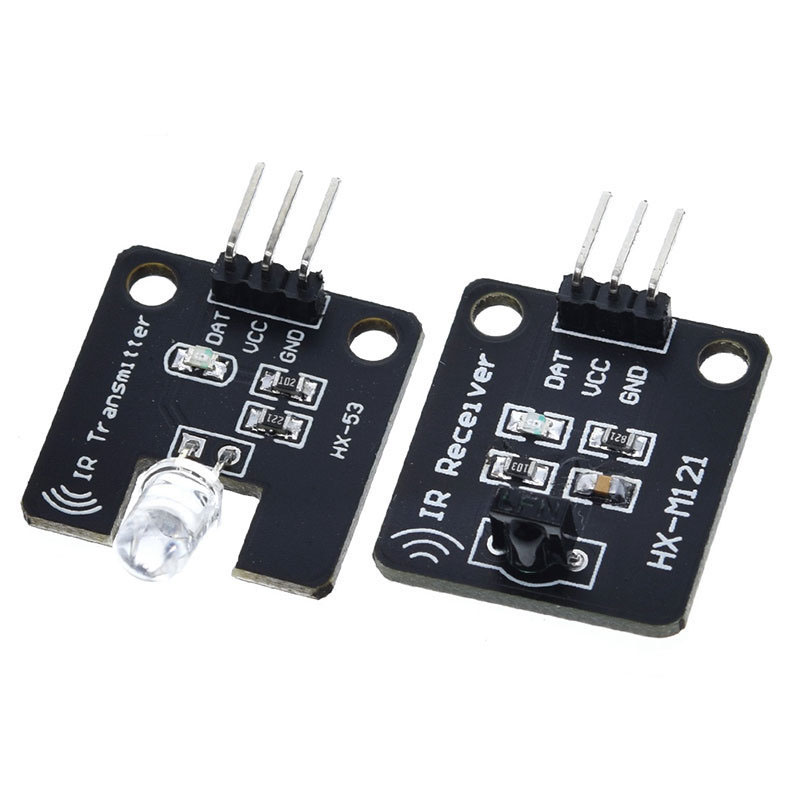

● TX and RX: transmitting module+receiving module 1 Pair
Product Specification:
● Size: 25 * 21mm
● Voltage: 5V
● Fixing hole: 3mm
● Hole pitch: 16mm
● Port: digital quantity level
● Modulation: direct transmission without modulation
● Transmitter head: 1
● Launching distance: 1-2m
● Wavelength: 940nm
● Platform: Arduino
Product Characteristics:
1. Single tube direct transmission, waveform modulation through program
2. It is equipped with transmitting signal indicating LED, which is convenient for observation and debugging
3. Suitable for infrared communication and infrared remote control
Product Parameter 1:

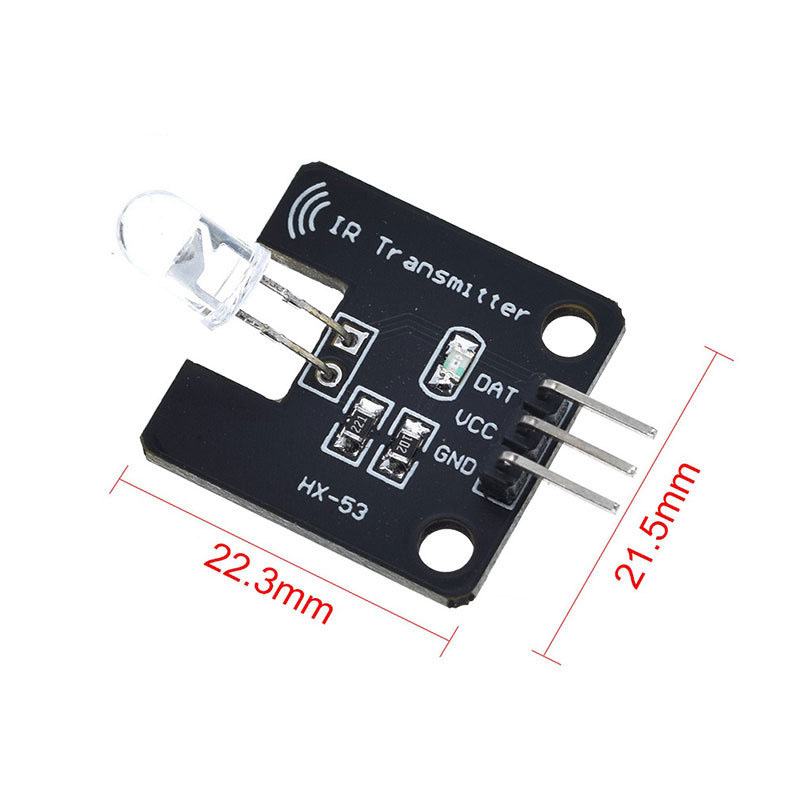

● Product name: infrared transmitting module
● Power supply voltage: 5v
● Operating temperature: - 25 ℃~85 ℃
● Storage temperature: - 30 ℃~100 ℃
● Wavelength: 940mm
● Infrared emission distance: ≈ 1.3m (5V 38k Hz)
● Infrared emission angle: about 25 degrees
● Signal type: digital signal
● Module weight: 2.5g
● Module size: 22.3mm * 21.5mm
● Hole size: 3mm
Product Parameter 2:

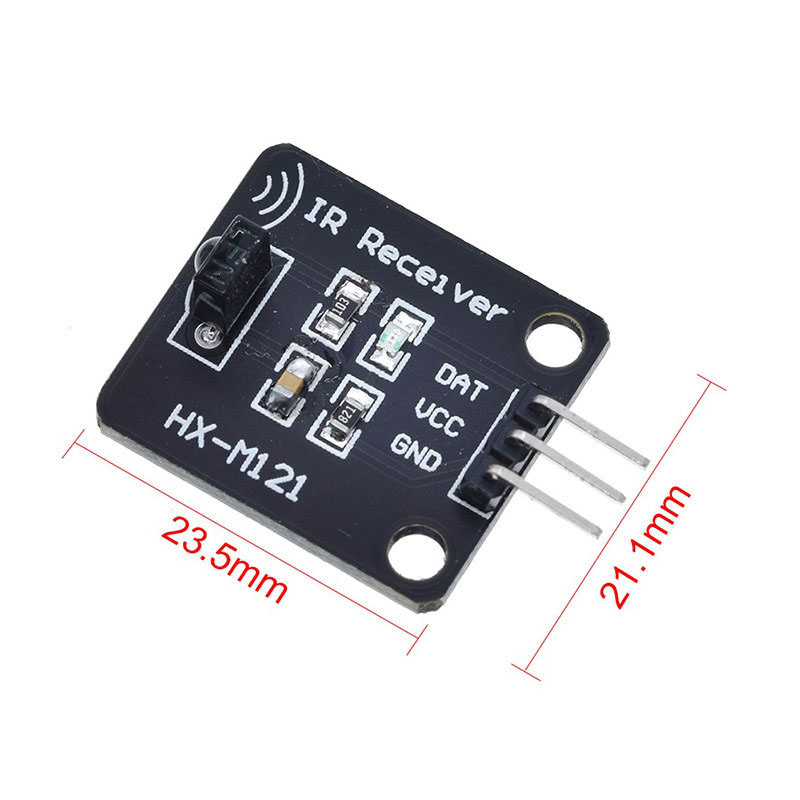

● Product name: infrared receiving module
● Power supply voltage: 5v
● Operating temperature: - 25 ℃~85 ℃
● Storage temperature: - 30 ℃~100 ℃
● Wavelength: 940mm
● Infrared emission distance: ≈ 10m
● Infrared emission angle: about 35 degrees
● Signal type: digital signal
● Module weight: 2.5g
● Module size: 23.5mm * 21.1mm
● Hole size: 3mm
