IRS2092S High-Power 500W Class D HIFI Digital Power Amplifier Board Finished Mono Super LM3886Item NO.: IRS2092S-500W
-
Customized Requirements
- Quantity
-
-
- Product Name: IRS2092S High-Power 500W Class D HIFI Digital Power Amplifier Board Finished Mono Super LM3886
- Item NO.: IRS2092S-500W
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Audio Amplifier
- Tag: HIFI , Class D , High-power , IRS2092S , 500W , Digital Power Amplifier Board , Mono
- Creation Time: 2024-03-26

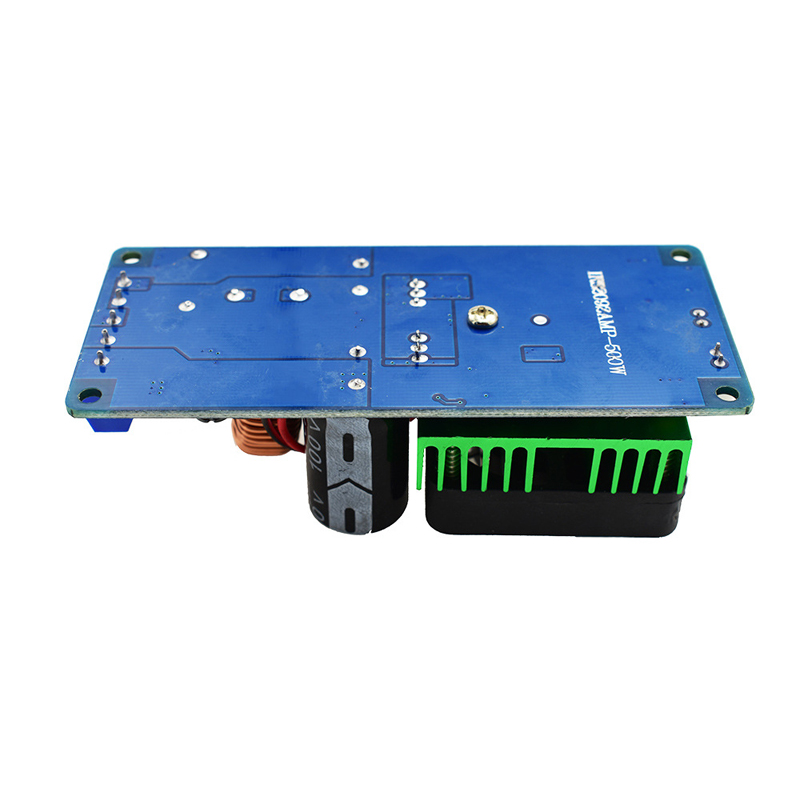

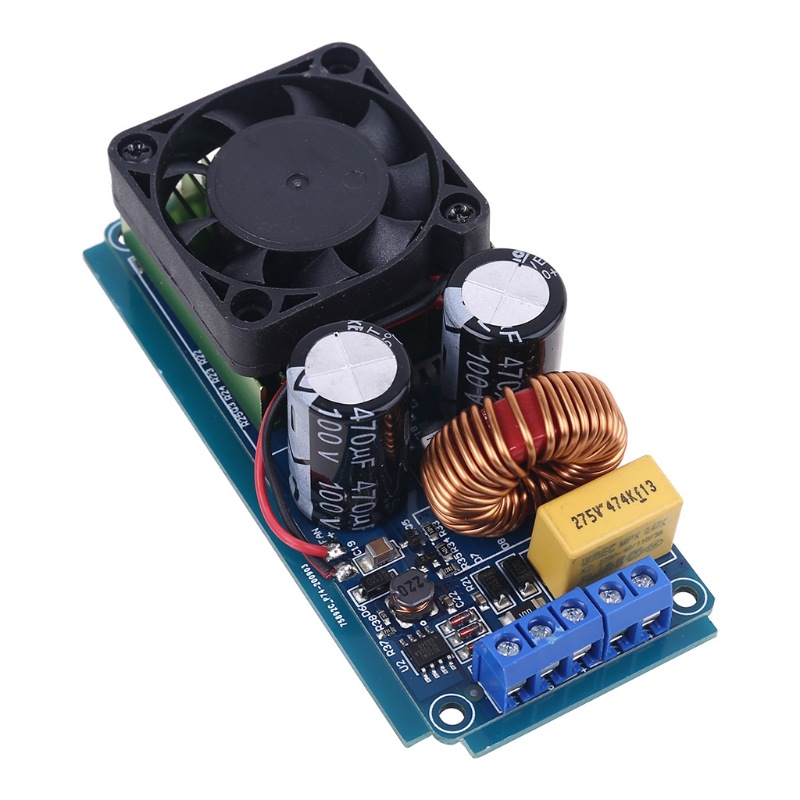

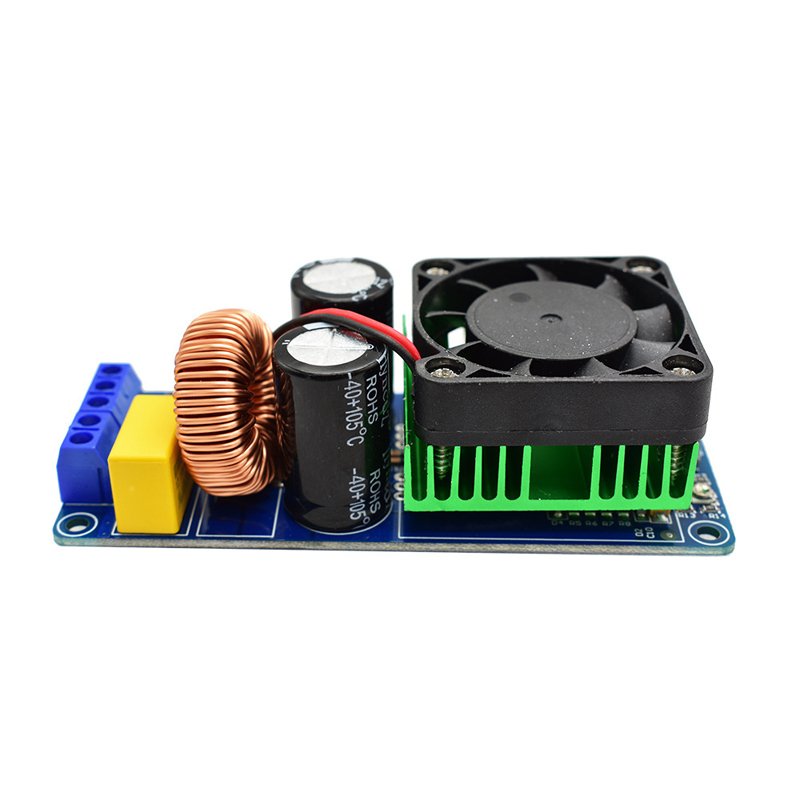

IRS2092S Digital Power Amplifier Board
Specifications:
1. Power supply: DC dual power supply ± 58 ± 70v
2. Rated output power: 500w (± 65v power supply, 4 ohm load, 10% deformation)
3、 Efficiency:>90%
4. Signal-to-noise ratio: 90db
5. Total harmonic distortion:
380w (± 65 power 4 ohm speaker, distortion<0.1%)
280w (± 65 power 8 ohm speaker, distortion<0.1%)
6. Frequency range: 20Hz-20kHz
7. Speaker: 4-8ohm
8. Voltage amplification: 36 times
9. Input sensitivity 1.5v (RMS)
10. Output short circuit protection: yes
11. Output DC bias protection speaker protection: Yes
12. Overheat protection: Yes, the temperature of the radiator is higher than 100 ° C, turn off the output!

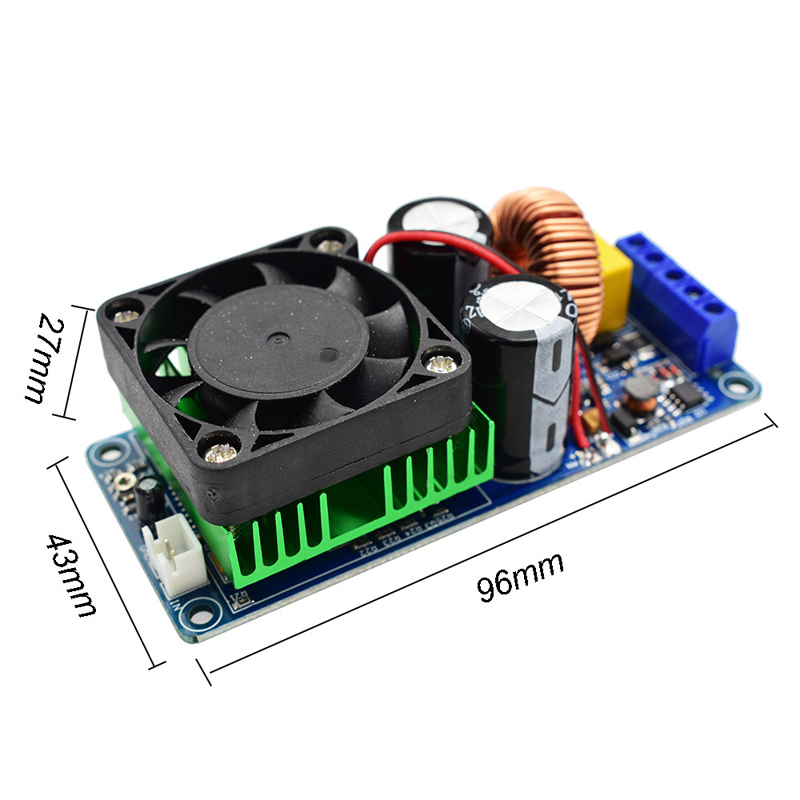

13. Product size: about 100 × fifty × 30mm / 3.93 × one point nine six × 1.18”
14. Net weight: approx.100g
