XH-M311 Mini TPA3118 Digital Audio Amplifier Audio Power Amplifier Module Mono 30W 60WItem NO.: XH-M311
- Model
- XH-M311(30W) XH-M311(60W)
-
Customized Requirements
- Quantity
-
-
- Product Name: XH-M311 Mini TPA3118 Digital Audio Amplifier Audio Power Amplifier Module Mono 30W 60W
- Item NO.: XH-M311
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Audio Amplifier
- Tag: Mono , Audio Power Amplifier Module , TPA3118 , 30W , 60W , XH-M311 , Digital Audio Amplifier
- Creation Time: 2024-05-03

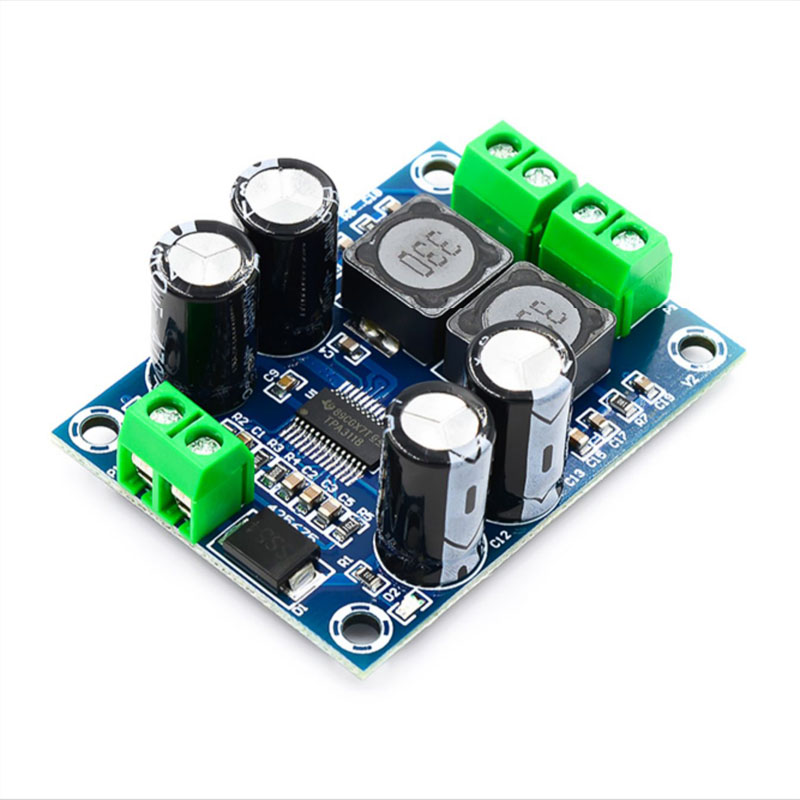

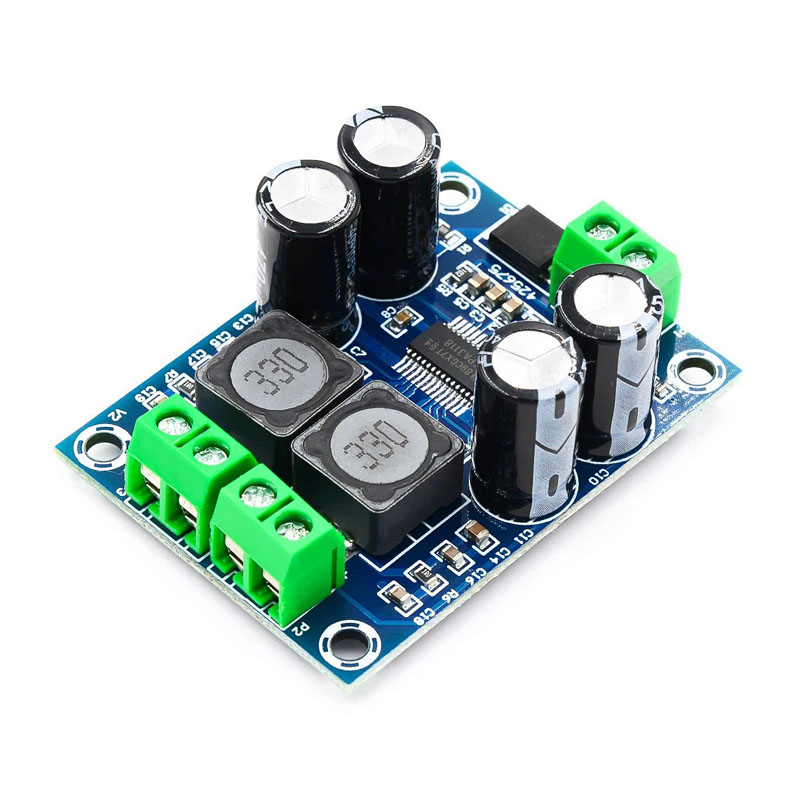

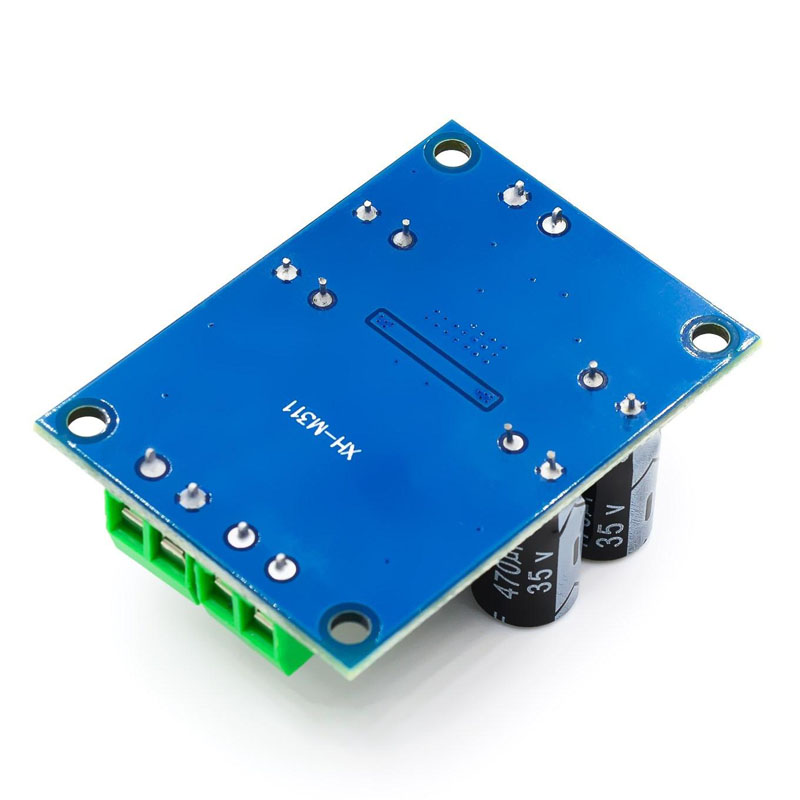

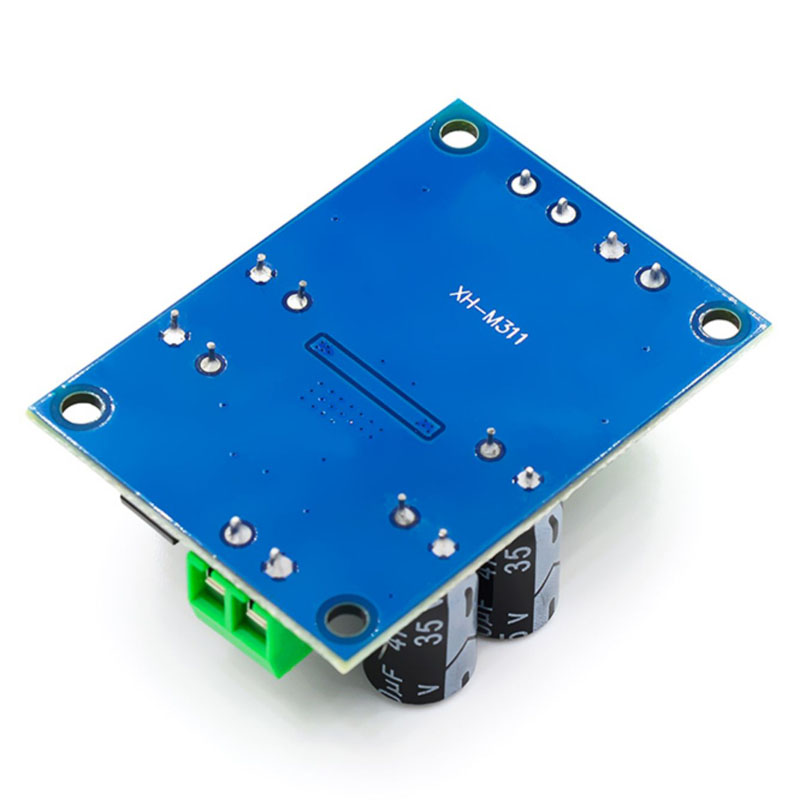

TPA3118 Digital Audio Amplifier 30W 60W
Product Introduction:
This model uses TI TPA3118 as the main chip, and the power supply range is as wide as DC10-24V. Under 24V power supply, a 2-ohm audio can achieve 60W output. If the 60W output is limited to 2 ohm, the 4-ohm or 6-ohm output power will drop. The circuit uses PBTL mode, so it can achieve low resistance and high power. The large internal resistance speakers can be connected in parallel to achieve high power output.
Product Parameters:
● Product name: digital audio amplifier board
● Product model: XR-M311
● Magnification type: Type D
● Work efficiency: 93%
● Chip type: TPA3118
● Power supply voltage: DC10-24 V
● Input current: 3A recommended
● Output power: 60W * 1
● Frequency response range: 35HZ-88KHZ
● Number of channels: mono
● Impedance matching: 2-6 Ω
● Appearance dimension: 55 * 40 * 15MM
● Weight: 30g
