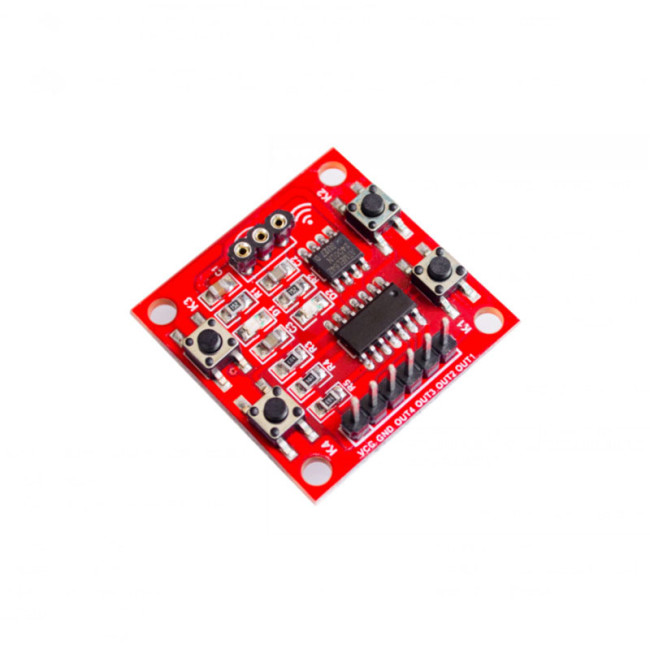

Infrared Remote Control Learning Module 4-Way Infrared Learning Board Remote Control Module

Infrared Remote Control Learning Module 4-Way Infrared Learning Board Remote Control ModuleItem NO.: IR4WAY

US$ 4.34
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
Infrared Remote Control Learning Module 4-Way Infrared Learning Board Remote Control Module
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy
  • Infrared Remote Control 4-Way Learning Module



    Shipping list: 1 4-way learning module (excluding receiver and remote controller)

    (The module can learn all remote controls in NEC format)



    Module Specific:



    ● Working voltage: 3-5 V VCC: connected to the positive electrode GND of the power supply; connected to the negative electrode OUT1-OUT4 of the power supply, respectively representing four outputs (the default output is low level when powered on, and the corresponding output becomes high level after remote control)

    ● Module size: L30 * W30MM with four 3mm fixing screw holes for easy use

    ● Module type: learning type (can learn all infrared remote controllers in NEC format, other formats are not supported)

    ● Working mode: Three modes of self-locking, inching, and interlocking can be freely switched (after learning the keys, the corresponding operation can be switched directly without further learning)

    ● Work indicator: D1 (power indicator), D2 (learning indicator)



    Introduction To Usage:



    There are a total of 4 buttons, and the four channels of the K1, K2, K3, and K4 infrared remote control receiver board can be learned independently. (Default output is low level)



    1、 Single channel learning method steps:



    ● Channel learning: After powering on, press the K1 key to release it, and the learning indicator will flash once, proving that the learning channels have been successfully triggered. Then, press the remote control that needs to be learned, and the learning indicator will flash quickly for three times, proving that this button has learned channels that are OK.



    ● Channel 2 learning: After powering on, press the K2 key to release it, and the learning indicator light will flash once to prove that the learning of the second channel has been triggered successfully. Then, press the remote control that needs to be learned, and the learning indicator light will flash quickly for three times to prove that this button has learned the second channel is OK.



    ● Third channel learning: After powering on, press the K3 key to release it, and the learning indicator will flash once, proving that the third channel has been triggered successfully. Then, press the remote control that needs to be learned, and the learning indicator will flash quickly for three times, proving that this button has learned to the third channel and is OK.



    ● Channel 4 learning: After powering on, press the K4 key to release it, and the learning indicator will flash once to prove that the fourth channel of learning has been triggered successfully. Then, press the remote control that needs to be learned, and the learning indicator will flash quickly for three times to prove that this button has learned to the fourth channel and is OK.



    2、 One Button Full Open One Button Full Close Learning Method:



    ● For example, it is necessary to press key A (any key) to control full closing, and key B (any key) to control full opening. (However, A and B cannot be the same key)



    ● Full open key learning: After powering on, press K2K3 simultaneously, release both keys, and the learning indicator light will flash twice. At this time, press the remote controller to align with the remote control receiver and press the A key to successfully learn. The learning indicator light quickly flashes three times. After successful learning, this A key can control the full open of four channels in any state.



    ● Full close learning: After powering on, press K3K4 at the same time, release the two buttons, and the learning indicator light will flash twice. At this time, press the remote controller to align with the remote control receiver and press the B button to successfully learn. The learning indicator light quickly flashes three times. After successful learning, this B button can control the full close of four channels in any state.



    3、 Operating steps for mutual conversion of self-locking, interlocking, and inching:



    ● Interlock: In the power off state, press and hold the learning key K2, and then power on. The learning indicator light quickly flashes for three times, and the interlock output is set at this time. (Press the remote control button, the corresponding channel of the module has output, and all other channels are closed without output)



    ● Self locking: In the power off state, press and hold the learning key K3, and then power on. The learning indicator light quickly flashes for three times. At this time, it is set to self locking output. (Press the remote control button, the inversion of the corresponding output channel of the module does not affect the status of other channels, and release the remote control to maintain the output status.)



    ● Jog: In the power off state, press and hold the learning key K4, and then power on. The learning indicator light quickly flashes for three times. At this time, it is set to jog output (Press the remote control button, the corresponding channel of the module has an output, and release the remote control to stop the output)
