TCS34725 Color Recognition Sensor Module Bright Light Sensing RGB IIC Support Arduino STM32Item NO.: TCS34725
-
Customized Requirements
- Quantity
-
-
- Product Name: TCS34725 Color Recognition Sensor Module Bright Light Sensing RGB IIC Support Arduino STM32
- Item NO.: TCS34725
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: TCS34725 , Color Recognition Sensor Module , Bright Light Sensing
- Creation Time: 2024-04-16
TCS34725 Color Recognition Sensor Module
Product Overview:
This module is a color sensor based on TCS3472XFN color optical digital converter of AMS. The sensor provides digital output of red, green, blue and clear light sensitivity values. The integrated infrared blocking filter can minimize the infrared spectral composition of the incident light and accurately measure the color. It has high sensitivity, wide dynamic range and infrared barrier filter. Minimize IR and UV spectral component effects to produce accurate color measurements. It also has ambient light intensity detection and maskable interruption. Communication through IC interface. Based on the same design principle, this design provides two different modeling designs (square version and double-hole version), and provides users with more installation size and environment choices. The double-hole version is equipped with two LED lights to fill the light.
Product Parameters:
● Working voltage: 3.3V/5V
● Control chip: TCS3472XFN
● Logic voltage: 3.3V/5V
● Communication interface: I2C

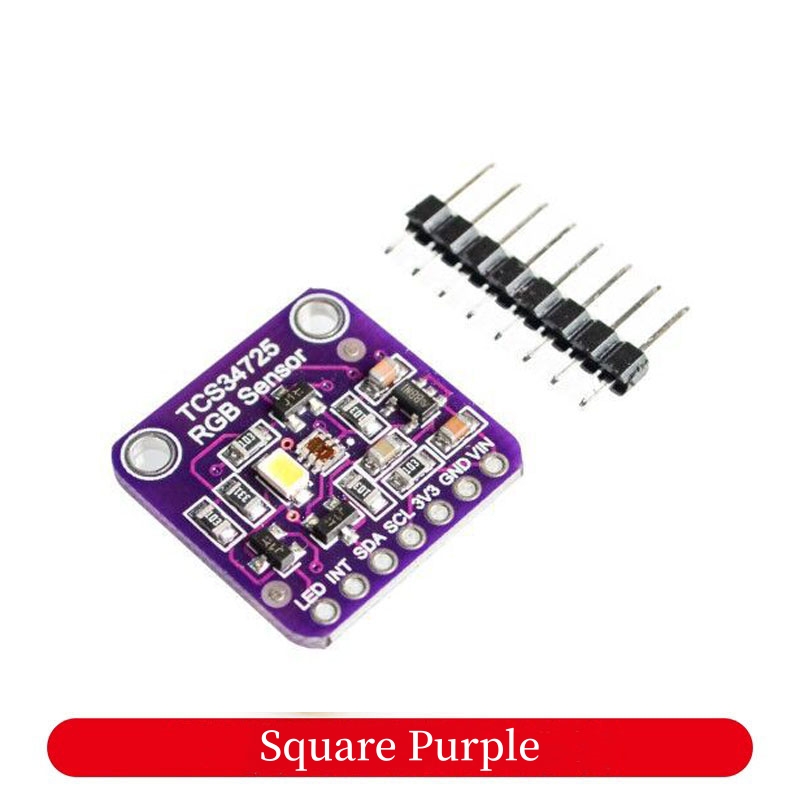

● Size of purple square plate: 20.5 * 20.5mm, hole spacing 15mm, hole diameter 2.5mm

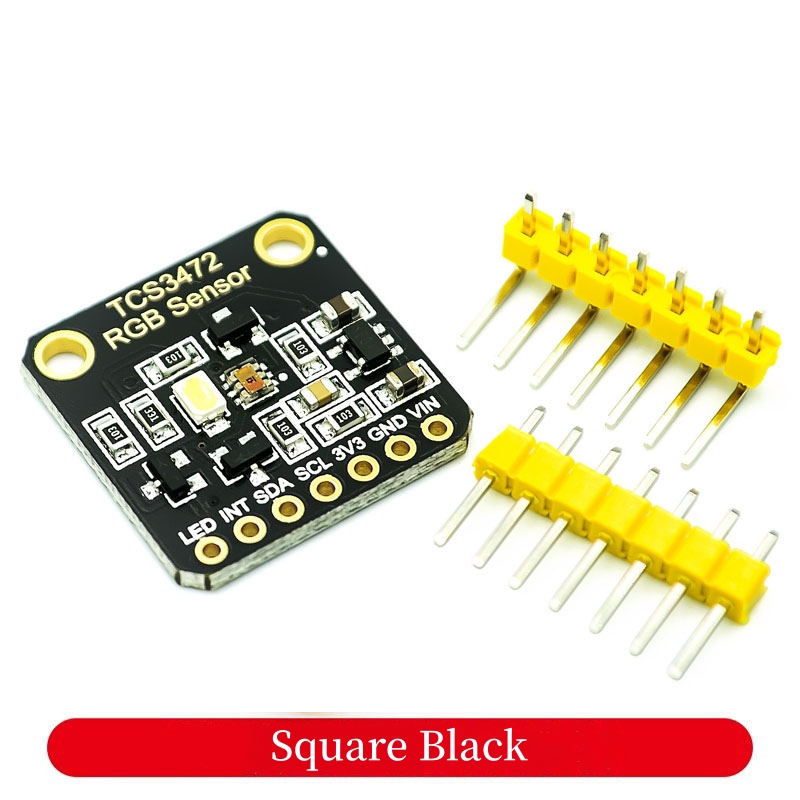

● Size of black square plate: 20.5 * 20.5mm, hole spacing 15mm, hole diameter 2.5mm

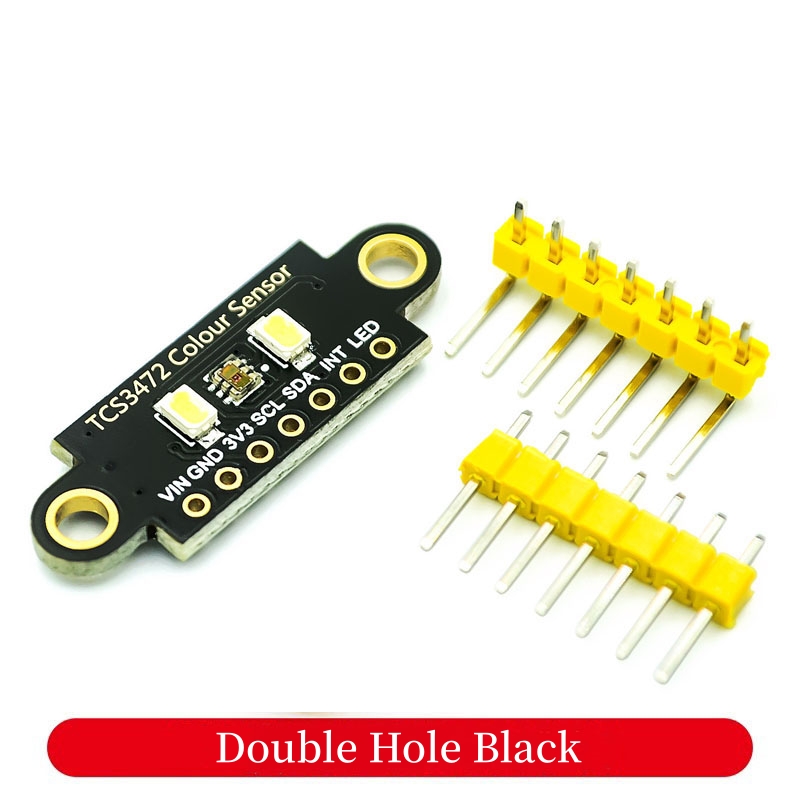

● Size of black double-hole plate: 31.3 * 20.4mm, hole spacing 25mm, hole diameter 3mm
