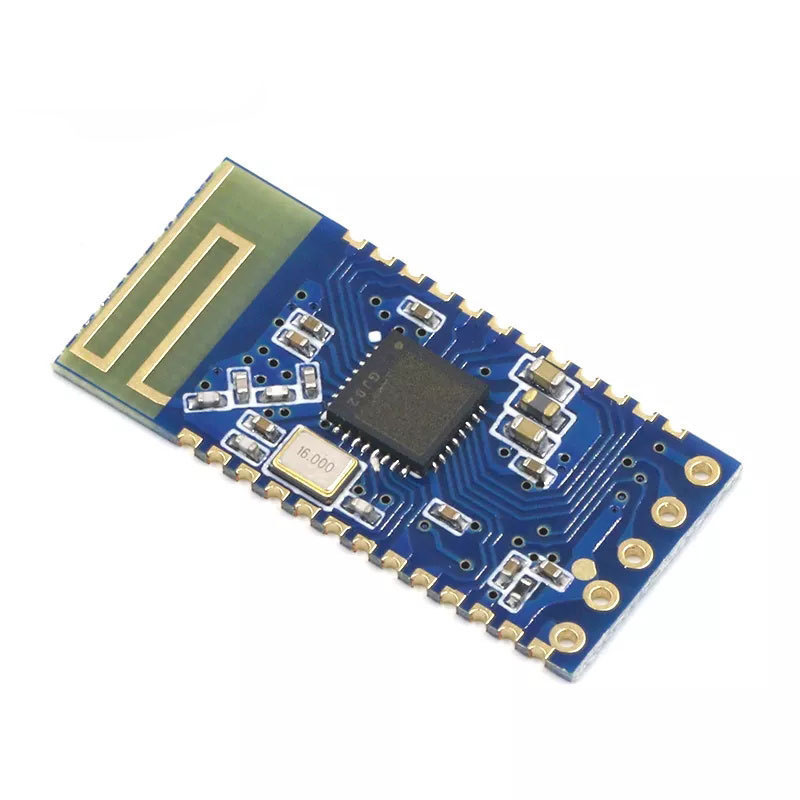

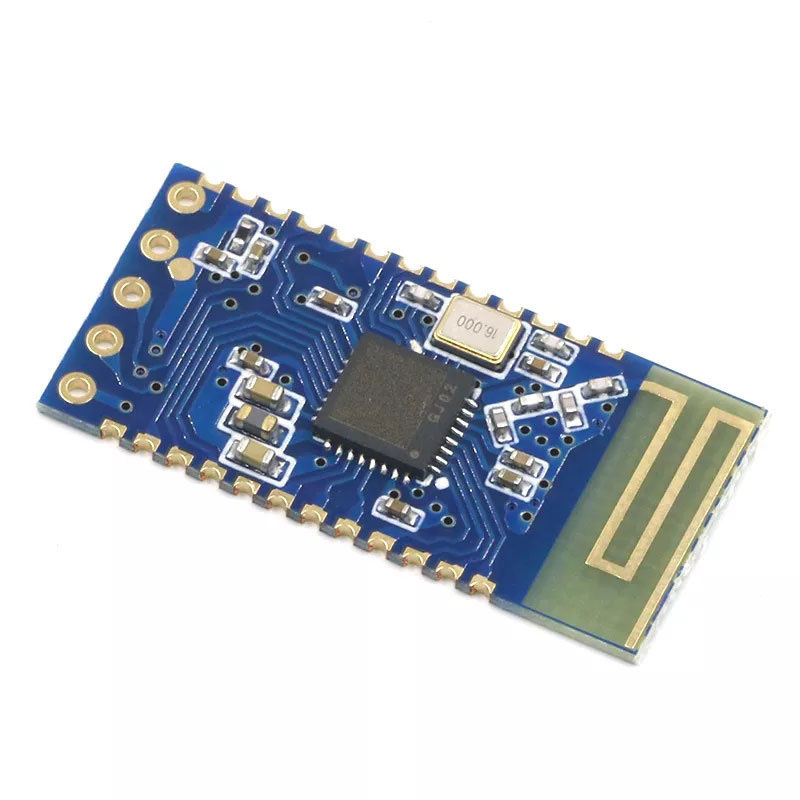

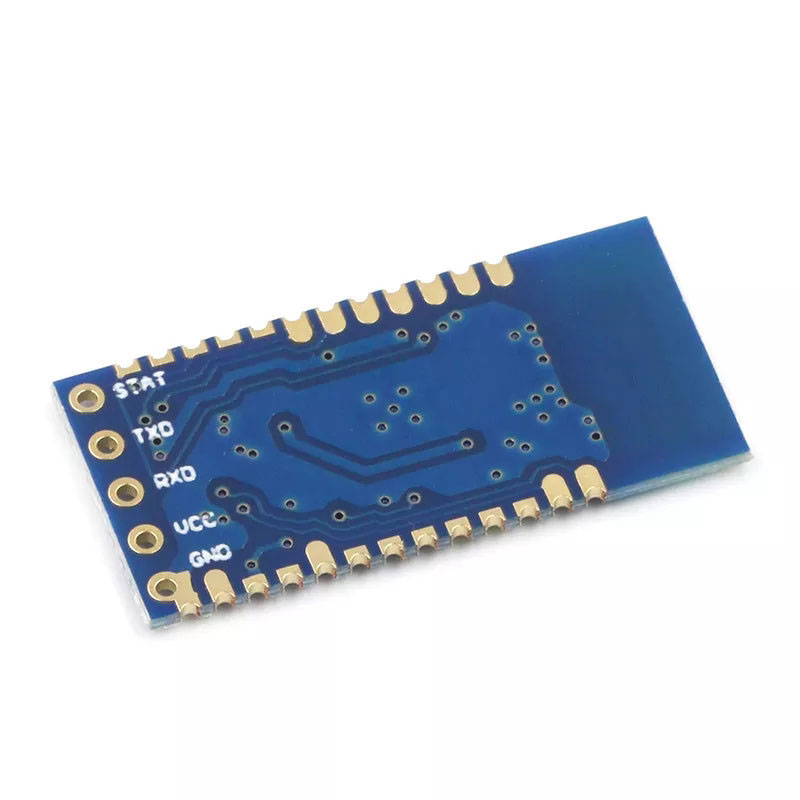

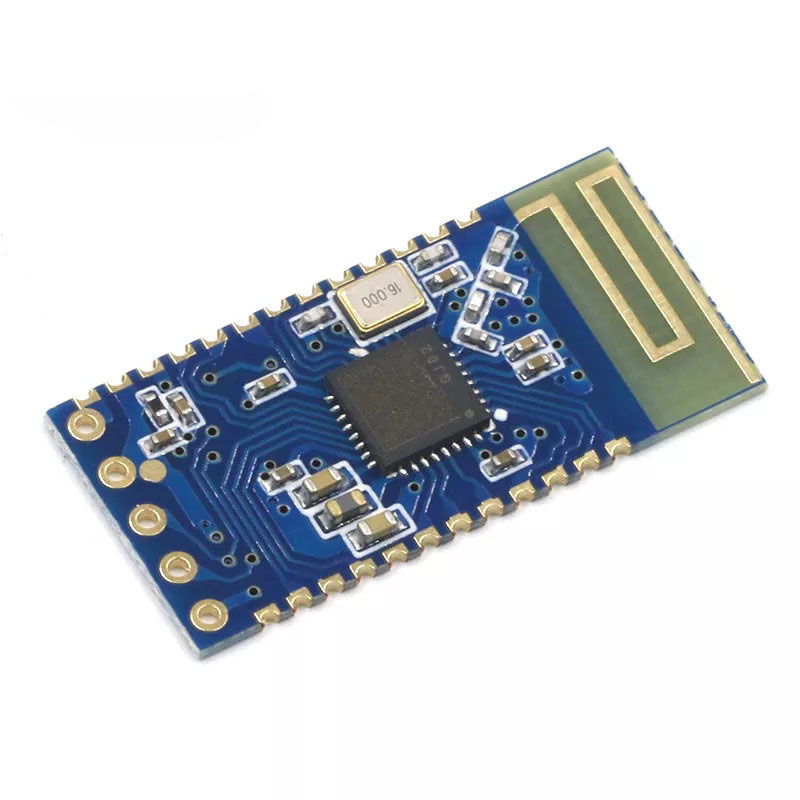

JDY-24M Bluetooth MESH Networking Module

Product Introduction:

The JDY-24M networking Bluetooth function supports master-slave transparent transmission, iBeacon, BLE probe, iBeacon detection, MESH networking, and a large number of MESH networking supports 65535 device networking. It adopts multi hop wireless anti-collision technology, and the networking communication speed supports 50mS to send 17 bytes of data. A single module supports routing nodes and terminal nodes, and routing nodes support data relay (not low power consumption), The terminal node supports low power consumption (automatic sleep after key wake-up and data transmission). Generally, JDY-24M networking only needs to configure the networking NETID and short circuit address, and the module will automatically network. When communicating with the APP, the networking module is equivalent to transparent transmission, which greatly facilitates users to develop apps that are compatible with old product apps.

Product Characteristics:

1: Support data transparent transmission with mobile phone (IOS, ANDROID) apps (operating current around 1mA)

2: Support module and module master-slave high-speed transparent transmission

3: Supports iBeacon functionality (ultra low power consumption)

4: Supports iBeacon probe function

5: Supports BLE Bluetooth probe function

6: Supports multi connection slave mode, which can connect to multiple phones and transmit transparently at the same time

7: Support Bluetooth MESH (networking serial data communication, output IO control, input button control)

8: MESH networking sends data to support reply and no reply communication
