Customized Requirements
- Quantity
-
-
- Product Name: TEMT6000 Ambient Light Sensor Analog Light Intensity Module Visible Light Sensor
- Item NO.: TEMT6000
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: Ambient Light Sensor , TEMT6000 , Analog Light Intensity Module , Visible Light Sensor
- Creation Time: 2024-04-16

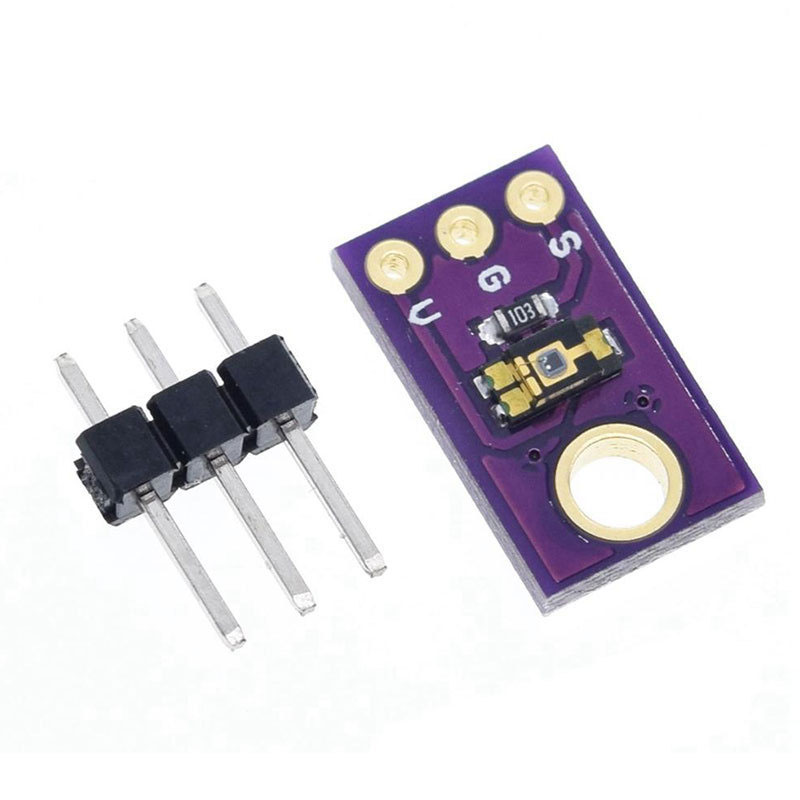

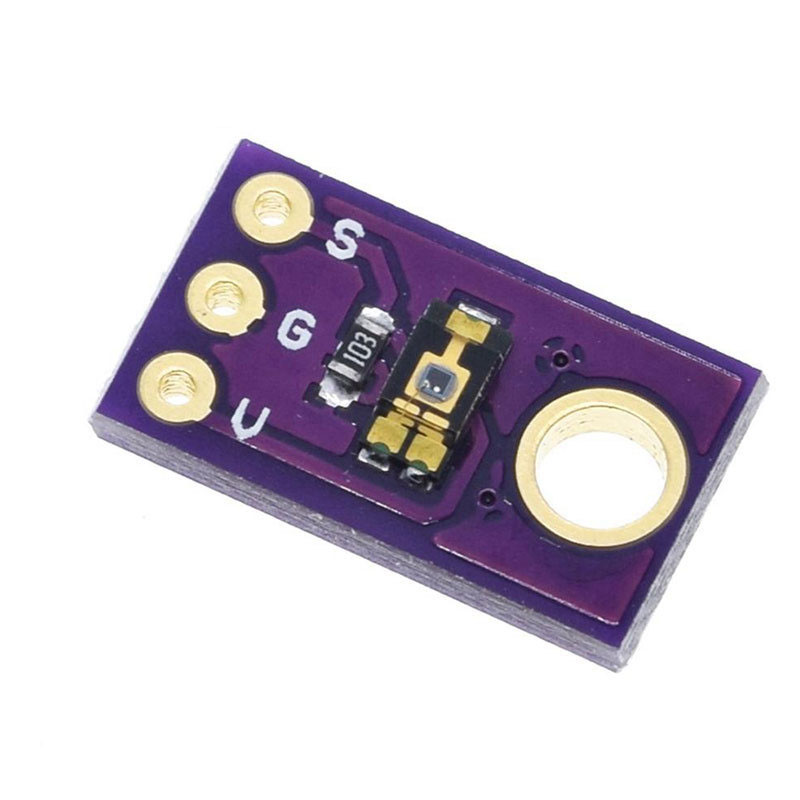

TEMT6000 Ambient Light Sensor
Product Features:
The sensitivity of the TEMT6000 sensor is 570nm, which has a wide semi sensitive angle of ± 60 degrees. Although the device is very sensitive to ambient light, it can resist the infrared (IR) spectrum, thus providing a higher visible spectral response similar to the "human eye".
The environmental light (visible light) sensor based on TEMT6000 has similar response characteristics to the visible light illuminance with the characteristics of human eyes, which can simulate the judgment of human on the intensity of environmental light, so as to facilitate the application of friendly interaction with people. It can be used for lighting control and screen backlight control. It is only sensitive to visible light and does not require additional filters.
Product Parameters:
●Product model: TEMT6000
●Sensitivity: 570nm
●Working voltage: DC3.3V~5V
●Operating temperature: - 40~85 ℃
●Illumination range: 1~1000 lux
●Output signal: analog voltage, 0~5V under 5V working voltage

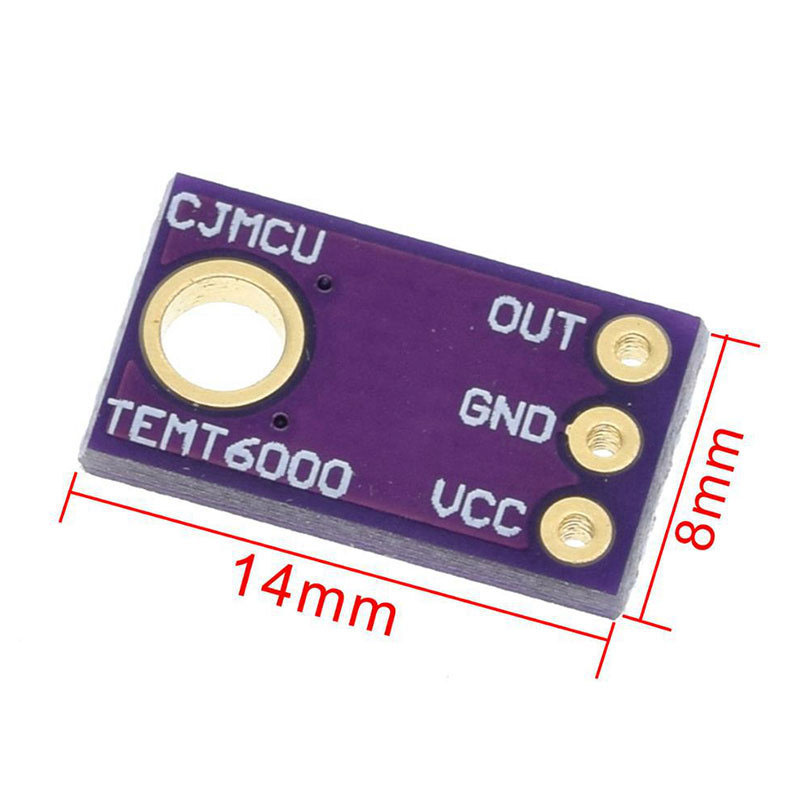

●Product size: 14mm * 8mm
Pin Description:
●VCC: positive pole of power supply
●GND: ground
●OUT: analog output
