JDY-67 Dual-mode Audio Bluetooth Module Audio Bluetooth SPP Bluetooth Module BLE Transparent Bluetooth ModuleItem NO.: JDY-67
-
Customized Requirements
- Quantity
-
-
- Product Name: JDY-67 Dual-mode Audio Bluetooth Module Audio Bluetooth SPP Bluetooth Module BLE Transparent Bluetooth Module
- Item NO.: JDY-67
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Wireless Module
- Tag: JDY-67 , Dual-mode Audio Bluetooth Module , SPP Bluetooth Module , Transparent Bluetooth Module
- Creation Time: 2024-05-11

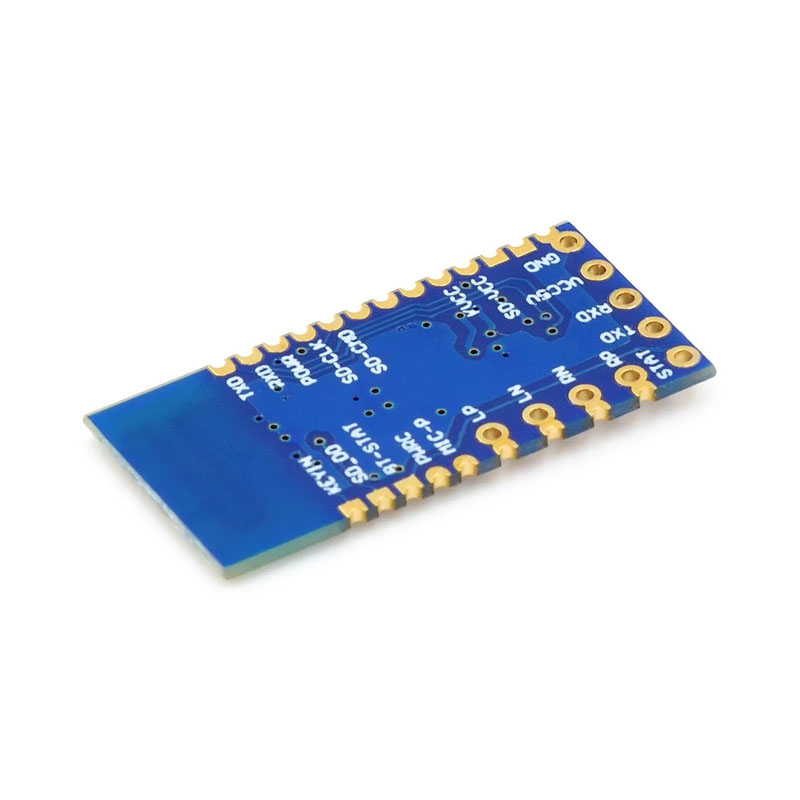

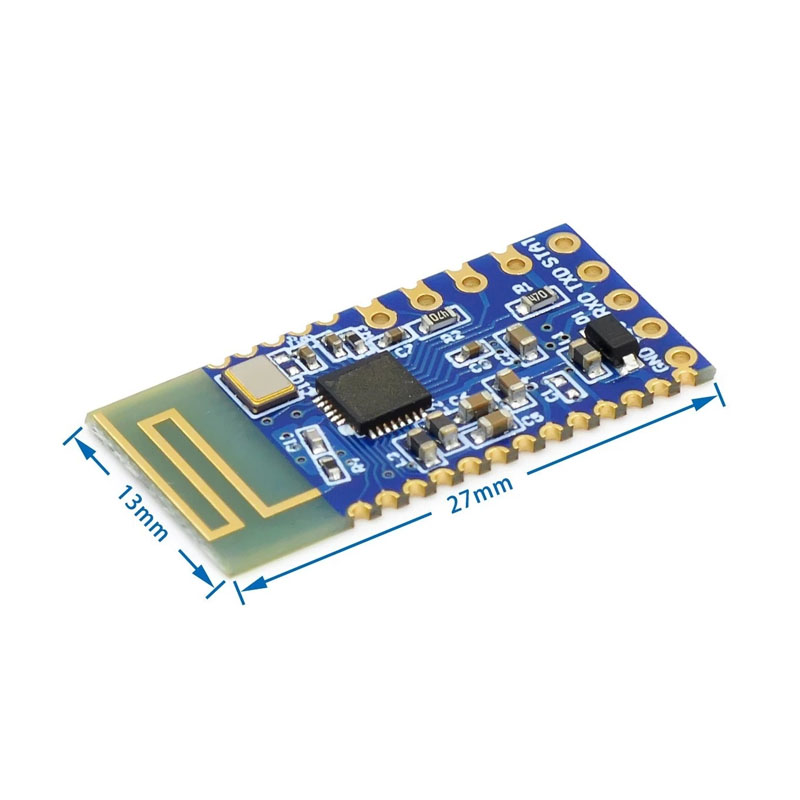

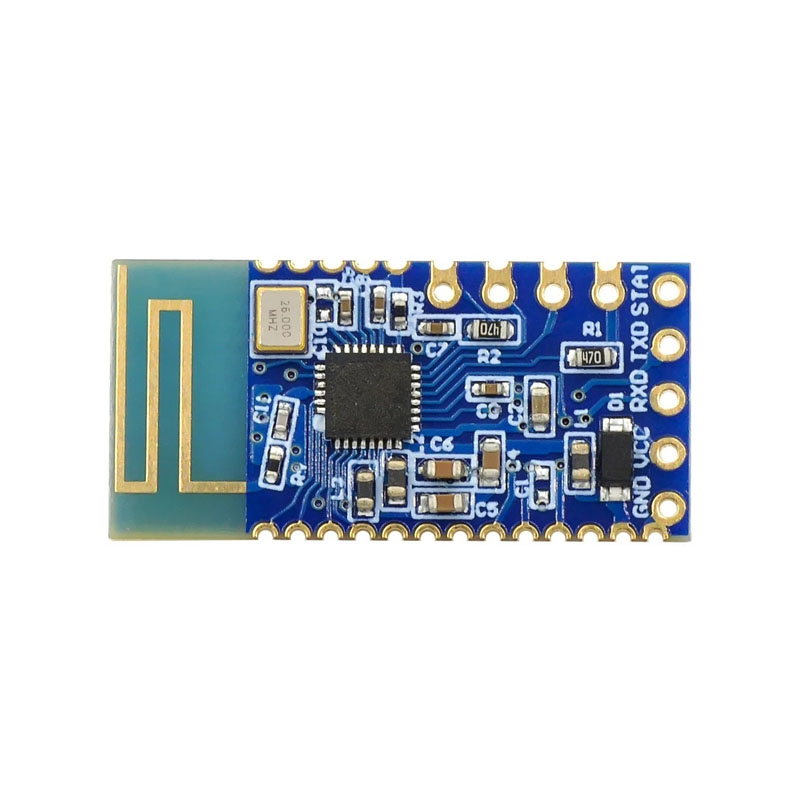

JDY-67 Dual-mode Audio Bluetooth Module
Product Introduction:
JDY-67 adopts the the third mock examination Bluetooth scheme design. It supports audio, BLE and SPP to work at the same time. It supports serial port command to set broadcast name, volume, top and bottom, SD and Bluetooth audio switching and other operations. It has obvious advantages.
JDY-67 supports Bluetooth audio+BLE+SPP mode, and can also be switched to MP3+BLE+SPP mode, making its application more widespread. Bluetooth audio+BLE mode can be applied to various Bluetooth speaker products, and BLE can be applied to various data communication products. The MP3+BLE mode can be applied to various voice toy products and advertising playback voice products. SPP supports transparent transmission with electric or ANDROID Bluetooth serial ports, and of course, BLE also supports transparent transmission with IOS and ANDROID. The JDY-67 function is very powerful.
Application scope:
1. Bluetooth BLE or SPP data transmission
2. Bluetooth speaker
3. Various Bluetooth audio or MP3 children's toy applications
4. Application of various voice prompt products
5. Various Bluetooth voice massage products
Module parameters:
Model: JDY-67
Bluetooth version: Bluetooth V4.2
Supports Bluetooth protocols: HFPV1.7, A2DPV1.2, AVRCPV1.5, AVCTPV1.2, AVDTPV1.2, Low Energy
Working voltage: DC3.3-4.2V
Unconnected broadcast status current: 3.5mA
Working current after connection: 20MA
Deep sleep current: 3uA
Working temperature: -40 ℃ -80 ℃
Transmission distance: 15m
Sensitivity: -87dbm
SMT temperature:<260 ℃
