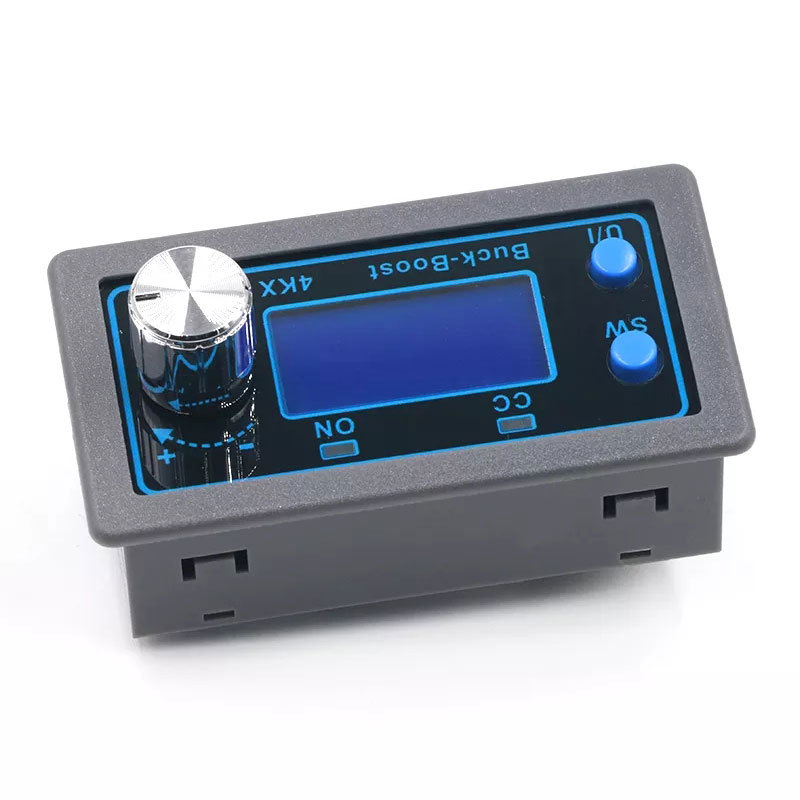

ZK-4KX Programmable Digital Control Buck-Boost DC Adjustable Regulated Power DIY CV and CC Solar Charging Meter ShellItem NO.: ZK-4KX

ZK-4KX Programmable Digital Control Buck Boost Module

Product Highlights:

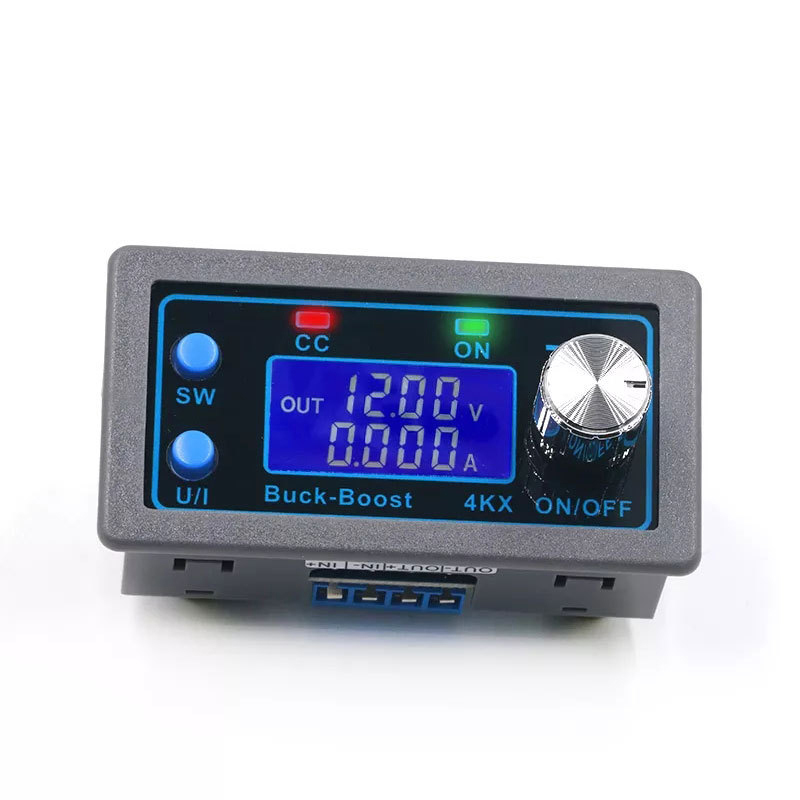

1. LCD can display input/output voltage, output current/output power/output capacity/output time;

2. CNC adjustment, fast, can increase or decrease voltage, output voltage can be adjusted at any time from 0.5-30V, and current limit can be adjusted at any time from 0-4A;

3. Input end anti reverse connection protection, reverse connection will not burn out;

4. The output end is anti backflow, and there is no need to add an additional anti backflow tube when charging the battery;

5. Module default on/off can be set;

6. Multiple software protection mechanisms, with adjustable protection thresholds. When the working parameters of the module exceed the protection threshold, the output is automatically turned off.

7. Small output ripple with π type filtering;

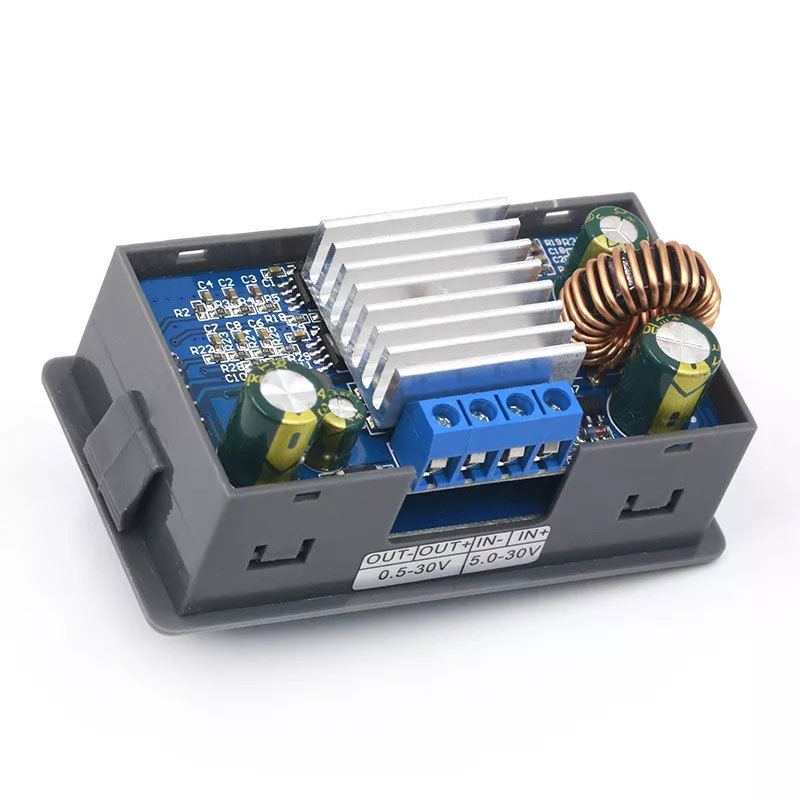

8. Thickened heat sink.

Product Parameters:

● Input voltage: 5.0-30V

● Output voltage: 0.5-30V

● Output current: able to work stably at 3A for a long time, with a capacity of 4A under enhanced heat dissipation

● Output power: 35W natural heat dissipation, 50W enhanced heat dissipation

● Voltage display resolution: 0.01V

● Current display resolution: 0.001A

● Conversion efficiency: around 88%

● Soft start: Yes (high power modules with load may fail during startup)

● Protection mechanism:

Input anti reverse connection;

Output anti backflow;

Input undervoltage protection (4.8-30V adjustable, default 4.8V)

Output overvoltage protection (0.5-31V adjustable, default 31V)

Output overcurrent protection (0-4.1A adjustable, default 4.1A)

Output Overpower Protection (0-50W adjustable, default 50W)

Over temperature protection (adjustable from 80 to 110 ℃, default to 110 ℃)

Time out protection (adjustable from 0 to 100h, default off)

Overcapacity protection (adjustable from 0 to 60Ah, default off)

● Operating frequency: 180KHZ

● Size: length * width * height 79mm * 43mm * 26mm

● Weight: 92g (including packaging)
