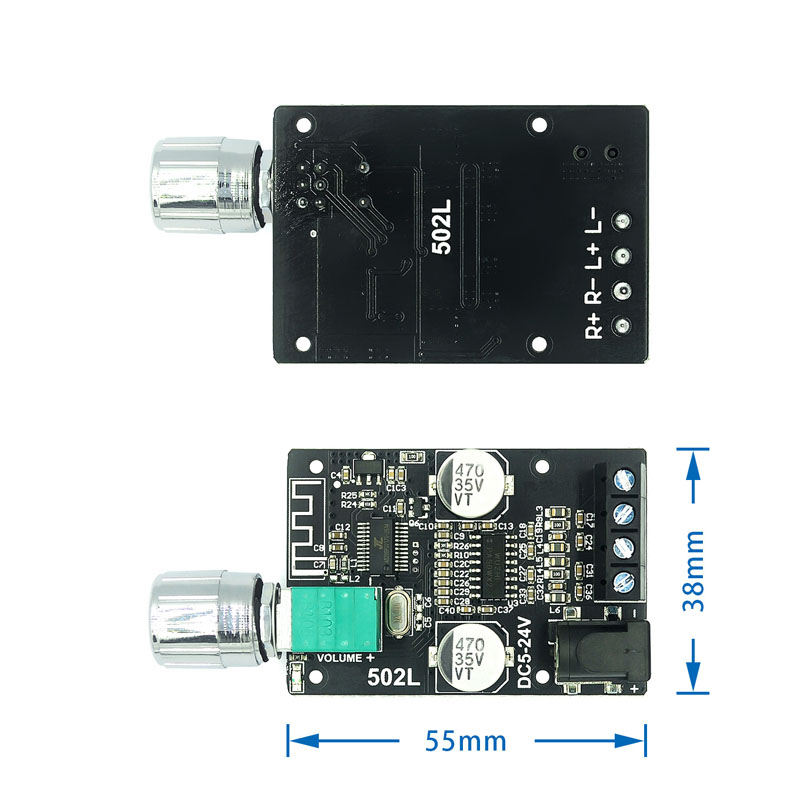

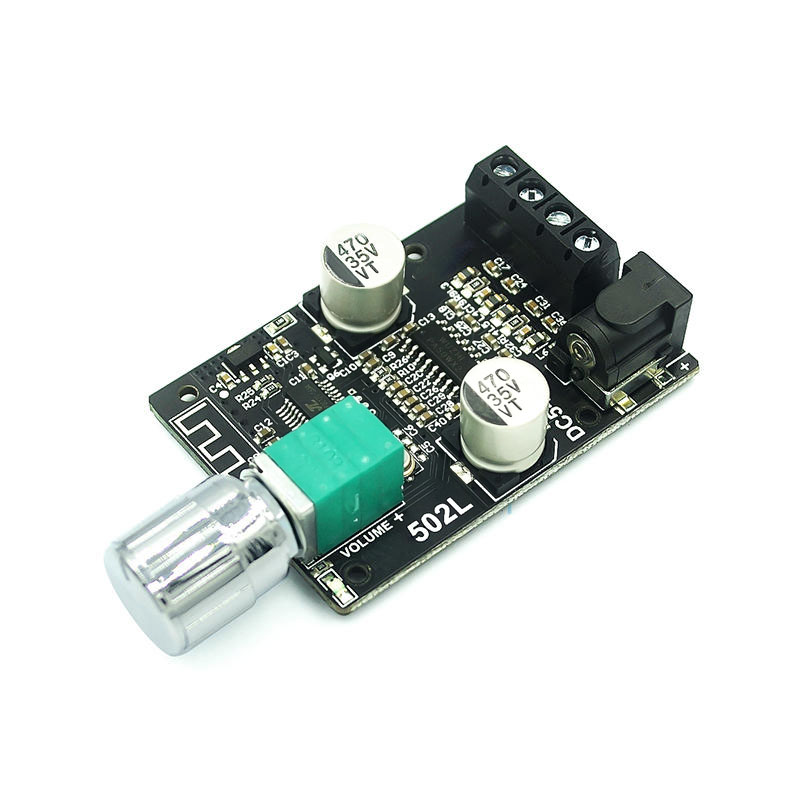

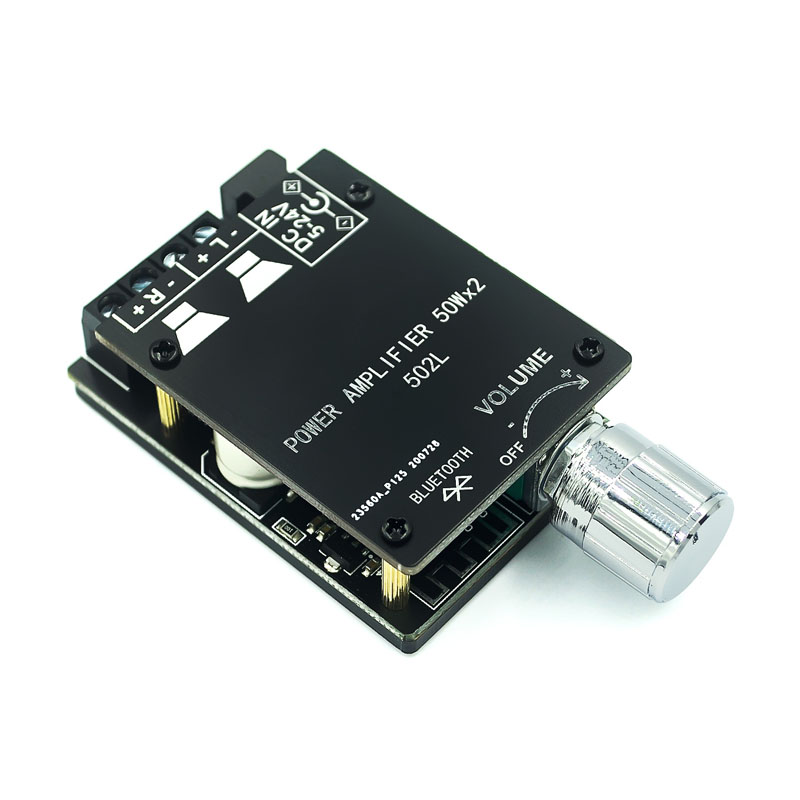

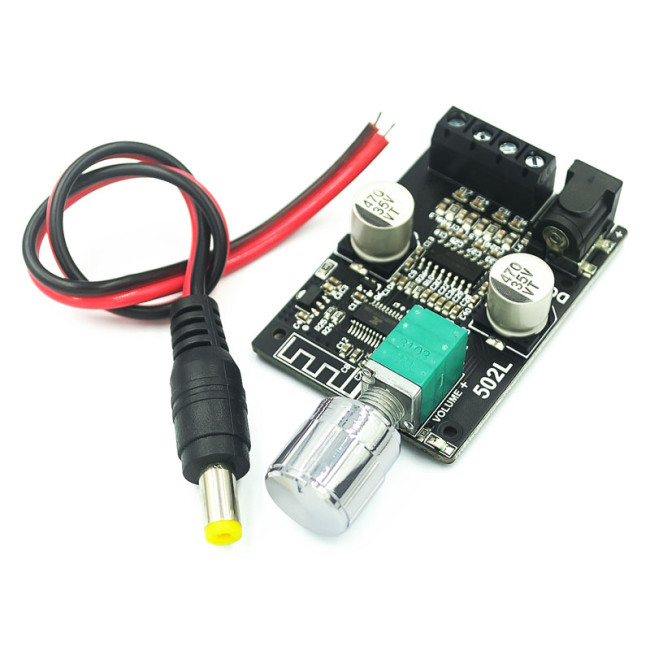

  • ZK-502L Bluetooth 5.0 Digital Amplifier Board



    Product parameters:



    Product name: Mini version 2x50W Bluetooth digital amplifier board

    Product model: ZK-502L

    Adapted power supply voltage: 5-24V (optional adapters such as 9V/12V/15V18V24V, recommended high voltage for high-power)

    Adapted speaker: 30W~200W, 4 Ω, 8 Ω

    Channel count: Left and right dual channels (stereo)

    Bluetooth version: 5.0

    Bluetooth transmission distance: 15 meters (unobstructed)

    Protection mechanism: self recovery overheating protection, self recovery short circuit protection



    Tip: Only with sufficient audio input and sufficient power supply voltage/current can there be sufficient output power. Higher power supply voltage will result in higher relative power, and speakers with different impedances will have different output power. When the voltage and current are sufficient, the larger the number of ohms of the speaker, the smaller the relative sound power. Please pay attention!



    Power supply voltage:

    12V -8 ohm speaker/12W (left channel)+12W (right channel), 4 ohm speaker/20W+20W

    15V -8 ohms/18+18W, 4 ohms/greater than 30+30W

    19V -8 ohms/32+32W, 4 ohms/greater than 45+45W

    24V -8 ohms/38+38W, 4 ohms/greater than 50+50W
