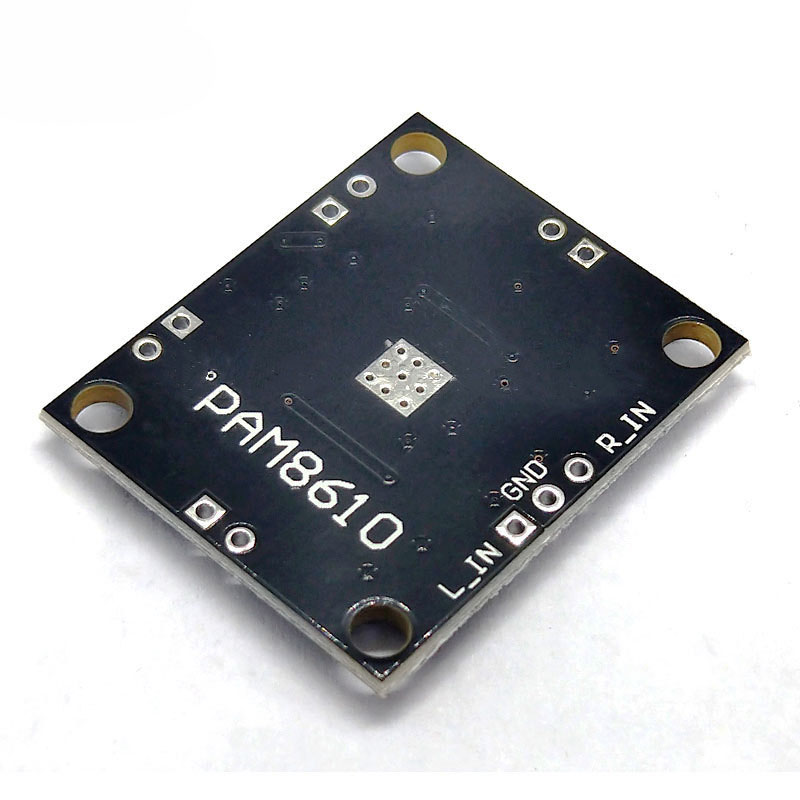

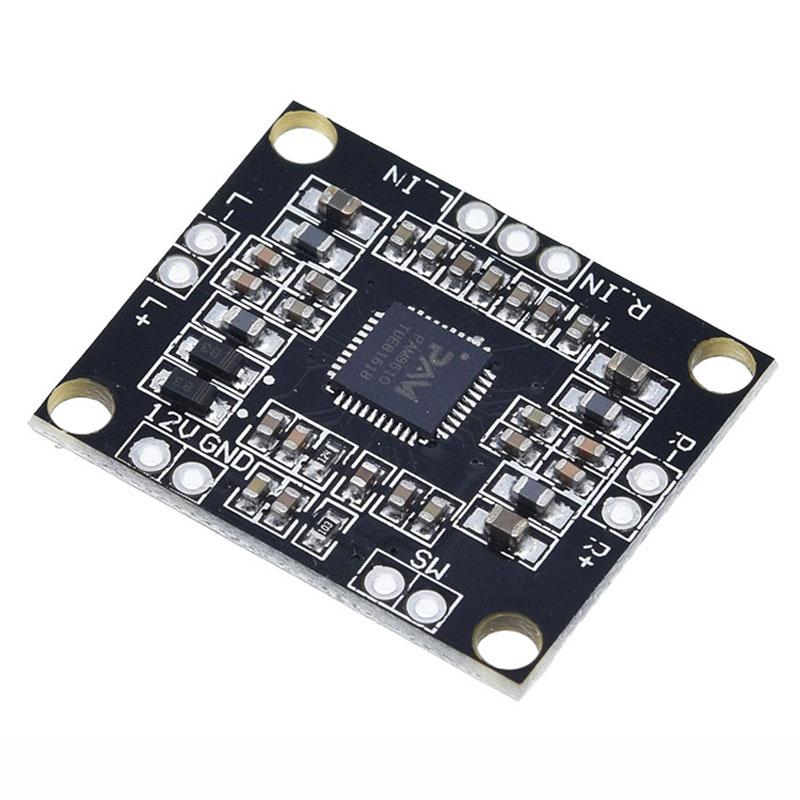

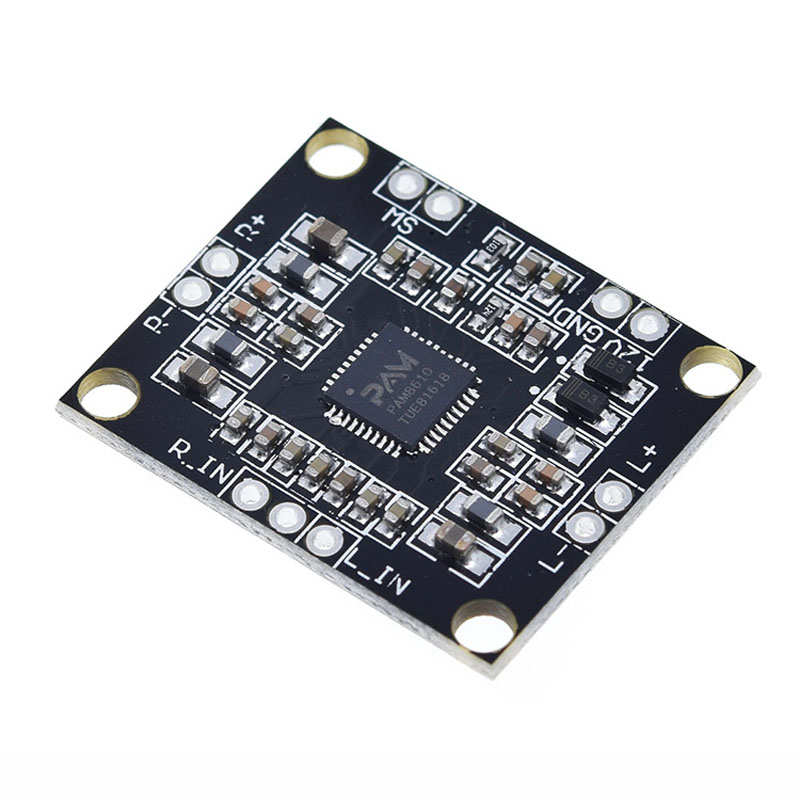

  • PAM8610 Digital Power Amplifier Board



    Product Information:



    This power amplifier board is designed with the official standard circuit, and the chip selection is the imported original Class D power amplifier chip. If this chip is strong, you can check its information.



    Good product chips should be shared with the majority of music lovers, which is our consistent philosophy! The power amplifier has ultra-high efficiency and super power. It can output 10W+10W power under 12V power supply. The chip does not need heat sink, but also has protection functions such as overheating and overcurrent, which can be said to be very powerful.



    This board has the switch function. Short circuit the SW and turn off the power amplifier.



    Product Parameters:



    ● Product name: audio amplifier board

    ● Specification and model: XH-M181

    ● Chip model: PAM8610

    ● Working mode: Class D (PWM modulation type)

    ● Power supply range: DC 6V~15V (self protection)

    ● Recommended voltage: DC 12V2A

    ● Frequency response: 20HZ-15KHZ

    ● Channel type: dual channel

    ● Static current: 20mA (DC 12V)

    ● Signal to noise ratio: 90%

    ● Recommended speaker: 10~100W

    ● Input impedance: 15K

    ● Output impedance: 4~8 Ω

    ● Output power: 10W * 2 (8 Ω) 15W * 2 (4 Ω)

    ● Heat dissipation volume: no heat dissipation is required

    ● Harmonic distortion: < 0.1%

    ● Appearance dimension: 30mm * 25mm * 2.5mm

    ● Net weight: 3g
