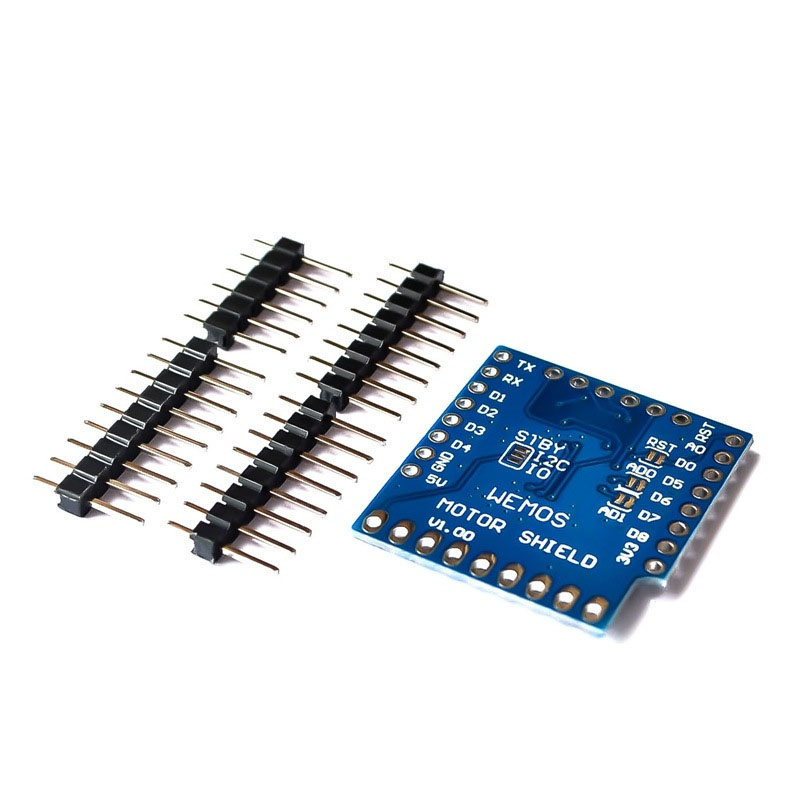

- Product Name: Motor Drive Module WeMos D1 mini I2C Dual Motor Driver TB6612FNG V1.0.0
- Item NO.: D1-TB6612
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Development Board
- Tag: Motor Drive Module , TB6612FNG , WeMos D1 mini , Dual Motor Driver
- Creation Time: 2024-05-05
D1 mini TB6612 Motor Drive Module
Features:
1. I2C interface; I2C control or IO enable;
2. Power supply voltage: VM=15V;
3. Output current: Iout=1.2A (average)/3.2A (peak);
4. The system power supply is independent of the motor power supply, with standby control mode, flexible control and low power consumption;
5. Support CW (clockwise)/CCW (counterclockwise)/acceleration/deceleration/constant speed/short braking/stop and other control modes;
Pin Description:
● VM: motor power supply+(15V)
● GND: motor power supply-
● A1 A2: Motor A
● B1 B2: Motor B
● S: standby control port (in IO mode)
● DIO/CLK: non-control port, new stm32 program;
Stanby Control Mode Selection:
● Select I2C mode: use I2C protocol to control STBY of TB6612
● Select IO mode: use "S" pin to control STBY of TB6612
● Reset mode selection
● Short circuit: reset with d1 mini (reset when powered on or press the reset button of d1 mini)
● Off: reset by "DTR" pin
