Compatible with Nano V3.0 CH340 Improved Atmega328P USB to TTL with Data CableItem NO.: Nano V3.0 CH340
-
Customized Requirements
- Quantity
-
-
- Product Name: Compatible with Nano V3.0 CH340 Improved Atmega328P USB to TTL with Data Cable
- Item NO.: Nano V3.0 CH340
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Development Board
- Tag: CH340 , NANO V3.0 , ATmega328P , With Data Cable , Improved , USB to TTL
- Creation Time: 2024-03-21

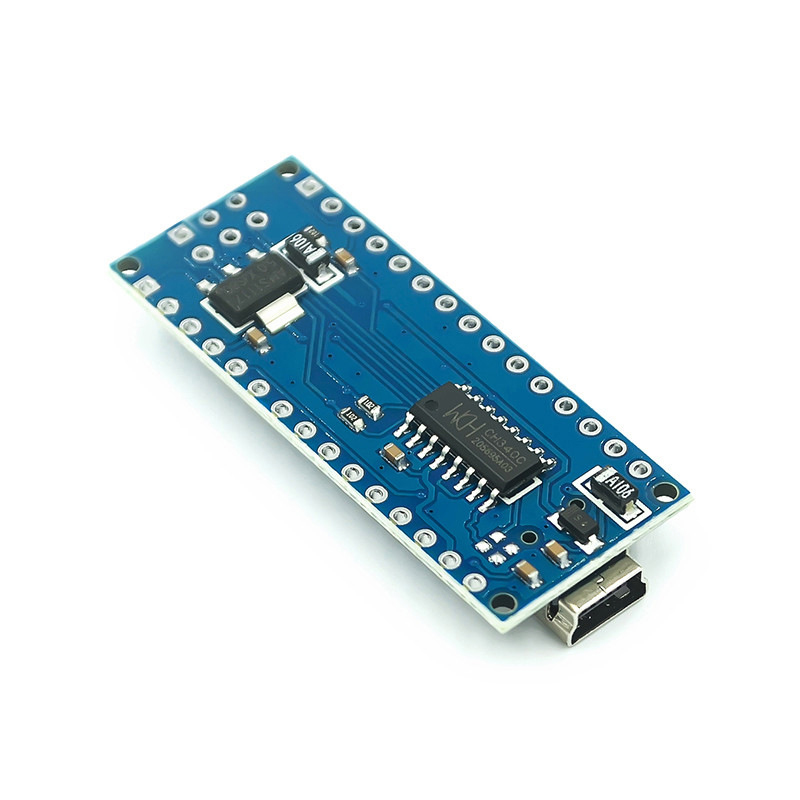

Nano V3.0 CH340 Improved Atmega328P
Product Description:
Nano is an ultra small Simple I/O platform based on open source code. Compared with the previous USB version of Arduino Diecimila, Nano has a significant advantage in terms of size, which means it can be used to develop electronic products that need to run independently and have interactive effects; It can also be used to develop interactive works that are connected to computers and collaborate with software such as Flash, Processing, Max/Msp, PD, VVVV, etc.
This module modifies Ft232RL to CH340G and can be used on Windows 8, Windows 8.1, and Windows 10 systems. For Windows 7 or above systems, simply connect to the internet and the system can automatically search for drivers without the need for users to download them.
Technical parameters of Nano:
1. 12 digital input/output ports D2-D13.
2. Eight analog input ports A0-A7.
3. 1 pair of TTL level serial port RX/TX.
4. Six PWM ports, D3, D5, D6, D9, D10, D11.
5. Using Atmel Atmega328P-AU microcontroller.
6. Support USB download and power supply.
7. Support external 3.3V-12V DC power supply.
8. Support lithium battery and 9V battery power supply.
9. Support ISP download.
