PAM8406 Digital Power Amplifier Board With Volume Potentiometer Stereo Noiseless Power Amplifier 5Wx2Item NO.: PAM8406 5Wx2
-
Customized Requirements
- Quantity
-
-
- Product Name: PAM8406 Digital Power Amplifier Board With Volume Potentiometer Stereo Noiseless Power Amplifier 5Wx2
- Item NO.: PAM8406 5Wx2
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Audio Amplifier
- Tag: Stereo , Digital Power Amplifier Board , PAM8406 , With Volume Potentiometer , 5Wx2
- Creation Time: 2024-03-27

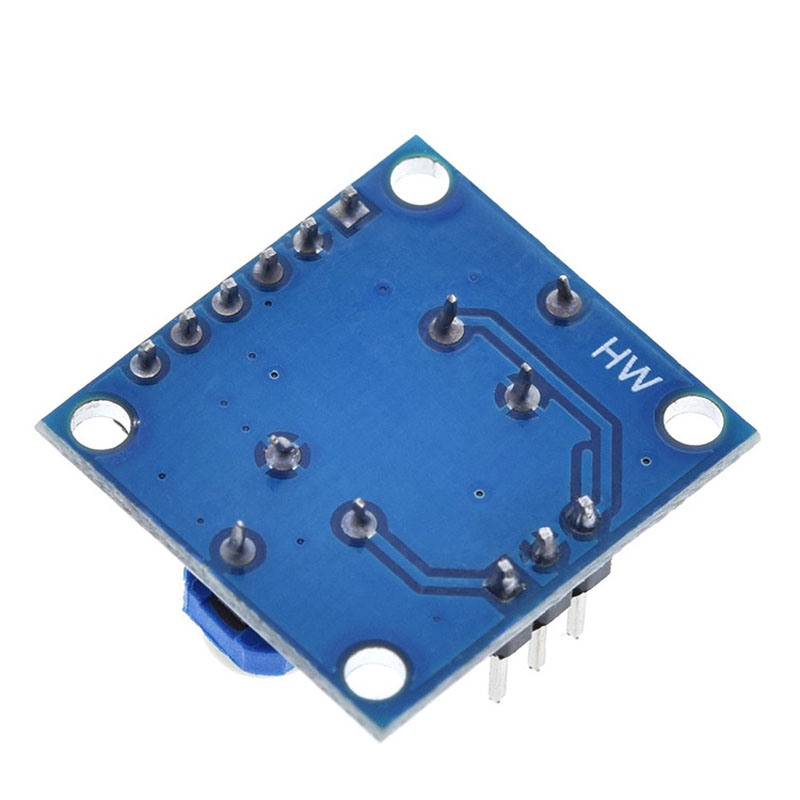

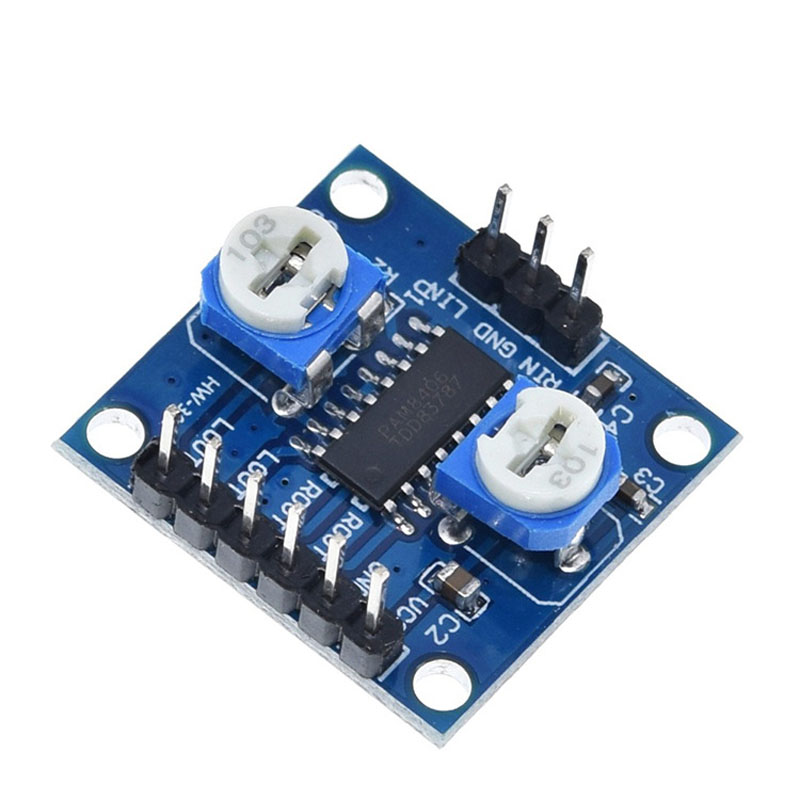

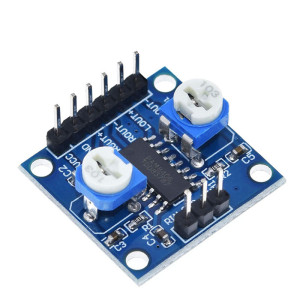

PAM8406 Digital Amplifier Board
With Volume Potentiometer
Product Information:

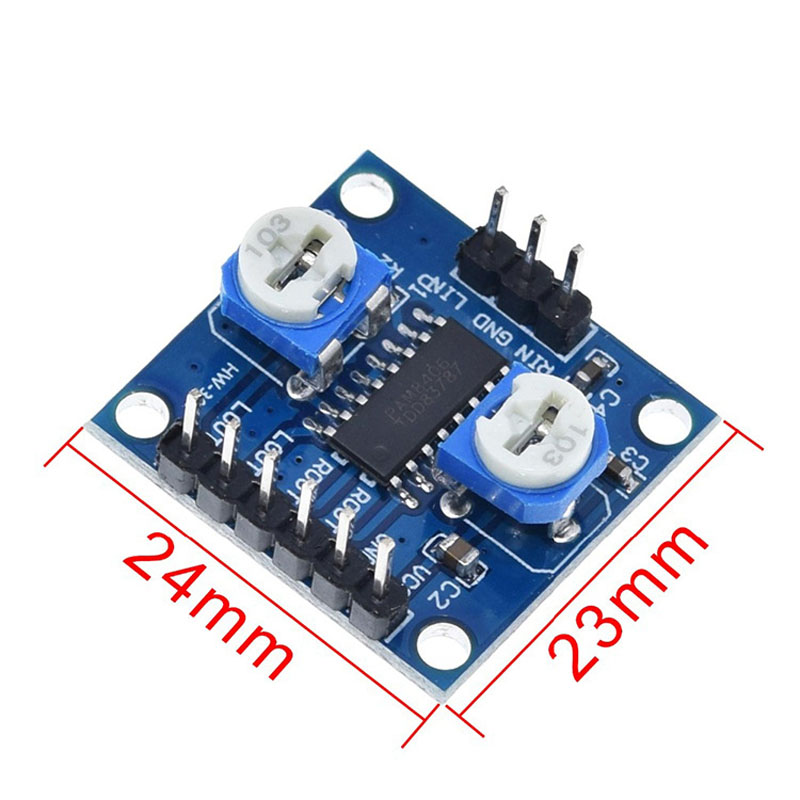

1. Ultramicro volume: 24 * 23mm
2. Excellent noise suppression. When the input audio is not connected, the ear is close to the speaker and no noise can be heard
3. Dual channel stereo, 5V power supply can output 5W+5W power, can directly drive 4 Ω and 8 Ω small speakers, with large output power, sufficient energy, good sound quality, and volume adjustment of left and right channels.
4. The unique Class D digital power board without LC filtering can directly use the USB power supply of the computer.
5. Double panel wiring, properly solve the ground potential balance and crosstalk between sound channels caused by wiring
6. Ultra micro design, which can be easily placed in the internal small space of various digital products, with ultra-high amplification efficiency.
7. The whole plate is welded by machine, and the welding quality is comparable to that of manual soldering iron!
8. The rated working voltage is 2.5-5V, and the limit working voltage is 5.5V.
Note: The "negative" terminals of the left and right audio channels cannot be connected together, otherwise the IC will burn, and the horn (load) should be connected before power on.
