Pure Sine Wave Inverter Drive Board EGS002 EG8010 IR2110 Drive ModuleItem NO.: MK00522

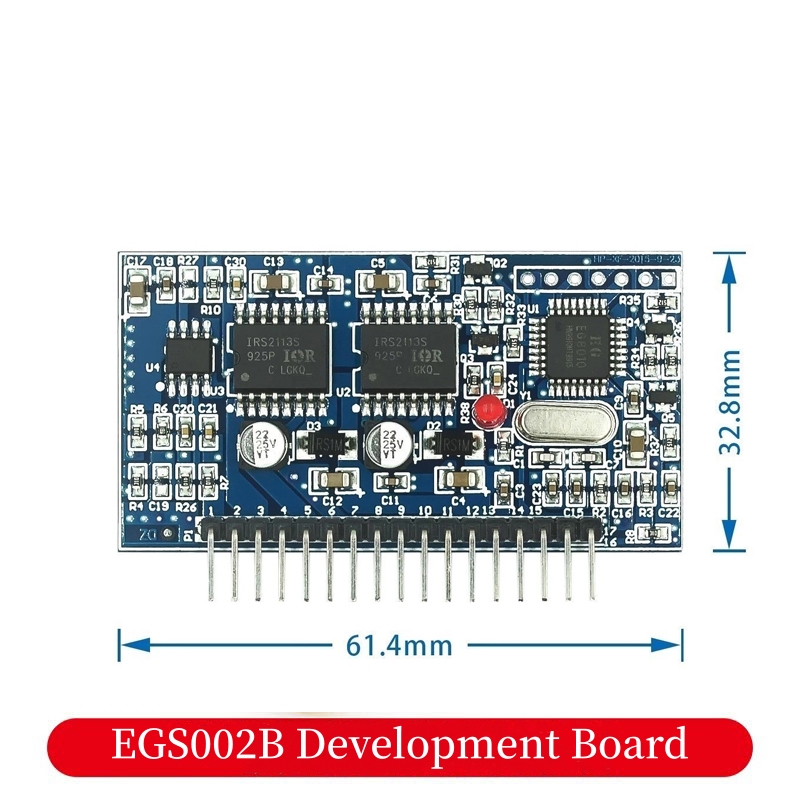

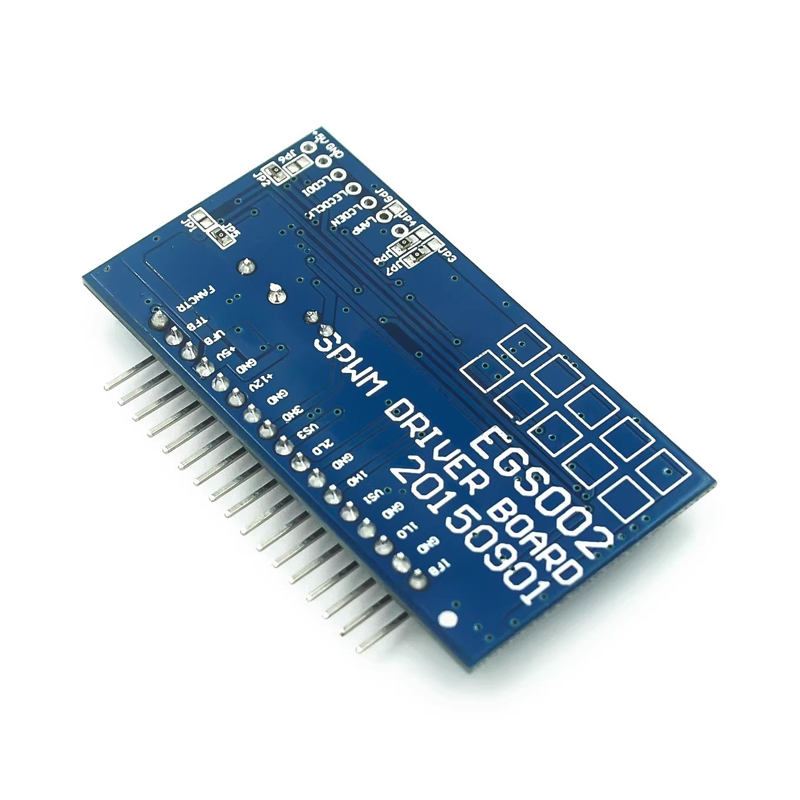

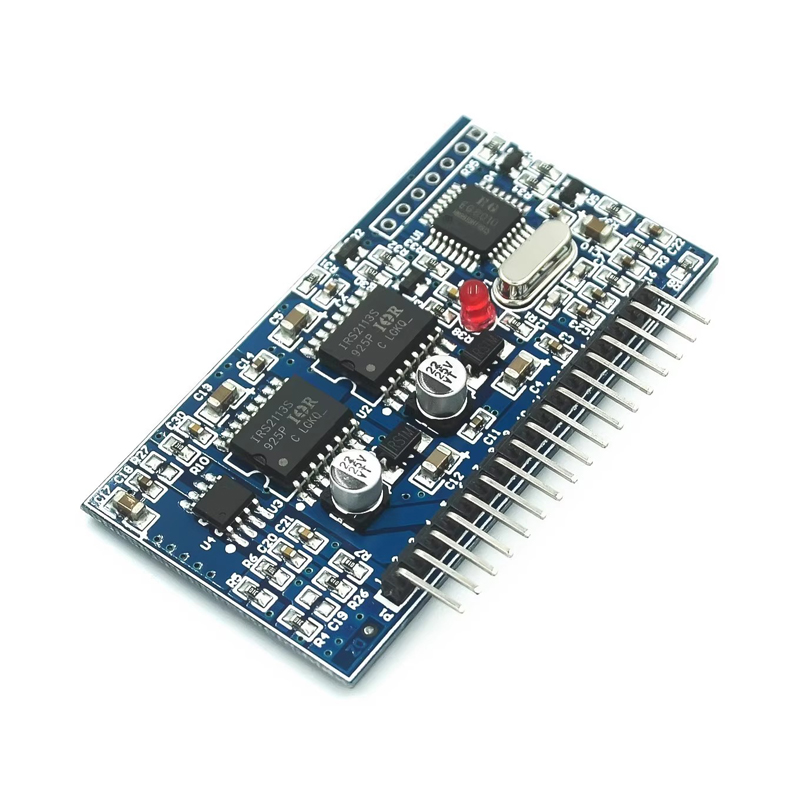

Pure Sine Wave Inverter Drive Board EGS002

Product Description:

EG8010 is a digital and fully functional pure sine wave inverter generator chip with built-in dead zone control. It is applied to the DC-DC-AC two-stage power conversion architecture or the DC-AC single-stage power frequency transformer boost conversion architecture, and is externally connected to a 12MHz crystal oscillator. It can achieve high-precision, low distortion, and harmonic pure sine wave 50Hz or 60Hz inverter dedicated chip. The chip adopts CMOS technology and integrates functions such as SPWM sine generator, dead time control circuit, amplitude factor multiplier, soft start circuit, protection circuit, RS232 serial communication interface, and 12832 serial LCD driver module.

Product features:

*5V single power supply

*Pin settings: 4 types of pure sine wave output frequencies: 50Hz Pure sine wave fixed frequency 60Hz Pure sine wave fixed frequency 0-100Hz Pure sine wave frequency adjustable 0-400Hz Pure sine wave frequency adjustable

*Unipolar and bipolar modulation methods

*Equipped with dead zone control, with four types of pin settings: 300nS dead zone time 500nS dead zone time 1.0uS dead zone time 1.5uS dead zone time

*External 12MHz crystal oscillator

*PWM carrier frequency 23.4KHz

*Real time processing of voltage, current, and temperature feedback

*Overvoltage, undervoltage, overcurrent, and overheat protection functions

*Response time for pin setting soft start mode 1S

*Set output voltage, frequency, and other parameters for serial communication

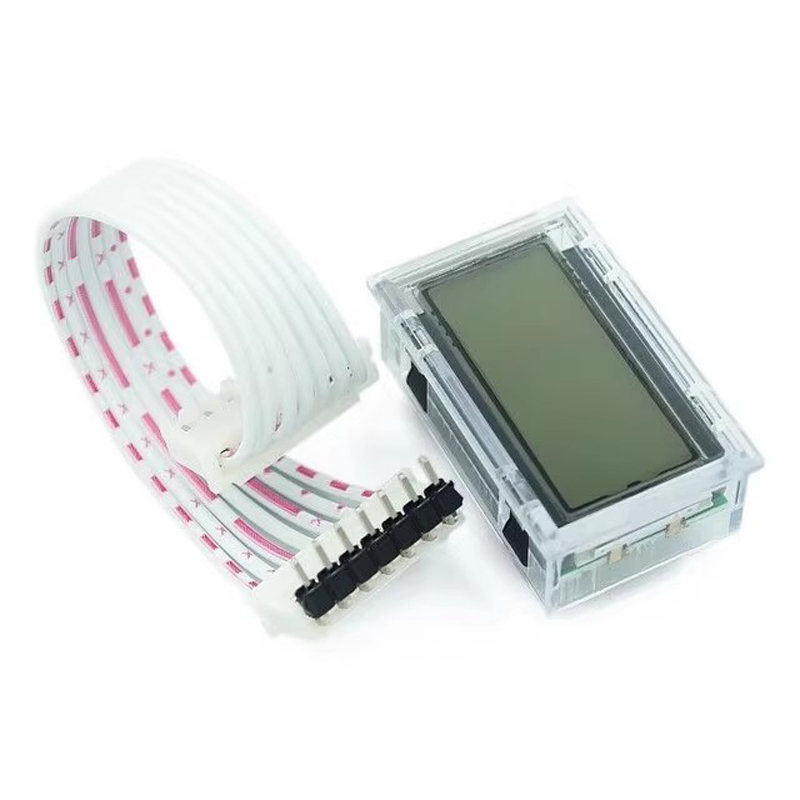

*External serial port 128 * 32 LCD display module displays information such as voltage, frequency, temperature, and current of the inverter

*Modify the corresponding functions or parameters according to the customer's application situation provided by Yijing Microelectronics Company

Application field:

*Single phase pure sine wave inverter

*Photovoltaic power generation inverter

*Wind power inverter

*Uninterruptible Power Supply UPS System

*Digital generator system

*Intermediate frequency power supply

*Single-phase motor speed controller

*Single-phase frequency converter

*Sine wave dimmer

*Sine wave voltage regulator

*Sine wave generator

*Wind power inverter

*Uninterruptible Power Supply UPS System

*Digital generator system

*Intermediate frequency power supply

*Single-phase motor speed controller

*Single-phase frequency converter

*Sine wave dimmer

*Sine wave voltage regulator

*Sine wave generator
