Mega2560 Pro ATmega2560-16AU USB CH340G Intelligent Electronic Development Board MICRO TYPE-C interfaceItem NO.: Mega2560 Pro
-
Customized Requirements
- Quantity
-
-
- Product Name: Mega2560 Pro ATmega2560-16AU USB CH340G Intelligent Electronic Development Board MICRO TYPE-C interface
- Item NO.: Mega2560 Pro
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Development Board
- Tag: Development Board , Mega2560 , Pro , ATmega2560-16AU , CH340G , MICRO , TYPE-C
- Creation Time: 2024-03-21
ATmega2560 Development Board
Product Information:

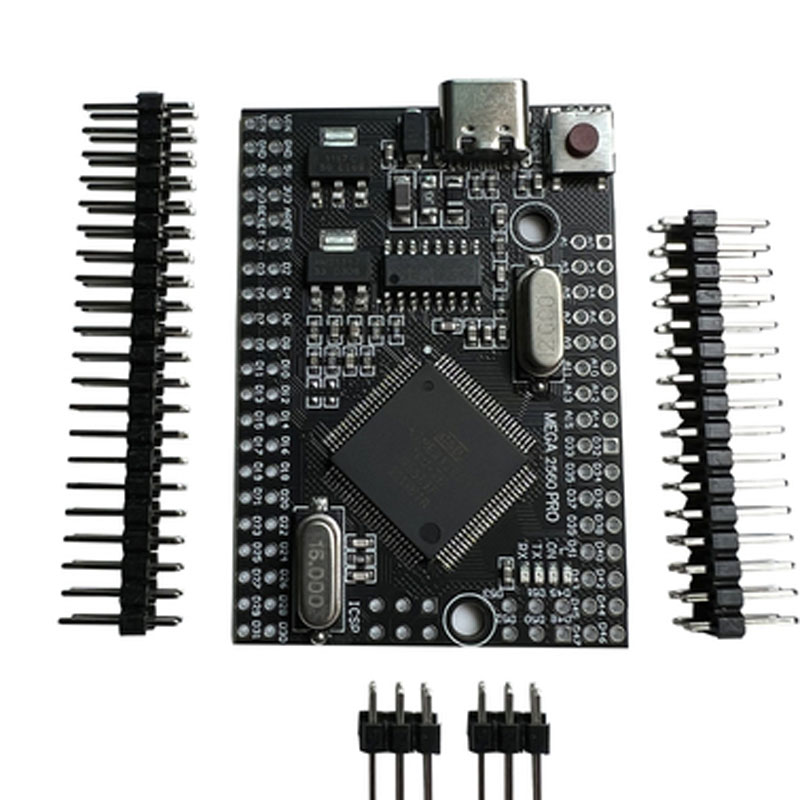

Embedded version Mega 2560 CH340G/ATmega2560- compatible with Mega 2560 motherboard. Built based on Atmel ATmega2560 microcontroller and USB-UART interface chip CH340G.

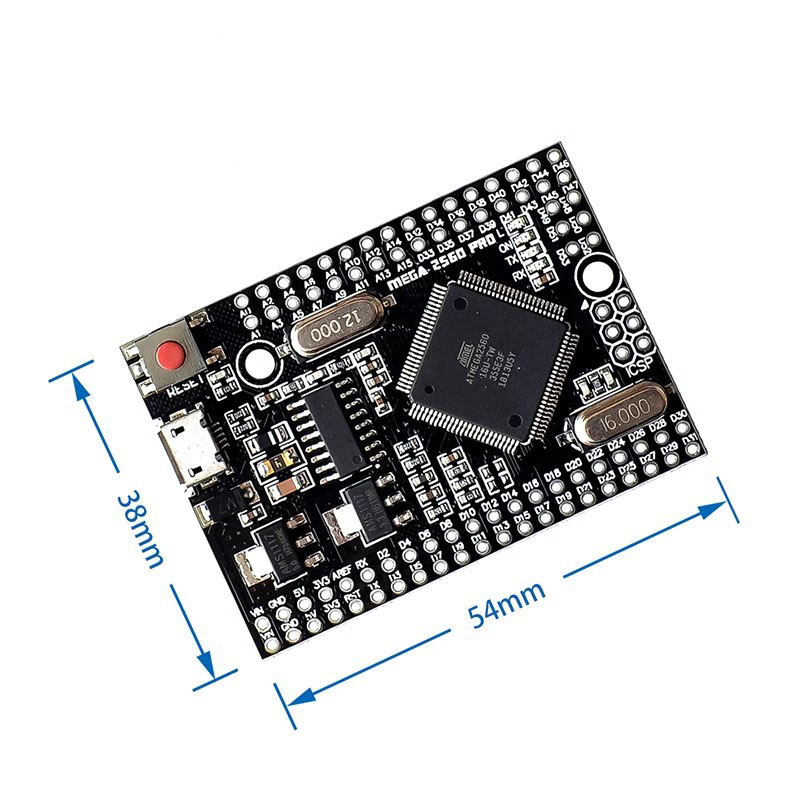

The circuit board has a compact size of 38x55mm. This is a great solution to make your final project on a welded prototype board.
The motherboard function is similar to Arduno Mega 2560. It is an embedded motherboard, but it is also stable and uses the original chip ATmega2560 (16 MHz).
The board uses the chip CH340G as the converter UART USB. When working at a frequency of 12Mhz, provide stable data exchange results (requiring the installation of drivers to the computer).
Mega PRO (embedded) 2560 CH340G/ATmega2560- connects to a computer through a microUSB cable (suitable for almost all Android smartphones).
You can power the circuit board or pins through the MicroUSB connector. The voltage regulator (LDO) can handle input voltages ranging from 6V to 9V (peak 18V) DC. The output current is 5V - approximately 800mA, 3.3V - approximately 800mA (please note that the higher the input voltage, the lower the output current). This will provide reliable motivation for most of your initial projects.
